#include <AcGiMaterialTraits.h>

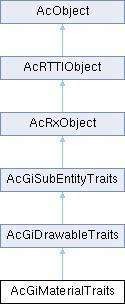

Inheritance diagram for AcGiMaterialTraits:

Public Types
enum	ChannelFlags { kNone = 0x00000 , kUseDiffuse = 0x00001 , kUseSpecular = 0x00002 , kUseReflection = 0x00004 , kUseOpacity = 0x00008 , kUseBump = 0x00010 , kUseRefraction = 0x00020 , kUseAll }

enum	IlluminationModel { kBlinnShader = 0 , kMetalShader }

enum	Mode { kRealistic = 0 , kAdvanced }

Public Types inherited from AcGiSubEntityTraits
enum	DrawFlags { kNoDrawFlags = 0x0000 , kDrawBackfaces = 0x0001 , kDrawHatchGroup = 0x0002 , kDrawFrontfacesOnly = 0x0004 , kDrawGradientFill = 0x0008 , kDrawSolidFill = 0x0010 , kDrawNoLineWeight = 0x0020 , kDrawNoOptimization = 0x0040 , kDrawNoPlotstyle = 0x0080 , kDrawFillTextBoundaryStart = 0x0100 , kDrawFillTextBoundaryEnd = 0x0200 , kDrawFillSelectionWindow = 0x0400 , kDrawNoForceByLayerkDrawNoForceByLayer = 0x0800 , kDrawContourFill = 0x08000 , kDisableLayoutCache = 0x10000 , kDrawBoundaryForClipping = 0x20000 , kDrawBoundaryForClippingDrw = 0x40000 , kClipSetIsEmpty = 0x80000 , kDrawPolygonFill = 0x100000 , kExcludeFromViewExt = 0x200000 , kDrawDgLsPolyWithoutBreaks = 0x400000 , kPolygonProcessing = 0x800000 , kDisableAutoGenerateNormals = 0x1000000 , kDisableFillModeCheck = 0x2000000 , kDrawUnderlayReference = 0x4000000 , kLineStyleScaleOverride = 0x8000000 , kDisableDisplayClipping = 0x10000000 , kRegenTypeDependent2dDraw = 0x20000000 , kInternalDrawFlags = kDisableLayoutCache \| kClipSetIsEmpty \| kRegenTypeDependent2dDraw , kDrawGeometryForExtents = 0x04000 , kFxNoFillOnSelect = 0x40000000 , kInheritableDrawFlags }

enum	ShadowFlags { kShadowsCastAndReceive = 0 , kShadowsDoesNotCast = 1 , kShadowsDoesNotReceive = 2 , kShadowsIgnore = kShadowsDoesNotCast \| kShadowsDoesNotReceive }

enum	SelectionFlags { kNoSelectionFlags = 0 , kSelectionIgnore = 1 , kHighlightingGeometry = 2 , kHiddenInHighlight = 4 , kFxSubentitySelection = 0x80 }

Additional Inherited Members
Public Member Functions inherited from AcGiDrawableTraits
	ACRX_DECLARE_MEMBERS (AcGiDrawableTraits)

virtual void	setupForEntity (AcDbEntity *)

void	setTrueColor (AcCmEntityColor)

Public Member Functions inherited from AcGiSubEntityTraits
	ACRX_DECLARE_MEMBERS (AcGiSubEntityTraits)

virtual bool	sectionable (void) const

virtual AcDbObjectId	visualStyle (void) const

virtual Acad::ErrorStatus	edgeStyleOverride (unsigned int &, AcGiEdgeStyle &) const

virtual Acad::ErrorStatus	setEdgeStyleOverride (unsigned int, AcGiEdgeStyle const &)

virtual void	setSectionable (bool)

virtual void	setVisualStyle (AcDbObjectId)

virtual void	setSelectionMarker (Adesk::LongPtr const)

virtual void	setColor (short)

virtual void	setLayer (const AcDbObjectId)

virtual AcGiFillType	fillType () const

virtual void	setFillType (AcGiFillType const)

virtual Adesk::UInt16	color () const

virtual void	setLineType (const AcDbObjectId)

virtual void	setLineWeight (const AcDb::LineWeight)

AcDbObjectId	lineTypeId (void) const

virtual void	setTrueColor (const AcCmEntityColor &)

virtual void	setTransparency (const AcCmTransparency &)

virtual void	setThickness (double)

virtual AcDb::LineWeight	lineWeight (void) const

virtual AcCmEntityColor	trueColor (void) const

virtual AcDbObjectId	layerId (void) const

virtual double	thickness (void) const

virtual void	setMaterial (const AcDbObjectId)

virtual void	setLineTypeScale (double=1.0)

virtual double	lineTypeScale () const

virtual AcCmTransparency	transparency (void) const

virtual bool	selectionGeom () const

virtual void	setSelectionGeom (bool)

virtual Acad::ErrorStatus	setDrawFlags (unsigned long)

virtual unsigned long	drawFlags (void) const

Public Member Functions inherited from AcRxObject
virtual AcRxObject *	queryX (AcRxClass const *) const

AcRxObject *	x (AcRxClass const *) const

virtual AcRxClass *	isA (void) const

virtual AcRxObject *	clone (void) const

virtual AcRx::Ordering	comparedTo (AcRxObject const *) const

virtual Acad::ErrorStatus	copyFrom (AcRxObject const *)

virtual int	isEqualTo (AcRxObject const *) const

bool	isKindOf (const AcRxClass *pOtherClass) const

virtual	~AcRxObject (void)

Public Member Functions inherited from AcRTTIObject
	AcRTTIObject ()

virtual	~AcRTTIObject ()

Public Member Functions inherited from AcObject
	AcObject ()

	AcObject (const AcObject &source)

virtual	~AcObject ()

void *	data () const

Static Public Member Functions inherited from AcRxObject
static AcRxClass *__cdecl	desc (void)

static AcRxObject *__cdecl	cast (AcRxObject const *)

Protected Member Functions inherited from AcRxObject
	AcRxObject (void)

virtual AcRxObject *	subQueryX (AcRxClass const *) const

Protected Attributes inherited from AcObject
void *	m_pData
