Public Member Functions | Protected Attributes | List of all members
CFxUIAbstractItemModel Class Referenceabstract

#include <FxUIAbstractItemModel.h>

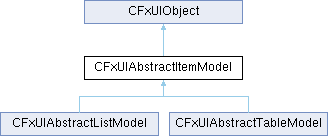

Inheritance diagram for CFxUIAbstractItemModel:
CFxUIObject CFxUIAbstractListModel CFxUIAbstractTableModel

Public Member Functions

 CFxUIAbstractItemModel (CFxUIObject *parent=nullptr)

virtual ~CFxUIAbstractItemModel ()

virtual CFxUIModelIndex index (int row, int column, const CFxUIModelIndex &parent=CFxUIModelIndex()) const =0

virtual CFxUIModelIndex parent (const CFxUIModelIndex &child) const =0

virtual int rowCount (const CFxUIModelIndex &parent=CFxUIModelIndex()) const =0

virtual int columnCount (const CFxUIModelIndex &parent=CFxUIModelIndex()) const =0

virtual CFxUIVariant data (const CFxUIModelIndex &index, int role=CFxUIModelIndex::UIDataRole::DisplayRole) const =0

virtual bool setData (const CFxUIModelIndex &index, const CFxUIVariant &value, int role=CFxUIModelIndex::UIDataRole::EditRole)

bool hasIndex (int row, int column, const CFxUIModelIndex &parent=CFxUIModelIndex()) const

virtual CFxUIVariant headerData (int section, CFxUIModelIndex::UIOrientation orientation, int role=CFxUIModelIndex::UIDataRole::DisplayRole) const

virtual CFxUIModelIndex::UIItemFlags flags (const CFxUIModelIndex &index) const

virtual void sort (int column, int order)

CFxUIModelIndex createIndex (int row, int column, void *data=nullptr) const

CFxUIModelIndex createIndex (int row, int column, quintptr id) const

CFxUISignal< void(const CFxUIModelIndex &parent, int first, int last)> & beginInsertRows ()

CFxUISignal< void(const CFxUIModelIndex &parent, int first, int last)> & beginRemoveRows ()

CFxUISignal< void()> & endInsertRows ()

CFxUISignal< void()> & endRemoveRows ()

CFxUISignal< void(const CFxUIModelIndex &topLeft, const CFxUIModelIndex &bottomRight)> & dataChanged ()

CFxUISignal< void(void)> & layoutChanged ()

CFxUISignal< void(void)> & beginResetModel ()

CFxUISignal< void(void)> & endResetModel ()

virtual void onBeginInsertRows (const CFxUIModelIndex &parent, int first, int last)

virtual void onBeginRemoveRows (const CFxUIModelIndex &parent, int first, int last)

virtual void onEndInsertRows ()

virtual void onEndRemoveRows ()

virtual void onDataChanged (const CFxUIModelIndex &topLeft, const CFxUIModelIndex &bottomRight)

virtual void onLayoutChanged ()

virtual void onBeginResetModel ()

virtual void onEndResetModel ()

- Public Member Functions inherited from CFxUIObject
 CFxUIObject ()

virtual ~CFxUIObject ()

FxNativeHandle getHandle () const

void setHandle (FxNativeHandle handle)

void setParent (CFxUIObject *parent)

CFxUIObject * parent ()

const CFxUIObject * parent () const

void setObjectName (const CFxUIString &objectName)

CFxUIString objectName () const

bool setProperty (const char *name, const CFxUIVariant &value)

CFxUIVariant property (const char *name)

CFxUIList< CFxUIObject * > children () const

template<typename T>
CFxUIList< T > findChildren (const CFxUIString &name=CFxUIString())

void blockSignals (bool block)

bool signalsBlocked () const


Protected Attributes

CFxUISignal< void(const CFxUIModelIndex &parent, int first, int last)> m_beginInsertRows

CFxUISignal< void()> m_endInsertRows

CFxUISignal< void(const CFxUIModelIndex &parent, int first, int last)> m_beginRemoveRows

CFxUISignal< void()> m_endRemoveRows

CFxUISignal< void(const CFxUIModelIndex &topLeft, const CFxUIModelIndex &bottomRight)> m_dataChanged

CFxUISignal< void(void)> m_layoutChanged

CFxUISignal< void(void)> m_beginResetModel

CFxUISignal< void(void)> m_endResetModel

- Protected Attributes inherited from CFxUIObject
CFxUIObjectImpl * m_pImpl

CFxUIObjectData * m_pData


Additional Inherited Members

- Protected Member Functions inherited from CFxUIObject
CFxUIObject * sender ()


Detailed Description

Definition at line 25 of file FxUIAbstractItemModel.h.

Constructor & Destructor Documentation

◆ CFxUIAbstractItemModel()

CFxUIAbstractItemModel::CFxUIAbstractItemModel ( CFxUIObject * parent = nullptr)
inlineexplicit

Definition at line 29 of file FxUIAbstractItemModel.h.

◆ ~CFxUIAbstractItemModel()

virtual CFxUIAbstractItemModel::~CFxUIAbstractItemModel ( )
inlinevirtual

Definition at line 42 of file FxUIAbstractItemModel.h.

Member Function Documentation

◆ beginInsertRows()

CFxUISignal< void(const CFxUIModelIndex &parent, int first, int last)> & CFxUIAbstractItemModel::beginInsertRows ( )
inline

Definition at line 77 of file FxUIAbstractItemModel.h.

◆ beginRemoveRows()

CFxUISignal< void(const CFxUIModelIndex &parent, int first, int last)> & CFxUIAbstractItemModel::beginRemoveRows ( )
inline

Definition at line 82 of file FxUIAbstractItemModel.h.

◆ beginResetModel()

CFxUISignal< void(void)> & CFxUIAbstractItemModel::beginResetModel ( )
inline

Definition at line 107 of file FxUIAbstractItemModel.h.

◆ columnCount()

virtual int CFxUIAbstractItemModel::columnCount ( const CFxUIModelIndex & parent = CFxUIModelIndex()) const
pure virtual

Implemented in CFxUIAbstractListModel.

◆ createIndex() [1/2]

CFxUIModelIndex CFxUIAbstractItemModel::createIndex ( int row,
int column,
quintptr id ) const
inline

Definition at line 172 of file FxUIAbstractItemModel.h.

◆ createIndex() [2/2]

CFxUIModelIndex CFxUIAbstractItemModel::createIndex ( int row,
int column,
void * data = nullptr ) const
inline

Definition at line 168 of file FxUIAbstractItemModel.h.

◆ data()

virtual CFxUIVariant CFxUIAbstractItemModel::data ( const CFxUIModelIndex & index,
int role = CFxUIModelIndex::UIDataRole::DisplayRole ) const
pure virtual

Implemented in CFxUIAbstractListModel.

◆ dataChanged()

CFxUISignal< void(const CFxUIModelIndex &topLeft, const CFxUIModelIndex &bottomRight)> & CFxUIAbstractItemModel::dataChanged ( )
inline

Definition at line 97 of file FxUIAbstractItemModel.h.

◆ endInsertRows()

CFxUISignal< void()> & CFxUIAbstractItemModel::endInsertRows ( )
inline

Definition at line 87 of file FxUIAbstractItemModel.h.

◆ endRemoveRows()

CFxUISignal< void()> & CFxUIAbstractItemModel::endRemoveRows ( )
inline

Definition at line 92 of file FxUIAbstractItemModel.h.

◆ endResetModel()

CFxUISignal< void(void)> & CFxUIAbstractItemModel::endResetModel ( )
inline

Definition at line 112 of file FxUIAbstractItemModel.h.

◆ flags()

virtual CFxUIModelIndex::UIItemFlags CFxUIAbstractItemModel::flags ( const CFxUIModelIndex & index) const
inlinevirtual

Definition at line 63 of file FxUIAbstractItemModel.h.

◆ hasIndex()

bool CFxUIAbstractItemModel::hasIndex ( int row,
int column,
const CFxUIModelIndex & parent = CFxUIModelIndex() ) const
inline

Definition at line 52 of file FxUIAbstractItemModel.h.

◆ headerData()

virtual CFxUIVariant CFxUIAbstractItemModel::headerData ( int section,
CFxUIModelIndex::UIOrientation orientation,
int role = CFxUIModelIndex::UIDataRole::DisplayRole ) const
virtual

◆ index()

virtual CFxUIModelIndex CFxUIAbstractItemModel::index ( int row,
int column,
const CFxUIModelIndex & parent = CFxUIModelIndex() ) const
pure virtual

Implemented in CFxUIAbstractListModel, and CFxUIAbstractTableModel.

◆ layoutChanged()

CFxUISignal< void(void)> & CFxUIAbstractItemModel::layoutChanged ( )
inline

Definition at line 102 of file FxUIAbstractItemModel.h.

◆ onBeginInsertRows()

virtual void CFxUIAbstractItemModel::onBeginInsertRows ( const CFxUIModelIndex & parent,
int first,
int last )
inlinevirtual

Definition at line 117 of file FxUIAbstractItemModel.h.

◆ onBeginRemoveRows()

virtual void CFxUIAbstractItemModel::onBeginRemoveRows ( const CFxUIModelIndex & parent,
int first,
int last )
inlinevirtual

Definition at line 122 of file FxUIAbstractItemModel.h.

◆ onBeginResetModel()

virtual void CFxUIAbstractItemModel::onBeginResetModel ( )
inlinevirtual

Definition at line 147 of file FxUIAbstractItemModel.h.

◆ onDataChanged()

virtual void CFxUIAbstractItemModel::onDataChanged ( const CFxUIModelIndex & topLeft,
const CFxUIModelIndex & bottomRight )
inlinevirtual

Definition at line 137 of file FxUIAbstractItemModel.h.

◆ onEndInsertRows()

virtual void CFxUIAbstractItemModel::onEndInsertRows ( )
inlinevirtual

Definition at line 127 of file FxUIAbstractItemModel.h.

◆ onEndRemoveRows()

virtual void CFxUIAbstractItemModel::onEndRemoveRows ( )
inlinevirtual

Definition at line 132 of file FxUIAbstractItemModel.h.

◆ onEndResetModel()

virtual void CFxUIAbstractItemModel::onEndResetModel ( )
inlinevirtual

Definition at line 152 of file FxUIAbstractItemModel.h.

◆ onLayoutChanged()

virtual void CFxUIAbstractItemModel::onLayoutChanged ( )
inlinevirtual

Definition at line 142 of file FxUIAbstractItemModel.h.

◆ parent()

virtual CFxUIModelIndex CFxUIAbstractItemModel::parent ( const CFxUIModelIndex & child) const
pure virtual

Implemented in CFxUIAbstractListModel, and CFxUIAbstractTableModel.

◆ rowCount()

virtual int CFxUIAbstractItemModel::rowCount ( const CFxUIModelIndex & parent = CFxUIModelIndex()) const
pure virtual

Implemented in CFxUIAbstractListModel.

◆ setData()

virtual bool CFxUIAbstractItemModel::setData ( const CFxUIModelIndex & index,
const CFxUIVariant & value,
int role = CFxUIModelIndex::UIDataRole::EditRole )
inlinevirtual

Definition at line 51 of file FxUIAbstractItemModel.h.

◆ sort()

virtual void CFxUIAbstractItemModel::sort ( int column,
int order )
inlinevirtual

Definition at line 72 of file FxUIAbstractItemModel.h.

Member Data Documentation

◆ m_beginInsertRows

CFxUISignal<void( const CFxUIModelIndex &parent, int first, int last )> CFxUIAbstractItemModel::m_beginInsertRows
protected

Definition at line 158 of file FxUIAbstractItemModel.h.

◆ m_beginRemoveRows

CFxUISignal<void( const CFxUIModelIndex &parent, int first, int last )> CFxUIAbstractItemModel::m_beginRemoveRows
protected

Definition at line 160 of file FxUIAbstractItemModel.h.

◆ m_beginResetModel

CFxUISignal<void( void )> CFxUIAbstractItemModel::m_beginResetModel
protected

Definition at line 164 of file FxUIAbstractItemModel.h.

◆ m_dataChanged

CFxUISignal<void( const CFxUIModelIndex& topLeft, const CFxUIModelIndex& bottomRight )> CFxUIAbstractItemModel::m_dataChanged
protected

Definition at line 162 of file FxUIAbstractItemModel.h.

◆ m_endInsertRows

CFxUISignal<void()> CFxUIAbstractItemModel::m_endInsertRows
protected

Definition at line 159 of file FxUIAbstractItemModel.h.

◆ m_endRemoveRows

CFxUISignal<void()> CFxUIAbstractItemModel::m_endRemoveRows
protected

Definition at line 161 of file FxUIAbstractItemModel.h.

◆ m_endResetModel

CFxUISignal<void( void )> CFxUIAbstractItemModel::m_endResetModel
protected

Definition at line 165 of file FxUIAbstractItemModel.h.

◆ m_layoutChanged

CFxUISignal<void( void )> CFxUIAbstractItemModel::m_layoutChanged
protected

Definition at line 163 of file FxUIAbstractItemModel.h.

The documentation for this class was generated from the following file:
