AcGeCurve2d Class Reference

#include <AcGeCurve2d.h>

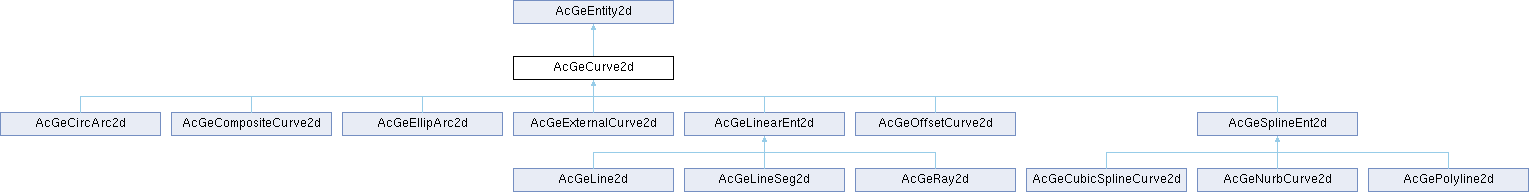

Inheritance diagram for AcGeCurve2d:

Public Member Functions
	~AcGeCurve2d (void)
AcGeBoundBlock2d	boundBlock (AcGeInterval const &) const
AcGeBoundBlock2d	boundBlock (void) const
AcGeBoundBlock2d	orthoBoundBlock (AcGeInterval const &) const
AcGeBoundBlock2d	orthoBoundBlock (void) const
AcGeCurve2d &	operator= (AcGeCurve2d const &)
AcGeCurve2d &	reverseParam (void)
AcGeCurve2d &	setInterval (void)
AcGePoint2d	closestPointTo (AcGeCurve2d const &, AcGePoint2d &, AcGeTol const &=AcGeContext::gTol) const
AcGePoint2d	closestPointTo (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
AcGePoint2d	evalPoint (double) const
AcGePoint2d	evalPoint (double, int, AcArray< AcGeVector2d, AcArrayMemCopyReallocator< AcGeVector2d > > &) const
double	distanceTo (AcGeCurve2d const &, AcGeTol const &=AcGeContext::gTol) const
double	distanceTo (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
double	length (double, double, double=AcGeContext::gTol.equalPoint()) const
double	paramAtLength (double, double, Frx::Boolean=Frx::kTrue, double=AcGeContext::gTol.equalPoint()) const
double	paramOf (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	area (double, double, double &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	explode (AcDbVoidPtrArray &, AcGeIntArray &, AcGeInterval const *) const
Adesk::Boolean	getNormalPoint (AcGePoint2d const &, AcGePointOnCurve2d &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	hasEndPoint (AcGePoint2d &) const
Adesk::Boolean	hasStartPoint (AcGePoint2d &) const
Adesk::Boolean	isClosed (AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isDegenerate (AcGeEntity2d *&, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isDegenerate (AcGe::EntityId &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isLinear (AcGeLine2d &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isOn (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isOn (AcGePoint2d const &, double &, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isOn (double, AcGeTol const &=AcGeContext::gTol) const
Adesk::Boolean	isPeriodic (double &) const
Adesk::Boolean	setInterval (AcGeInterval const &)
void	getClosestPointTo (AcGeCurve2d const &, AcGePointOnCurve2d &, AcGePointOnCurve2d &, AcGeTol const &=AcGeContext::gTol) const
void	getClosestPointTo (AcGePoint2d const &, AcGePointOnCurve2d &, AcGeTol const &=AcGeContext::gTol) const
void	getInterval (AcGeInterval &) const
void	getInterval (AcGeInterval &, AcGePoint2d &, AcGePoint2d &) const
void	getLocalClosestPoints (AcGeCurve2d const &, AcGePointOnCurve2d &, AcGePointOnCurve2d &, AcGeInterval const *, AcGeInterval const *, AcGeTol const &=AcGeContext::gTol) const
void	getLocalClosestPoints (AcGePoint2d const &, AcGePointOnCurve2d &, AcGeInterval const *, AcGeTol const &=AcGeContext::gTol) const
void	getSamplePoints (double, double, double, AcGePoint2dArray &, AcGeDoubleArray &) const
void	getSamplePoints (int, AcGePoint2dArray &) const
void	getSplitCurves (double, AcGeCurve2d *&, AcGeCurve2d *&) const
void	getTrimmedOffset (double, AcDbVoidPtrArray &, AcGe::OffsetCrvExtType, AcGeTol const &=AcGeContext::gTol) const
Public Member Functions inherited from AcGeEntity2d
	~AcGeEntity2d (void)
AcGeEntity2d &	mirror (AcGeLine2d const &)
AcGeEntity2d &	operator= (AcGeEntity2d const &)
AcGeEntity2d &	rotateBy (double, AcGePoint2d const &)
AcGeEntity2d &	scaleBy (double, AcGePoint2d const &)
AcGeEntity2d &	transformBy (AcGeMatrix2d const &)
AcGeEntity2d &	translateBy (AcGeVector2d const &)
AcGeEntity2d *	copy (void) const
AcGe::EntityId	type (void) const
Frx::Boolean	isEqualTo (AcGeEntity2d const &, AcGeTol const &=AcGeContext::gTol) const
Frx::Boolean	isKindOf (AcGe::EntityId) const
Adesk::Boolean	isOn (AcGePoint2d const &, AcGeTol const &=AcGeContext::gTol) const
Frx::Boolean	operator!= (AcGeEntity2d const &) const
Frx::Boolean	operator== (AcGeEntity2d const &) const

Protected Member Functions
	AcGeCurve2d (AcGeCurve2d const &)
	AcGeCurve2d (void)
Protected Member Functions inherited from AcGeEntity2d
	AcGeEntity2d (AcGeEntity2d const &)
	AcGeEntity2d (AcGeImpEntity3d &, int)
	AcGeEntity2d (AcGeImpEntity3d *)
	AcGeEntity2d (void)
AcGeEntity2d *	newEntity2d (AcGeImpEntity3d *) const
void	connectTo (AcGeEntity2dImpl *)

Friends
class	DefValueProducer

Additional Inherited Members
Protected Attributes inherited from AcGeEntity2d
AcGeEntity2dImpl *	m_pImpl

Detailed Description

Definition at line 33 of file AcGeCurve2d.h.

Constructor & Destructor Documentation

~AcGeCurve2d()

AcGeCurve2d::~AcGeCurve2d

(

void

)

AcGeCurve2d() [1/2]

AcGeCurve2d::AcGeCurve2d ( AcGeCurve2d const & )

protected

AcGeCurve2d() [2/2]

AcGeCurve2d::AcGeCurve2d ( void )

protected

Member Function Documentation

area()

Adesk::Boolean AcGeCurve2d::area	(	double	,
		double	,
		double &	,
		AcGeTol const &	= AcGeContext::gTol ) const

boundBlock() [1/2]

AcGeBoundBlock2d AcGeCurve2d::boundBlock

(

AcGeInterval const &

)

const

boundBlock() [2/2]

AcGeBoundBlock2d AcGeCurve2d::boundBlock

(

void

)

const

closestPointTo() [1/2]

AcGePoint2d AcGeCurve2d::closestPointTo	(	AcGeCurve2d const &	,
		AcGePoint2d &	,
		AcGeTol const &	= AcGeContext::gTol ) const

closestPointTo() [2/2]

AcGePoint2d AcGeCurve2d::closestPointTo	(	AcGePoint2d const &	,
		AcGeTol const &	= AcGeContext::gTol ) const

distanceTo() [1/2]

double AcGeCurve2d::distanceTo	(	AcGeCurve2d const &	,
		AcGeTol const &	= AcGeContext::gTol ) const

distanceTo() [2/2]

double AcGeCurve2d::distanceTo	(	AcGePoint2d const &	,
		AcGeTol const &	= AcGeContext::gTol ) const

evalPoint() [1/2]

AcGePoint2d AcGeCurve2d::evalPoint

(

double

)

const

evalPoint() [2/2]

AcGePoint2d AcGeCurve2d::evalPoint	(	double	,
		int	,
		AcArray< AcGeVector2d, AcArrayMemCopyReallocator< AcGeVector2d > > &	) const

explode()

Adesk::Boolean AcGeCurve2d::explode	(	AcDbVoidPtrArray &	,
		AcGeIntArray &	,
		AcGeInterval const *	) const

getClosestPointTo() [1/2]

void AcGeCurve2d::getClosestPointTo	(	AcGeCurve2d const &	,
		AcGePointOnCurve2d &	,
		AcGePointOnCurve2d &	,
		AcGeTol const &	= AcGeContext::gTol ) const

getClosestPointTo() [2/2]

void AcGeCurve2d::getClosestPointTo	(	AcGePoint2d const &	,
		AcGePointOnCurve2d &	,
		AcGeTol const &	= AcGeContext::gTol ) const

getInterval() [1/2]

void AcGeCurve2d::getInterval

(

AcGeInterval &

)

const

getInterval() [2/2]

void AcGeCurve2d::getInterval	(	AcGeInterval &	,
		AcGePoint2d &	,
		AcGePoint2d &	) const

getLocalClosestPoints() [1/2]

void AcGeCurve2d::getLocalClosestPoints	(	AcGeCurve2d const &	,
		AcGePointOnCurve2d &	,
		AcGePointOnCurve2d &	,
		AcGeInterval const *	,
		AcGeInterval const *	,
		AcGeTol const &	= AcGeContext::gTol ) const

getLocalClosestPoints() [2/2]

void AcGeCurve2d::getLocalClosestPoints	(	AcGePoint2d const &	,
		AcGePointOnCurve2d &	,
		AcGeInterval const *	,
		AcGeTol const &	= AcGeContext::gTol ) const

getNormalPoint()

Adesk::Boolean AcGeCurve2d::getNormalPoint	(	AcGePoint2d const &	,
		AcGePointOnCurve2d &	,
		AcGeTol const &	= AcGeContext::gTol ) const

getSamplePoints() [1/2]

void AcGeCurve2d::getSamplePoints	(	double	,
		double	,
		double	,
		AcGePoint2dArray &	,
		AcGeDoubleArray &	) const

getSamplePoints() [2/2]

void AcGeCurve2d::getSamplePoints	(	int	,
		AcGePoint2dArray &	) const

getSplitCurves()

void AcGeCurve2d::getSplitCurves	(	double	,
		AcGeCurve2d *&	,
		AcGeCurve2d *&	) const

getTrimmedOffset()

void AcGeCurve2d::getTrimmedOffset	(	double	,
		AcDbVoidPtrArray &	,
		AcGe::OffsetCrvExtType	,
		AcGeTol const &	= AcGeContext::gTol ) const

hasEndPoint()

Adesk::Boolean AcGeCurve2d::hasEndPoint

(

AcGePoint2d &

)

const

hasStartPoint()

Adesk::Boolean AcGeCurve2d::hasStartPoint

(

AcGePoint2d &

)

const

isClosed()

Adesk::Boolean AcGeCurve2d::isClosed

(

AcGeTol const &

= AcGeContext::gTol

)

const

isDegenerate() [1/2]

Adesk::Boolean AcGeCurve2d::isDegenerate	(	AcGe::EntityId &	,
		AcGeTol const &	= AcGeContext::gTol ) const

isDegenerate() [2/2]

Adesk::Boolean AcGeCurve2d::isDegenerate	(	AcGeEntity2d *&	,
		AcGeTol const &	= AcGeContext::gTol ) const

isLinear()

Adesk::Boolean AcGeCurve2d::isLinear	(	AcGeLine2d &	,
		AcGeTol const &	= AcGeContext::gTol ) const

isOn() [1/3]

Adesk::Boolean AcGeCurve2d::isOn	(	AcGePoint2d const &	,
		AcGeTol const &	= AcGeContext::gTol ) const

isOn() [2/3]

Adesk::Boolean AcGeCurve2d::isOn	(	AcGePoint2d const &	,
		double &	,
		AcGeTol const &	= AcGeContext::gTol ) const

isOn() [3/3]

Adesk::Boolean AcGeCurve2d::isOn	(	double	,
		AcGeTol const &	= AcGeContext::gTol ) const

isPeriodic()

Adesk::Boolean AcGeCurve2d::isPeriodic

(

double &

)

const

length()

double AcGeCurve2d::length	(	double	,
		double	,
		double	= AcGeContext::gTol.equalPoint() ) const

operator=()

AcGeCurve2d & AcGeCurve2d::operator=

(

AcGeCurve2d const &

)

orthoBoundBlock() [1/2]

AcGeBoundBlock2d AcGeCurve2d::orthoBoundBlock

(

AcGeInterval const &

)

const

orthoBoundBlock() [2/2]

AcGeBoundBlock2d AcGeCurve2d::orthoBoundBlock

(

void

)

const

paramAtLength()

double AcGeCurve2d::paramAtLength	(	double	,
		double	,
		Frx::Boolean	= Frx::kTrue,
		double	= AcGeContext::gTol.equalPoint() ) const

paramOf()

double AcGeCurve2d::paramOf	(	AcGePoint2d const &	,
		AcGeTol const &	= AcGeContext::gTol ) const

reverseParam()

AcGeCurve2d & AcGeCurve2d::reverseParam

(

void

)

setInterval() [1/2]

Adesk::Boolean AcGeCurve2d::setInterval

(

AcGeInterval const &

)

setInterval() [2/2]

AcGeCurve2d & AcGeCurve2d::setInterval

(

void

)

Friends And Related Symbol Documentation

DefValueProducer

friend class DefValueProducer

friend

Definition at line 35 of file AcGeCurve2d.h.

---

The documentation for this class was generated from the following file:

• AcGeCurve2d.h
