AcDbSectionSettings Class Reference

#include <AcDbSectionSettings.h>

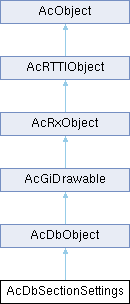

Inheritance diagram for AcDbSectionSettings:

Public Types
enum	Generation {   kSourceAllObjects = ( 0x1 << 0 ) , kSourceSelectedObjects = ( 0x1 << 1 ) , kDestinationNewBlock = ( 0x1 << 4 ) , kDestinationReplaceBlock = ( 0x1 << 5 ) ,   kDestinationFile = ( 0x1 << 6 ) }
enum	Geometry {   kIntersectionBoundary = ( 0x1 << 0 ) , kIntersectionFill = ( 0x1 << 1 ) , kBackgroundGeometry = ( 0x1 << 2 ) , kForegroundGeometry = ( 0x1 << 3 ) ,   kCurveTangencyLines = ( 0x1 << 4 ) }
enum	SectionType { kLiveSection = ( 0x1 << 0 ) , k2dSection = ( 0x1 << 1 ) , k3dSection = ( 0x1 << 2 ) }
Public Types inherited from AcGiDrawable
enum	DrawableType {   kGeometry = 0 , kDistantLight = 1 , kPointLight = 2 , kSpotLight = 3 ,   kAmbientLight , kSolidBackground , kGradientBackground , kImageBackground ,   kGroundPlaneBackground , kViewport , kWebLight , kSkyBackground }
enum	SetAttributesFlags {   kDrawableNone = 0 , kDrawableIsAnEntity = 1 , kDrawableUsesNesting = 2 , kDrawableIsCompoundObject = 4 ,   kDrawableViewIndependentViewportDraw = 8 , kDrawableIsInvisible = 16 , kDrawableHasAttributes = 32 , kDrawableRegenTypeDependentGeometry = 64 ,   kDrawableIsDimension = (kDrawableIsAnEntity + kDrawableIsCompoundObject + 128) , kDrawableRegenDraw = 256 , kDrawableViewDependentViewportDraw = 2048 }

Public Member Functions
	AcDbSectionSettings (void)
bool	divisionLines (SectionType, Geometry) const
bool	hatchVisibility (SectionType, Geometry) const
bool	hiddenLine (SectionType, Geometry) const
bool	visibility (SectionType, Geometry) const
AcCmColor	color (SectionType, Geometry) const
AcDbObjectId	destinationBlock (SectionType) const
double	hatchAngle (SectionType, Geometry) const
double	hatchScale (SectionType, Geometry) const
double	hatchSpacing (SectionType, Geometry) const
double	linetypeScale (SectionType, Geometry) const
AcDb::LineWeight	lineWeight (SectionType, Geometry) const
Generation	generationOptions (SectionType) const
SectionType	currentSectionType (void) const
Acad::ErrorStatus	getHatchPattern (SectionType, Geometry, AcDbHatch::HatchPatternType &, wchar_t const *&) const
Acad::ErrorStatus	getSourceObjects (SectionType, AcDbObjectIdArray &) const
Acad::ErrorStatus	reset (SectionType)
Acad::ErrorStatus	reset (void)
Acad::ErrorStatus	setColor (SectionType, Geometry, AcCmColor const &)
Acad::ErrorStatus	setCurrentSectionType (SectionType)
Acad::ErrorStatus	setDestinationBlock (SectionType, AcDbObjectId const &)
Acad::ErrorStatus	setDestinationFile (SectionType, wchar_t const *)
Acad::ErrorStatus	setDivisionLines (SectionType, Geometry, bool)
Acad::ErrorStatus	setEdgeTransparency (SectionType, Geometry, int)
Acad::ErrorStatus	setFaceTransparency (SectionType, Geometry, int)
Acad::ErrorStatus	setGenerationOptions (SectionType, Generation)
Acad::ErrorStatus	setHatchAngle (SectionType, Geometry, double)
Acad::ErrorStatus	setHatchPattern (SectionType, Geometry, AcDbHatch::HatchPatternType, wchar_t const *)
Acad::ErrorStatus	setHatchScale (SectionType, Geometry, double)
Acad::ErrorStatus	setHatchSpacing (SectionType, Geometry, double)
Acad::ErrorStatus	setHatchVisibility (SectionType, Geometry, bool)
Acad::ErrorStatus	setHiddenLine (SectionType, Geometry, bool)
Acad::ErrorStatus	setLayer (SectionType, Geometry, wchar_t const *)
Acad::ErrorStatus	setLineWeight (SectionType, Geometry, AcDb::LineWeight)
Acad::ErrorStatus	setLinetype (SectionType, Geometry, wchar_t const *)
Acad::ErrorStatus	setLinetypeScale (SectionType, Geometry, double)
Acad::ErrorStatus	setPlotStyleName (SectionType, Geometry, wchar_t const *)
Acad::ErrorStatus	setSourceObjects (SectionType, AcDbObjectIdArray const &)
Acad::ErrorStatus	setVisibility (SectionType, Geometry, bool)
int	edgeTransparency (SectionType, Geometry) const
int	faceTransparency (SectionType, Geometry) const
virtual	~AcDbSectionSettings (void)
virtual Acad::ErrorStatus	getClassID (_GUID *) const
wchar_t const *	destinationFile (SectionType) const
wchar_t const *	layer (SectionType, Geometry) const
wchar_t const *	linetype (SectionType, Geometry) const
wchar_t const *	plotStyleName (SectionType, Geometry) const
Public Member Functions inherited from AcDbObject
	ACRX_DECLARE_MEMBERS (AcDbObject)
bool	hasFields (void) const
bool	hasPersistentReactor (AcDbObjectId) const
bool	hasSaveVersionOverride (void)
bool	isUndoRecordingDisabled (void) const
AcDbVoidPtrArray const *	reactors (void) const
AcDbDatabase *	database (void) const
AcDbDwgFiler *	undoFiler (void)
AcDbObjectId	extensionDictionary (void) const
AcDbObjectId	getFieldDictionary (void) const
AcDbObjectId	objectId (void) const
AcDbObjectId	ownerId (void) const
Acad::ErrorStatus	cancel (void)
Acad::ErrorStatus	close (void)
Acad::ErrorStatus	closeAndPage (int=0)
Acad::ErrorStatus	createExtensionDictionary (void)
Acad::ErrorStatus	downgradeOpen (void)
Acad::ErrorStatus	downgradeToNotify (Adesk::Boolean)
Acad::ErrorStatus	dwgIn (AcDbDwgFiler *)
Acad::ErrorStatus	dwgOut (AcDbDwgFiler *) const
Acad::ErrorStatus	dxfIn (AcDbDxfFiler *)
Acad::ErrorStatus	dxfOut (AcDbDxfFiler *, Adesk::Boolean, unsigned char *) const
Acad::ErrorStatus	erase (Adesk::Boolean=true)
Acad::ErrorStatus	getBinaryData (wchar_t const *, long &, char *&) const
Acad::ErrorStatus	getField (wchar_t const *, AcDbField *&, AcDb::OpenMode) const
Acad::ErrorStatus	getField (wchar_t const *, AcDbObjectId &) const
Acad::ErrorStatus	getFieldDictionary (AcDbDictionary *&, AcDb::OpenMode) const
Acad::ErrorStatus	getObjectBirthVersion (AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)
Acad::ErrorStatus	handOverTo (AcDbObject *, Adesk::Boolean=1, Adesk::Boolean=1)
Acad::ErrorStatus	releaseExtensionDictionary (void)
Acad::ErrorStatus	setBinaryData (wchar_t const *, long, char const *)
Acad::ErrorStatus	swapIdWith (AcDbObjectId, Adesk::Boolean=0, Adesk::Boolean=0)
Acad::ErrorStatus	upgradeFromNotify (Adesk::Boolean &)
Acad::ErrorStatus	upgradeOpen (void)
Acad::ErrorStatus	xDataTransformBy (AcGeMatrix3d const &)
Adesk::Boolean	isAProxy (void) const
Adesk::Boolean	isAcDbObjectIdsInFlux (void) const
Adesk::Boolean	isCancelling (void) const
Adesk::Boolean	isEraseStatusToggled (void) const
Adesk::Boolean	isErased (void) const
Adesk::Boolean	isModified (void) const
Adesk::Boolean	isModifiedGraphics (void) const
Adesk::Boolean	isModifiedXData (void) const
Adesk::Boolean	isNewObject (void) const
Adesk::Boolean	isNotifyEnabled (void) const
Adesk::Boolean	isNotifying (void) const
Adesk::Boolean	isReadEnabled (void) const
Adesk::Boolean	isReallyClosing (void) const
Adesk::Boolean	isTransactionResident (void) const
Adesk::Boolean	isUndoing (void) const
Adesk::Boolean	isWriteEnabled (void) const
virtual	~AcDbObject (void)
virtual AcDbObjectId	id (void) const
virtual AcGiDrawable *	drawable (void)
virtual AcGsNode *	gsNode (void) const
virtual AcRxObject *	clone (void) const
virtual AcDb::DuplicateRecordCloning	mergeStyle (void) const
virtual Acad::ErrorStatus	applyPartialUndo (AcDbDwgFiler *, AcRxClass *)
virtual Acad::ErrorStatus	audit (AcDbAuditInfo *)
virtual Acad::ErrorStatus	copyFrom (AcRxObject const *)
virtual Acad::ErrorStatus	decomposeForSave (AcDb::AcDbDwgVersion, AcDbObject *&, AcDbObjectId &, int &)
virtual Acad::ErrorStatus	deepClone (AcDbObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Acad::ErrorStatus	dwgInFields (AcDbDwgFiler *)
virtual Acad::ErrorStatus	dwgOutFields (AcDbDwgFiler *) const
virtual Acad::ErrorStatus	dxfInFields (AcDbDxfFiler *)
virtual Acad::ErrorStatus	dxfOutFields (AcDbDxfFiler *) const
virtual Acad::ErrorStatus	getObjectSaveVersion (AcDbDwgFiler const *, AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)
virtual Acad::ErrorStatus	getObjectSaveVersion (AcDbDxfFiler const *, AcDb::AcDbDwgVersion &, AcDb::MaintenanceReleaseVersion &)
virtual Acad::ErrorStatus	removeField (AcDbObjectId)
virtual Acad::ErrorStatus	removeField (wchar_t const *)
virtual Acad::ErrorStatus	removeField (wchar_t const *, AcDbObjectId &)
virtual Acad::ErrorStatus	removePersistentReactor (AcDbObjectId)
virtual Acad::ErrorStatus	setField (wchar_t const *, AcDbField *, AcDbObjectId &)
virtual Acad::ErrorStatus	setOwnerId (AcDbObjectId)
virtual Acad::ErrorStatus	setXData (resbuf const *)
virtual Acad::ErrorStatus	subCancel (void)
virtual Acad::ErrorStatus	subClose (void)
virtual Acad::ErrorStatus	subErase (Adesk::Boolean)
virtual Acad::ErrorStatus	subHandOverTo (AcDbObject *)
virtual Acad::ErrorStatus	subOpen (AcDb::OpenMode)
virtual Acad::ErrorStatus	subSwapIdWith (AcDbObjectId, Adesk::Boolean=0, Adesk::Boolean=0)
virtual Acad::ErrorStatus	swapReferences (AcDbIdMapping const &)
virtual Acad::ErrorStatus	wblockClone (AcRxObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Adesk::UInt32	subSetAttributes (AcGiDrawableTraits *pTraits)
virtual void	subViewportDraw (AcGiViewportDraw *)
virtual Adesk::Boolean	isPersistent (void) const
virtual Adesk::Boolean	worldDraw (AcGiWorldDraw *)
virtual resbuf *	xData (wchar_t const *=NULL) const
virtual unsigned long	setAttributes (AcGiDrawableTraits *)
virtual void	addPersistentReactor (AcDbObjectId)
virtual void	cancelled (AcDbObject const *)
virtual void	copied (AcDbObject const *, AcDbObject const *)
virtual void	erased (AcDbObject const *, Adesk::Boolean)
virtual void	goodbye (AcDbObject const *)
virtual void	modified (AcDbObject const *)
virtual void	modifiedGraphics (AcDbEntity const *)
virtual void	modifiedXData (AcDbObject const *)
virtual void	modifyUndone (AcDbObject const *)
virtual void	objectClosed (AcDbObjectId const)
virtual void	openedForModify (AcDbObject const *)
virtual void	reappended (AcDbObject const *)
virtual void	recvPropagateModify (AcDbObject const *)
virtual void	setGsNode (AcGsNode *)
virtual void	subObjModified (AcDbObject const *, AcDbObject const *)
virtual void	unappended (AcDbObject const *)
virtual void	viewportDraw (AcGiViewportDraw *)
virtual void	xmitPropagateModify (void) const
void	addReactor (AcDbObjectReactor *) const
void	assertNotifyEnabled (void) const
void	assertReadEnabled (void) const
void	assertWriteEnabled (Adesk::Boolean=1, Adesk::Boolean=1)
void	disableUndoRecording (Adesk::Boolean)
void	getAcDbHandle (AcDbHandle &) const
void	removeReactor (AcDbObjectReactor *) const
void	setAcDbObjectIdsInFlux (void)
void	setHasSaveVersionOverride (bool)
virtual Adesk::Boolean	subWorldDraw (AcGiWorldDraw *)
virtual Acad::ErrorStatus	subDeepClone (AcDbObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Acad::ErrorStatus	subWblockClone (AcRxObject *, AcDbObject *&, AcDbIdMapping &, Adesk::Boolean=1) const
virtual Acad::ErrorStatus	subGetClassID (_GUID *) const
Public Member Functions inherited from AcGiDrawable
	ACRX_DECLARE_MEMBERS (AcGiDrawable)
virtual Adesk::UInt32	subViewportDrawLogicalFlags (AcGiViewportDraw *)
virtual bool	bounds (AcDbExtents &) const
virtual unsigned long	viewportDrawLogicalFlags (AcGiViewportDraw *)
virtual void	setDrawStream (AcGiDrawStream *)
virtual AcGiDrawStream *	drawStream (void) const
virtual	~AcGiDrawable (void)
Public Member Functions inherited from AcRxObject
virtual AcRxObject *	queryX (AcRxClass const *) const
AcRxObject *	x (AcRxClass const *) const
virtual AcRxClass *	isA (void) const
virtual AcRx::Ordering	comparedTo (AcRxObject const *) const
virtual int	isEqualTo (AcRxObject const *) const
bool	isKindOf (const AcRxClass *pOtherClass) const
virtual	~AcRxObject (void)
Public Member Functions inherited from AcRTTIObject
	AcRTTIObject ()
virtual	~AcRTTIObject ()
Public Member Functions inherited from AcObject
	AcObject ()
	AcObject (const AcObject &source)
virtual	~AcObject ()
void *	data () const

Protected Member Functions
	AcDbSectionSettings (AcDbSystemInternals *)
Protected Member Functions inherited from AcDbObject
	AcDbObject (AcDbSystemInternals *)
	AcDbObject (void)
Protected Member Functions inherited from AcRxObject
	AcRxObject (void)
virtual AcRxObject *	subQueryX (AcRxClass const *) const

Additional Inherited Members
Static Public Member Functions inherited from AcRxObject
static AcRxClass *__cdecl	desc (void)
static AcRxObject *__cdecl	cast (AcRxObject const *)
Protected Attributes inherited from AcDbObject
AcDbObjectImpl *	m_pImpl
Protected Attributes inherited from AcObject
void *	m_pData

Detailed Description

Definition at line 30 of file AcDbSectionSettings.h.

Member Enumeration Documentation

Generation

enum AcDbSectionSettings::Generation

Enumerator
kSourceAllObjects
kSourceSelectedObjects
kDestinationNewBlock
kDestinationReplaceBlock
kDestinationFile

Definition at line 33 of file AcDbSectionSettings.h.

Geometry

enum AcDbSectionSettings::Geometry

Enumerator
kIntersectionBoundary
kIntersectionFill
kBackgroundGeometry
kForegroundGeometry
kCurveTangencyLines

Definition at line 41 of file AcDbSectionSettings.h.

SectionType

enum AcDbSectionSettings::SectionType

Enumerator
kLiveSection
k2dSection
k3dSection

Definition at line 49 of file AcDbSectionSettings.h.

Constructor & Destructor Documentation

AcDbSectionSettings() [1/2]

AcDbSectionSettings::AcDbSectionSettings

(

void

)

~AcDbSectionSettings()

virtual AcDbSectionSettings::~AcDbSectionSettings ( void )

virtual

AcDbSectionSettings() [2/2]

AcDbSectionSettings::AcDbSectionSettings ( AcDbSystemInternals * )

protected

Member Function Documentation

color()

AcCmColor AcDbSectionSettings::color	(	SectionType	,
		Geometry	) const

currentSectionType()

SectionType AcDbSectionSettings::currentSectionType

(

void

)

const

destinationBlock()

AcDbObjectId AcDbSectionSettings::destinationBlock

(

SectionType

)

const

destinationFile()

wchar_t const * AcDbSectionSettings::destinationFile

(

SectionType

)

const

divisionLines()

bool AcDbSectionSettings::divisionLines	(	SectionType	,
		Geometry	) const

edgeTransparency()

int AcDbSectionSettings::edgeTransparency	(	SectionType	,
		Geometry	) const

faceTransparency()

int AcDbSectionSettings::faceTransparency	(	SectionType	,
		Geometry	) const

generationOptions()

Generation AcDbSectionSettings::generationOptions

(

SectionType

)

const

getClassID()

virtual Acad::ErrorStatus AcDbSectionSettings::getClassID ( _GUID * ) const

virtual

Reimplemented from AcDbObject.

getHatchPattern()

Acad::ErrorStatus AcDbSectionSettings::getHatchPattern	(	SectionType	,
		Geometry	,
		AcDbHatch::HatchPatternType &	,
		wchar_t const *&	) const

getSourceObjects()

Acad::ErrorStatus AcDbSectionSettings::getSourceObjects	(	SectionType	,
		AcDbObjectIdArray &	) const

hatchAngle()

double AcDbSectionSettings::hatchAngle	(	SectionType	,
		Geometry	) const

hatchScale()

double AcDbSectionSettings::hatchScale	(	SectionType	,
		Geometry	) const

hatchSpacing()

double AcDbSectionSettings::hatchSpacing	(	SectionType	,
		Geometry	) const

hatchVisibility()

bool AcDbSectionSettings::hatchVisibility	(	SectionType	,
		Geometry	) const

hiddenLine()

bool AcDbSectionSettings::hiddenLine	(	SectionType	,
		Geometry	) const

layer()

wchar_t const * AcDbSectionSettings::layer	(	SectionType	,
		Geometry	) const

linetype()

wchar_t const * AcDbSectionSettings::linetype	(	SectionType	,
		Geometry	) const

linetypeScale()

double AcDbSectionSettings::linetypeScale	(	SectionType	,
		Geometry	) const

lineWeight()

AcDb::LineWeight AcDbSectionSettings::lineWeight	(	SectionType	,
		Geometry	) const

plotStyleName()

wchar_t const * AcDbSectionSettings::plotStyleName	(	SectionType	,
		Geometry	) const

reset() [1/2]

Acad::ErrorStatus AcDbSectionSettings::reset

(

SectionType

)

reset() [2/2]

Acad::ErrorStatus AcDbSectionSettings::reset

(

void

)

setColor()

Acad::ErrorStatus AcDbSectionSettings::setColor	(	SectionType	,
		Geometry	,
		AcCmColor const &	)

setCurrentSectionType()

Acad::ErrorStatus AcDbSectionSettings::setCurrentSectionType

(

SectionType

)

setDestinationBlock()

Acad::ErrorStatus AcDbSectionSettings::setDestinationBlock	(	SectionType	,
		AcDbObjectId const &	)

setDestinationFile()

Acad::ErrorStatus AcDbSectionSettings::setDestinationFile	(	SectionType	,
		wchar_t const *	)

setDivisionLines()

Acad::ErrorStatus AcDbSectionSettings::setDivisionLines	(	SectionType	,
		Geometry	,
		bool	)

setEdgeTransparency()

Acad::ErrorStatus AcDbSectionSettings::setEdgeTransparency	(	SectionType	,
		Geometry	,
		int	)

setFaceTransparency()

Acad::ErrorStatus AcDbSectionSettings::setFaceTransparency	(	SectionType	,
		Geometry	,
		int	)

setGenerationOptions()

Acad::ErrorStatus AcDbSectionSettings::setGenerationOptions	(	SectionType	,
		Generation	)

setHatchAngle()

Acad::ErrorStatus AcDbSectionSettings::setHatchAngle	(	SectionType	,
		Geometry	,
		double	)

setHatchPattern()

Acad::ErrorStatus AcDbSectionSettings::setHatchPattern	(	SectionType	,
		Geometry	,
		AcDbHatch::HatchPatternType	,
		wchar_t const *	)

setHatchScale()

Acad::ErrorStatus AcDbSectionSettings::setHatchScale	(	SectionType	,
		Geometry	,
		double	)

setHatchSpacing()

Acad::ErrorStatus AcDbSectionSettings::setHatchSpacing	(	SectionType	,
		Geometry	,
		double	)

setHatchVisibility()

Acad::ErrorStatus AcDbSectionSettings::setHatchVisibility	(	SectionType	,
		Geometry	,
		bool	)

setHiddenLine()

Acad::ErrorStatus AcDbSectionSettings::setHiddenLine	(	SectionType	,
		Geometry	,
		bool	)

setLayer()

Acad::ErrorStatus AcDbSectionSettings::setLayer	(	SectionType	,
		Geometry	,
		wchar_t const *	)

setLinetype()

Acad::ErrorStatus AcDbSectionSettings::setLinetype	(	SectionType	,
		Geometry	,
		wchar_t const *	)

setLinetypeScale()

Acad::ErrorStatus AcDbSectionSettings::setLinetypeScale	(	SectionType	,
		Geometry	,
		double	)

setLineWeight()

Acad::ErrorStatus AcDbSectionSettings::setLineWeight	(	SectionType	,
		Geometry	,
		AcDb::LineWeight	)

setPlotStyleName()

Acad::ErrorStatus AcDbSectionSettings::setPlotStyleName	(	SectionType	,
		Geometry	,
		wchar_t const *	)

setSourceObjects()

Acad::ErrorStatus AcDbSectionSettings::setSourceObjects	(	SectionType	,
		AcDbObjectIdArray const &	)

setVisibility()

Acad::ErrorStatus AcDbSectionSettings::setVisibility	(	SectionType	,
		Geometry	,
		bool	)

visibility()

bool AcDbSectionSettings::visibility	(	SectionType	,
		Geometry	) const

---

The documentation for this class was generated from the following file:

• AcDbSectionSettings.h
