#include <AcBrEntity.h>

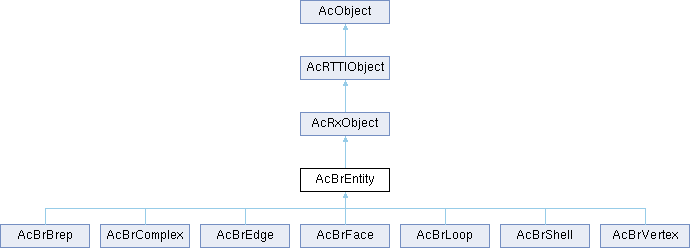

Inheritance diagram for AcBrEntity:

Public Member Functions
	ACRX_DECLARE_MEMBERS (AcBrEntity)

AcBr::ErrorStatus	get (AcBrBrepData *&) const

AcBr::ErrorStatus	get (AcDbFullSubentPath &) const

AcBr::ErrorStatus	getBoundBlock (AcGeBoundBlock3d &) const

AcBr::ErrorStatus	getBrep (AcBrBrep &) const

AcBr::ErrorStatus	getLineContainment (AcGeLinearEnt3d const &, unsigned long const &, unsigned long &, AcBrHit *&) const

AcBr::ErrorStatus	getMassProps (AcBrMassProps &, double const &=((double ) 0), double const &=((double ) 0), double &=((double ) 0)) const

AcBr::ErrorStatus	getPerimeterLength (double &, double const &=((double ) 0), double &=((double ) 0)) const

AcBr::ErrorStatus	getPointContainment (AcGePoint3d const &, AcGe::PointContainment &, AcBrEntity *&) const

AcBr::ErrorStatus	getSubentPath (AcDbFullSubentPath &) const

AcBr::ErrorStatus	getSurface (AcGeSurface *) const

AcBr::ErrorStatus	getSurfaceArea (double &, double const &=((double ) 0), double &=((double ) 0)) const

AcBr::ErrorStatus	getValidationLevel (AcBr::ValidationLevel &) const

AcBr::ErrorStatus	getVolume (double &, double const &=((double ) 0), double &=((double ) 0)) const

AcBr::ErrorStatus	set (AcBrBrepData *)

AcBr::ErrorStatus	set (AcDbFullSubentPath const &)

AcBr::ErrorStatus	setEntity (void *, AcDbFullSubentPath &)

AcBr::ErrorStatus	setSubentPath (AcDbFullSubentPath &)

AcBr::ErrorStatus	setValidationLevel (AcBr::ValidationLevel const &= (AcBr::ValidationLevel ) NULL)

int	brepChanged (void) const

int	checkEntity (void) const

int	isNull (void) const

virtual	~AcBrEntity (void)

virtual int	isEqualTo (AcRxObject const *) const

void *	getEntity (void) const

Public Member Functions inherited from AcRxObject
virtual AcRxObject *	queryX (AcRxClass const *) const

AcRxObject *	x (AcRxClass const *) const

virtual AcRxClass *	isA (void) const

virtual AcRxObject *	clone (void) const

virtual AcRx::Ordering	comparedTo (AcRxObject const *) const

virtual Acad::ErrorStatus	copyFrom (AcRxObject const *)

bool	isKindOf (const AcRxClass *pOtherClass) const

virtual	~AcRxObject (void)

Public Member Functions inherited from AcRTTIObject
	AcRTTIObject ()

virtual	~AcRTTIObject ()

Public Member Functions inherited from AcObject
	AcObject ()

	AcObject (const AcObject &source)

virtual	~AcObject ()

void *	data () const

Protected Member Functions
	AcBrEntity (AcBrEntity const &)

	AcBrEntity (void)

Protected Member Functions inherited from AcRxObject
	AcRxObject (void)

virtual AcRxObject *	subQueryX (AcRxClass const *) const

Additional Inherited Members
Static Public Member Functions inherited from AcRxObject
static AcRxClass *__cdecl	desc (void)

static AcRxObject *__cdecl	cast (AcRxObject const *)

Protected Attributes inherited from AcObject
void *	m_pData

Detailed Description

Definition at line 33 of file AcBrEntity.h.

Constructor & Destructor Documentation

◆ ~AcBrEntity()

virtual AcBrEntity::~AcBrEntity ( void )

virtual

◆ AcBrEntity() [1/2]

AcBrEntity::AcBrEntity ( AcBrEntity const & )

protected

◆ AcBrEntity() [2/2]

AcBrEntity::AcBrEntity ( void )

protected

Member Function Documentation

◆ ACRX_DECLARE_MEMBERS()

AcBrEntity::ACRX_DECLARE_MEMBERS ( AcBrEntity )

◆ brepChanged()

int AcBrEntity::brepChanged ( void ) const

◆ checkEntity()

int AcBrEntity::checkEntity ( void ) const

◆ get() [1/2]

AcBr::ErrorStatus AcBrEntity::get ( AcBrBrepData *& ) const

◆ get() [2/2]

AcBr::ErrorStatus AcBrEntity::get ( AcDbFullSubentPath & ) const

◆ getBoundBlock()

AcBr::ErrorStatus AcBrEntity::getBoundBlock ( AcGeBoundBlock3d & ) const

◆ getBrep()

AcBr::ErrorStatus AcBrEntity::getBrep ( AcBrBrep & ) const

◆ getEntity()

void * AcBrEntity::getEntity ( void ) const

◆ getLineContainment()

AcBr::ErrorStatus AcBrEntity::getLineContainment	(	AcGeLinearEnt3d const &	,
		unsigned long const &	,
		unsigned long &	,
		AcBrHit *&	) const

◆ getMassProps()

AcBr::ErrorStatus AcBrEntity::getMassProps	(	AcBrMassProps &	,
		double const &	= ((double ) 0),
		double const &	= ((double ) 0),
		double &	= ((double ) 0) ) const

◆ getPerimeterLength()

AcBr::ErrorStatus AcBrEntity::getPerimeterLength	(	double &	,
		double const &	= ((double ) 0),
		double &	= ((double ) 0) ) const

◆ getPointContainment()

AcBr::ErrorStatus AcBrEntity::getPointContainment	(	AcGePoint3d const &	,
		AcGe::PointContainment &	,
		AcBrEntity *&	) const

◆ getSubentPath()

AcBr::ErrorStatus AcBrEntity::getSubentPath ( AcDbFullSubentPath & ) const

◆ getSurface()

AcBr::ErrorStatus AcBrEntity::getSurface ( AcGeSurface * ) const

◆ getSurfaceArea()

AcBr::ErrorStatus AcBrEntity::getSurfaceArea	(	double &	,
		double const &	= ((double ) 0),
		double &	= ((double ) 0) ) const

◆ getValidationLevel()

AcBr::ErrorStatus AcBrEntity::getValidationLevel ( AcBr::ValidationLevel & ) const

◆ getVolume()

AcBr::ErrorStatus AcBrEntity::getVolume	(	double &	,
		double const &	= ((double ) 0),
		double &	= ((double ) 0) ) const

◆ isEqualTo()

virtual int AcBrEntity::isEqualTo ( AcRxObject const * ) const

virtual

Reimplemented from AcRxObject.

◆ isNull()

int AcBrEntity::isNull ( void ) const

◆ set() [1/2]

AcBr::ErrorStatus AcBrEntity::set ( AcBrBrepData * )

◆ set() [2/2]

AcBr::ErrorStatus AcBrEntity::set ( AcDbFullSubentPath const & )

◆ setEntity()

AcBr::ErrorStatus AcBrEntity::setEntity	(	void *	,
		AcDbFullSubentPath &	)

◆ setSubentPath()

AcBr::ErrorStatus AcBrEntity::setSubentPath ( AcDbFullSubentPath & )

◆ setValidationLevel()

AcBr::ErrorStatus AcBrEntity::setValidationLevel ( AcBr::ValidationLevel const & = *(AcBr::ValidationLevel *) NULL )

The documentation for this class was generated from the following file:

AcBrEntity.h
