AcDbSubentRef Class Reference

#include <AcDbSubentRef.h>

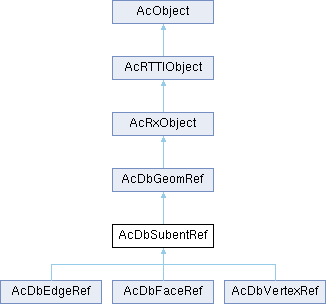

Inheritance diagram for AcDbSubentRef:

Public Member Functions
	ACRX_DECLARE_MEMBERS (AcDbSubentRef)
	AcDbSubentRef ()
virtual	~AcDbSubentRef ()
	AcDbSubentRef (const AcDbCompoundObjectId &, const AcDbSubentId &=kNullSubentId)
AcDbSubentRef &	operator= (const AcDbSubentRef &)
virtual Acad::ErrorStatus	copyFrom (const AcRxObject *) override
virtual void	reset () override
virtual bool	isEmpty () const override
virtual bool	isValid () const override
virtual const AcDbCompoundObjectId &	entity ()
virtual AcDbSubentId	subentId () const
virtual AcDbEntity *	createEntity () const override
virtual Acad::ErrorStatus	evaluateAndCacheGeometry () override
Public Member Functions inherited from AcDbGeomRef
	ACRX_DECLARE_MEMBERS (AcDbGeomRef)
Public Member Functions inherited from AcRxObject
virtual AcRxObject *	queryX (AcRxClass const *) const
AcRxObject *	x (AcRxClass const *) const
virtual AcRxClass *	isA (void) const
virtual AcRxObject *	clone (void) const
virtual AcRx::Ordering	comparedTo (AcRxObject const *) const
virtual int	isEqualTo (AcRxObject const *) const
bool	isKindOf (const AcRxClass *pOtherClass) const
virtual	~AcRxObject (void)
Public Member Functions inherited from AcRTTIObject
	AcRTTIObject ()
virtual	~AcRTTIObject ()
Public Member Functions inherited from AcObject
	AcObject ()
	AcObject (const AcObject &source)
virtual	~AcObject ()
void *	data () const

Protected Attributes
AcDbCompoundObjectId	m_entityId
Protected Attributes inherited from AcObject
void *	m_pData

Additional Inherited Members
Static Public Member Functions inherited from AcRxObject
static AcRxClass *__cdecl	desc (void)
static AcRxObject *__cdecl	cast (AcRxObject const *)
Protected Member Functions inherited from AcRxObject
	AcRxObject (void)
virtual AcRxObject *	subQueryX (AcRxClass const *) const

Detailed Description

Definition at line 23 of file AcDbSubentRef.h.

Constructor & Destructor Documentation

AcDbSubentRef() [1/2]

AcDbSubentRef::AcDbSubentRef

(

)

~AcDbSubentRef()

virtual AcDbSubentRef::~AcDbSubentRef ( )

virtual

AcDbSubentRef() [2/2]

AcDbSubentRef::AcDbSubentRef ( const AcDbCompoundObjectId & , const AcDbSubentId & = kNullSubentId )

explicit

Member Function Documentation

ACRX_DECLARE_MEMBERS()

AcDbSubentRef::ACRX_DECLARE_MEMBERS

(

AcDbSubentRef

)

copyFrom()

virtual Acad::ErrorStatus AcDbSubentRef::copyFrom ( const AcRxObject * )

overridevirtual

Reimplemented from AcRxObject.

Reimplemented in AcDbFaceRef, AcDbVertexRef, and AcDbEdgeRef.

createEntity()

virtual AcDbEntity * AcDbSubentRef::createEntity ( ) const

overridevirtual

Reimplemented from AcDbGeomRef.

Reimplemented in AcDbEdgeRef, AcDbFaceRef, and AcDbVertexRef.

entity()

virtual const AcDbCompoundObjectId & AcDbSubentRef::entity ( )

virtual

Reimplemented in AcDbVertexRef.

evaluateAndCacheGeometry()

virtual Acad::ErrorStatus AcDbSubentRef::evaluateAndCacheGeometry ( )

overridevirtual

Reimplemented from AcDbGeomRef.

Reimplemented in AcDbEdgeRef, AcDbFaceRef, and AcDbVertexRef.

isEmpty()

virtual bool AcDbSubentRef::isEmpty ( ) const

overridevirtual

Reimplemented from AcDbGeomRef.

Reimplemented in AcDbFaceRef, and AcDbEdgeRef.

isValid()

virtual bool AcDbSubentRef::isValid ( ) const

overridevirtual

Reimplemented from AcDbGeomRef.

Reimplemented in AcDbEdgeRef, AcDbFaceRef, and AcDbVertexRef.

operator=()

AcDbSubentRef & AcDbSubentRef::operator=

(

const AcDbSubentRef &

)

reset()

virtual void AcDbSubentRef::reset ( )

overridevirtual

Reimplemented from AcDbGeomRef.

Reimplemented in AcDbEdgeRef, AcDbFaceRef, and AcDbVertexRef.

subentId()

virtual AcDbSubentId AcDbSubentRef::subentId ( ) const

virtual

Reimplemented in AcDbVertexRef.

Member Data Documentation

m_entityId

AcDbCompoundObjectId AcDbSubentRef::m_entityId

protected

Definition at line 42 of file AcDbSubentRef.h.

---

The documentation for this class was generated from the following file:

• AcDbSubentRef.h
