#include <GiDummyGeometry.h>

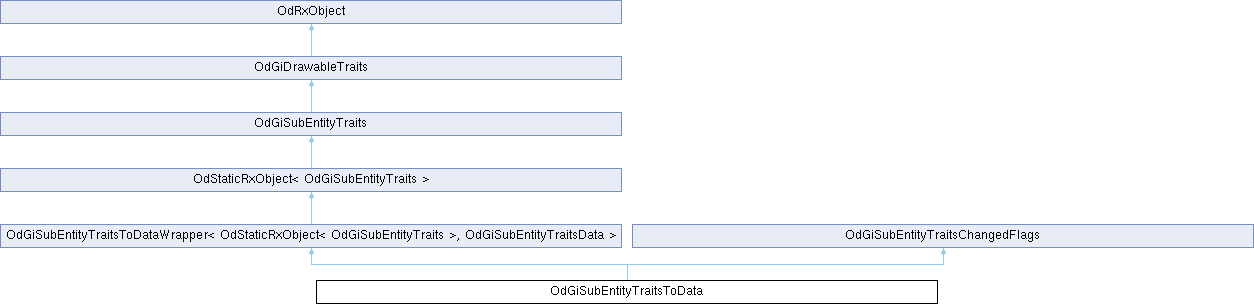

Inheritance diagram for OdGiSubEntityTraitsToData:

Public Member Functions
	OdGiSubEntityTraitsToData ()

	OdGiSubEntityTraitsToData (OdGiSubEntityTraitsData &pData)

Public Member Functions inherited from OdGiSubEntityTraitsToDataWrapper< OdStaticRxObject< OdGiSubEntityTraits >, OdGiSubEntityTraitsData >
	OdGiSubEntityTraitsToDataWrapper ()

void	setTraits (OdGiSubEntityTraitsData &pTraits)

OdGiSubEntityTraitsData &	getTraits () const

void	setColor (OdUInt16 n)

void	setTrueColor (const OdCmEntityColor &n)

void	setLayer (OdDbStub *n)

void	setLineType (OdDbStub *n)

void	setSelectionMarker (OdGsMarker)

void	setFillType (OdGiFillType n)

void	setFillPlane (const OdGeVector3d *=0)

void	setLineWeight (OdDb::LineWeight n)

void	setLineTypeScale (double n=1.0)

void	setThickness (double n)

void	setPlotStyleName (OdDb::PlotStyleNameType n, OdDbStub *m=0)

void	setMaterial (OdDbStub *n)

void	setMapper (const OdGiMapper *n)

void	setVisualStyle (const OdDbStub *n)

void	setTransparency (const OdCmTransparency &transparency)

void	setDrawFlags (OdUInt32 drawFlags)

void	setLockFlags (OdUInt32 lockFlags)

void	setSelectionGeom (bool bSelectionFlag)

void	setShadowFlags (OdGiSubEntityTraits::ShadowFlags shadowFlags)

void	setSectionable (bool bSectionableFlag)

void	setSelectionFlags (OdGiSubEntityTraits::SelectionFlags selectionFlags)

void	setSecondaryTrueColor (const OdCmEntityColor &n)

void	setLineStyleModifiers (const OdGiDgLinetypeModifiers *pLSMod)

void	setFill (const OdGiFill *pFill)

void	setAuxData (const OdGiAuxiliaryDataPtr &pAuxData)

OdUInt16	color () const

OdCmEntityColor	trueColor () const

OdDbStub *	layer () const

OdDbStub *	lineType () const

OdGiFillType	fillType () const

bool	fillPlane (OdGeVector3d &)

OdDb::LineWeight	lineWeight () const

double	lineTypeScale () const

double	thickness () const

OdDb::PlotStyleNameType	plotStyleNameType () const

OdDbStub *	plotStyleNameId () const

OdDbStub *	material () const

const OdGiMapper *	mapper () const

OdDbStub *	visualStyle () const

OdCmTransparency	transparency () const

OdUInt32	drawFlags () const

OdUInt32	lockFlags () const

bool	selectionGeom () const

OdGiSubEntityTraits::ShadowFlags	shadowFlags () const

bool	sectionable () const

OdGiSubEntityTraits::SelectionFlags	selectionFlags () const

OdCmEntityColor	secondaryTrueColor () const

const OdGiDgLinetypeModifiers *	lineStyleModifiers () const

const OdGiFill *	fill () const

OdGiAuxiliaryDataPtr	auxData () const

Public Member Functions inherited from OdStaticRxObject< OdGiSubEntityTraits >
void	addRef ()

void	release () ODRX_NOEXCEPT

Public Member Functions inherited from OdGiSubEntityTraits
	ODRX_DECLARE_MEMBERS (OdGiSubEntityTraits)

virtual bool	pushLineweightOverride (const OdGiLineweightOverride *pOverride)

virtual void	popLineweightOverride ()

virtual bool	pushPaletteOverride (const OdGiPalette *pOverride)

virtual void	popPaletteOverride ()

virtual OdUInt32	setupForEntity () const

virtual void	addLight (const OdDbStub *lightId)

Public Member Functions inherited from OdGiDrawableTraits
	ODRX_DECLARE_MEMBERS (OdGiDrawableTraits)

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	queryX (const OdRxClass *pClass) const

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual OdRxClass *	isA () const

virtual long	numRefs () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual void	copyFrom (const OdRxObject *pSource)

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Static Public Member Functions
static void	copyTraits (OdGiSubEntityTraits &pFrom, OdGiSubEntityTraits &pTo, OdUInt32 nFlags=kAllChanged)

Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Additional Inherited Members
Public Types inherited from OdGiSubEntityTraits
enum	DrawFlags { kNoDrawFlags = 0x0000 , kDrawBackfaces = 0x0001 , kDrawHatchGroup = 0x0002 , kDrawFrontfacesOnly = 0x0004 , kDrawGradientFill = 0x0008 , kDrawSolidFill = 0x0010 , kDrawNoLineWeight = 0x0020 , kDrawNoPlotstyle = 0x0080 , kDrawContourFill = 0x08000 , kDisableLayoutCache = 0x10000 , kDrawBoundaryForClipping = 0x20000 , kDrawBoundaryForClippingDrw = 0x40000 , kClipSetIsEmpty = 0x80000 , kDrawPolygonFill = 0x100000 , kExcludeFromViewExt = 0x200000 , kDrawDgLsPolyWithoutBreaks = 0x400000 , kPolygonProcessing = 0x800000 , kDisableAutoGenerateNormals = 0x1000000 , kDisableFillModeCheck = 0x2000000 , kDrawUnderlayReference = 0x4000000 , kLineStyleScaleOverride = 0x8000000 , kDisableDisplayClipping = 0x10000000 , kRegenTypeDependent2dDraw = 0x20000000 , kInternalDrawFlags = kDisableLayoutCache \| kClipSetIsEmpty \| kRegenTypeDependent2dDraw , kDrawGeometryForExtents = 0x04000 , kFxNoFillOnSelect = 0x40000000 , kInheritableDrawFlags }

enum	LockFlags { kNoLockFlags = 0x00000000 , kLockColors = 0x00000001 , kLockLineWeight = 0x00000002 , kLockLineType = 0x00000004 , kLockLineTypeScale = 0x00000008 , kLockLayer = 0x00000010 , kLockByBlockLayer = 0x00000020 , kKeepAuxDataAndLockFlags = 0x00000040 , kInheritableLockFlags = kLockColors \| kLockLineWeight \| kLockLineType \| kLockLineTypeScale \| kLockLayer \| kKeepAuxDataAndLockFlags }

enum	ShadowFlags { kShadowsCastAndReceive = 0 , kShadowsDoesNotCast = 1 , kShadowsDoesNotReceive = 2 , kShadowsIgnore = kShadowsDoesNotCast \| kShadowsDoesNotReceive }

enum	SelectionFlags { kNoSelectionFlags = 0 , kSelectionIgnore = 1 , kHighlightingGeometry = 2 , kHiddenInHighlight = 4 , kFxSubentitySelection = 0x80 }

enum	SubEntityHints { kHint2DAttributes = 1 , kHint3DAttributes = 2 , kHintAllAttributes = kHint2DAttributes \| kHint3DAttributes , kHintSnapModeOn = 4 , kHintDefaultState = kHintAllAttributes }

Public Types inherited from OdGiSubEntityTraitsChangedFlags
enum	ChangedTraits { kFirstChangedFlag = 1 , kColorChanged = kFirstChangedFlag << 0 , kLayerChanged = kFirstChangedFlag << 1 , kLineTypeChanged = kFirstChangedFlag << 2 , kFillTypeChanged = kFirstChangedFlag << 3 , kLineWeightChanged = kFirstChangedFlag << 4 , kLineTypeScaleChanged = kFirstChangedFlag << 5 , kThicknessChanged = kFirstChangedFlag << 6 , kPlotStyleChanged = kFirstChangedFlag << 7 , kMaterialChanged = kFirstChangedFlag << 8 , kMapperChanged = kFirstChangedFlag << 9 , kVisualStyleChanged = kFirstChangedFlag << 10 , kTransparencyChanged = kFirstChangedFlag << 11 , kDrawFlagsChanged = kFirstChangedFlag << 12 , kSelectionGeomChanged = kFirstChangedFlag << 13 , kShadowFlagsChanged = kFirstChangedFlag << 14 , kSectionableChanged = kFirstChangedFlag << 15 , kSelectionFlagsChanged = kFirstChangedFlag << 16 , kSecColorChanged = kFirstChangedFlag << 17 , kLSModifiersChanged = kFirstChangedFlag << 18 , kFillChanged = kFirstChangedFlag << 19 , kAwareFlagChanged = kFirstChangedFlag << 20 , kLockFlagsChanged = kFirstChangedFlag << 21 , kAuxDataChanged = kFirstChangedFlag << 22 , kAllChanged = 0x7FFFFF , kSomeChanged = kAllChanged }

Protected Attributes inherited from OdGiSubEntityTraitsToDataWrapper< OdStaticRxObject< OdGiSubEntityTraits >, OdGiSubEntityTraitsData >
OdGiSubEntityTraitsData *	m_pTraits

Detailed Description

Corresponding C++ library: TD_Gi <group OdGi_Classes>

Definition at line 1253 of file GiDummyGeometry.h.

Constructor & Destructor Documentation

◆ OdGiSubEntityTraitsToData() [1/2]

OdGiSubEntityTraitsToData::OdGiSubEntityTraitsToData ( )

inline

Default constructor for the OdGiSubEntityTraitsToData class.

Definition at line 1260 of file GiDummyGeometry.h.

◆ OdGiSubEntityTraitsToData() [2/2]

OdGiSubEntityTraitsToData::OdGiSubEntityTraitsToData ( OdGiSubEntityTraitsData & pData )

inline

Constructor for the OdGiSubEntityTraitsToData class. Initializes the object with the specified traits.

Parameters

pData [in] Entity traits to set.

Definition at line 1267 of file GiDummyGeometry.h.

Member Function Documentation

◆ copyTraits()

static void OdGiSubEntityTraitsToData::copyTraits	(	OdGiSubEntityTraits &	pFrom,
		OdGiSubEntityTraits &	pTo,
		OdUInt32	nFlags = kAllChanged )

inlinestatic

Copies traits of the pFrom object to the pTo object.

Parameters

pFrom	[in] Traits to copy from.
pTo	[in] Traits to copy to.
nFlags	[in] Traits flags.

Definition at line 1277 of file GiDummyGeometry.h.

The documentation for this class was generated from the following file:

GiDummyGeometry.h
