#include <IfcSoundValueAutoImpl.h>

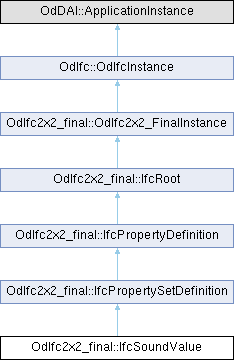

Inheritance diagram for OdIfc2x2_final::IfcSoundValue:

Public Member Functions
const OdDAIObjectId &	getSoundLevelTimeSeries () const

void	setSoundLevelTimeSeries (const OdDAIObjectId &SoundLevelTimeSeries)

double	getFrequency () const

void	setFrequency (double Frequency)

IfcDerivedMeasureValue	soundLevelSingleValue ()

	IfcSoundValue ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcPropertySetDefinition
void	getInvPropertyDefinitionOf (OdDAIObjectIds &PropertyDefinitionOf) const

void	getInvDefinesType (OdDAIObjectIds &DefinesType) const

Public Member Functions inherited from OdIfc2x2_final::IfcPropertyDefinition
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_SoundLevelTimeSeries

double	m_Frequency

OdDAI::Select	m_SoundLevelSingleValue

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A sound value or time series of sound values at a specified frequency.

Definition at line 41 of file Ifc2x2_Final/IfcSoundValueAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSoundValue()

OdIfc2x2_final::IfcSoundValue::IfcSoundValue ( )

Default constructor for the IfcSoundValue class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcSoundValue::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcSoundValue::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ getFrequency()

double OdIfc2x2_final::IfcSoundValue::getFrequency ( ) const

Returns the value of Frequency attribute. This attribute represents the the frequency of the sound.

Returns: Returns the value of Frequency attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcSoundValue::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ getSoundLevelTimeSeries()

const OdDAIObjectId & OdIfc2x2_final::IfcSoundValue::getSoundLevelTimeSeries ( ) const

Returns the value of SoundLevelTimeSeries attribute. This attribute represents time series of sound pressure or sound power values. For sound pressure levels, the values are measured in decibels at a reference pressure of 20 microPascals for the referenced octave band frequency. For sound power levels, the values are measured in decibels at a reference power of 1 picowatt(10^(-12) watt) for the referenced octave band frequency.

Returns: Returns the value of SoundLevelTimeSeries attribute.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcSoundValue::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcSoundValue::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcSoundValue::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcSoundValue::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcSoundValue::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ setFrequency()

void OdIfc2x2_final::IfcSoundValue::setFrequency ( double Frequency )

Sets the value of Frequency attribute. This attribute represents the the frequency of the sound.

Parameters

Frequency [in] Frequency attribute to set.

◆ setSoundLevelTimeSeries()

void OdIfc2x2_final::IfcSoundValue::setSoundLevelTimeSeries ( const OdDAIObjectId & SoundLevelTimeSeries )

Sets the value of SoundLevelTimeSeries attribute. This attribute represents time series of sound pressure or sound power values. For sound pressure levels, the values are measured in decibels at a reference pressure of 20 microPascals for the referenced octave band frequency. For sound power levels, the values are measured in decibels at a reference power of 1 picowatt(10^(-12) watt) for the referenced octave band frequency.

Parameters

SoundLevelTimeSeries [in] SoundLevelTimeSeries attribute to set.

◆ soundLevelSingleValue()

IfcDerivedMeasureValue OdIfc2x2_final::IfcSoundValue::soundLevelSingleValue ( )

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcSoundValue::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcSoundValue::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcSoundValue::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ unsetAttr() [1/2]

virtual void OdIfc2x2_final::IfcSoundValue::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ unsetAttr() [2/2]

virtual void OdIfc2x2_final::IfcSoundValue::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

Member Data Documentation

◆ m_Frequency

double OdIfc2x2_final::IfcSoundValue::m_Frequency

protected

Definition at line 205 of file Ifc2x2_Final/IfcSoundValueAutoImpl.h.

◆ m_SoundLevelSingleValue

OdDAI::Select OdIfc2x2_final::IfcSoundValue::m_SoundLevelSingleValue

protected

Definition at line 206 of file Ifc2x2_Final/IfcSoundValueAutoImpl.h.

◆ m_SoundLevelTimeSeries

OdDAIObjectId OdIfc2x2_final::IfcSoundValue::m_SoundLevelTimeSeries

protected

Definition at line 204 of file Ifc2x2_Final/IfcSoundValueAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x2_Final/IfcSoundValueAutoImpl.h
