#include <IfcRelSequenceAutoImpl.h>

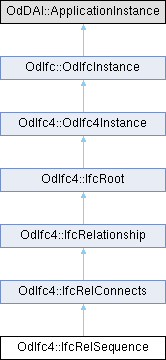

Inheritance diagram for OdIfc4::IfcRelSequence:

Public Member Functions
const OdDAIObjectId &	getRelatingProcess () const

void	setRelatingProcess (const OdDAIObjectId &RelatingProcess)

const OdDAIObjectId &	getRelatedProcess () const

void	setRelatedProcess (const OdDAIObjectId &RelatedProcess)

const OdDAIObjectId &	getTimeLag () const

void	setTimeLag (const OdDAIObjectId &TimeLag)

IfcSequenceEnum	getSequenceType () const

void	setSequenceType (IfcSequenceEnum SequenceType)

const OdAnsiString &	getUserDefinedSequenceType () const

void	setUserDefinedSequenceType (const OdAnsiString &UserDefinedSequenceType)

	IfcRelSequence ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_RelatingProcess

OdDAIObjectId	m_RelatedProcess

OdDAIObjectId	m_TimeLag

OdDAI::Enum	m_SequenceType

OdAnsiString	m_UserDefinedSequenceType

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcRelSequence is a sequential relationship between processes where one process must occur before the other in time and where the timing of the relationship can be described as a type of sequence. The relating process (IfcRelSequence.RelatingProcess) is considered to be the predecessor in the relationship (has precedence) whilst the related process (IfcRelSequence.RelatedProcess) is the successor. IfcRelSequence is defined as one-to-one relationship; therefore it assigns one predecessor to one successor.

\changes

IFC4 changes: Attribute SequenceType is optional. Attribute TimeLag is optional. Type of the attribute TimeLag changed from IfcTimeMeasure to IfcLagTime.

Definition at line 53 of file Ifc4/IfcRelSequenceAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcRelSequence()

OdIfc4::IfcRelSequence::IfcRelSequence ( )

Default constructor for the IfcRelSequence class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcRelSequence::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcRelConnects.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcRelSequence::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcRoot.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcRelSequence::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcRoot.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcRelSequence::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcRelConnects.

◆ getRelatedProcess()

const OdDAIObjectId & OdIfc4::IfcRelSequence::getRelatedProcess ( ) const

Returns the value of RelatedProcess attribute. This attribute represents reference to the process, that is the successor.

Returns: Returns the value of RelatedProcess attribute.

◆ getRelatingProcess()

const OdDAIObjectId & OdIfc4::IfcRelSequence::getRelatingProcess ( ) const

Returns the value of RelatingProcess attribute. This attribute represents reference to the process, that is the predecessor.

Returns: Returns the value of RelatingProcess attribute.

◆ getSequenceType()

IfcSequenceEnum OdIfc4::IfcRelSequence::getSequenceType ( ) const

Returns the value of SequenceType attribute. This attribute is the way in which the time lag applies to the sequence.

Returns: Returns the value of SequenceType attribute.

◆ getTimeLag()

const OdDAIObjectId & OdIfc4::IfcRelSequence::getTimeLag ( ) const

Returns the value of TimeLag attribute. This attribute represents time duration of the sequence, that is the time lag between thepredecessor and the successor as specified by theSequenceType.

Returns: Returns the value of TimeLag attribute.

◆ getUserDefinedSequenceType()

const OdAnsiString & OdIfc4::IfcRelSequence::getUserDefinedSequenceType ( ) const

Returns the value of UserDefinedSequenceType attribute. This attribute allows specification of user defined type of the sequence beyond the enumeration values (START_START, START_FINISH,FINISH_START, FINISH_FINISH) provided by SequenceTypeattribute of type IfcSequenceEnum.

Returns: Returns the value of UserDefinedSequenceType attribute.

Remarks: IFC4 CHANGE: Attribute added.

◆ inFields()

virtual OdResult OdIfc4::IfcRelSequence::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcRoot.

◆ isKindOf()

virtual bool OdIfc4::IfcRelSequence::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcRelConnects.

◆ outFields()

virtual OdResult OdIfc4::IfcRelSequence::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcRoot.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcRelSequence::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcRoot.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcRelSequence::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcRoot.

◆ setInverseCounterParts()

virtual void OdIfc4::IfcRelSequence::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

◆ setRelatedProcess()

void OdIfc4::IfcRelSequence::setRelatedProcess ( const OdDAIObjectId & RelatedProcess )

Sets the value of RelatedProcess attribute. This attribute represents reference to the process, that is the successor.

Parameters

RelatedProcess [in] Related process to set.

◆ setRelatingProcess()

void OdIfc4::IfcRelSequence::setRelatingProcess ( const OdDAIObjectId & RelatingProcess )

Sets the value of RelatingProcess attribute. This attribute represents reference to the process, that is the predecessor.

Parameters

RelatingProcess [in] Relating process to set.

◆ setSequenceType()

void OdIfc4::IfcRelSequence::setSequenceType ( IfcSequenceEnum SequenceType )

Sets the value of SequenceType attribute. This attribute is the way in which the time lag applies to the sequence.

Parameters

SequenceType [in] Sequence type to set.

◆ setTimeLag()

void OdIfc4::IfcRelSequence::setTimeLag ( const OdDAIObjectId & TimeLag )

Sets the value of TimeLag attribute. This attribute represents time duration of the sequence, that is the time lag between the predecessor and the successor as specified by theSequenceType.

Parameters

TimeLag [in] Time lag to set.

◆ setUserDefinedSequenceType()

void OdIfc4::IfcRelSequence::setUserDefinedSequenceType ( const OdAnsiString & UserDefinedSequenceType )

Sets the value of UserDefinedSequenceType attribute. UserDefinedSequenceType is allows specification of user defined type of the sequence beyond the enumeration values (START_START, START_FINISH,FINISH_START, FINISH_FINISH) provided by SequenceTypeattribute of type IfcSequenceEnum.

Parameters

UserDefinedSequenceType [in] User defined sequence type to set.

Remarks: IFC4 CHANGE: Attribute added.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcRelSequence::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcRoot.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcRelSequence::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcRoot.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcRelSequence::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcRelConnects.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcRelSequence::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcRoot.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcRelSequence::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcRoot.

Member Data Documentation

◆ m_RelatedProcess

OdDAIObjectId OdIfc4::IfcRelSequence::m_RelatedProcess

protected

Definition at line 285 of file Ifc4/IfcRelSequenceAutoImpl.h.

◆ m_RelatingProcess

OdDAIObjectId OdIfc4::IfcRelSequence::m_RelatingProcess

protected

Definition at line 284 of file Ifc4/IfcRelSequenceAutoImpl.h.

◆ m_SequenceType

OdDAI::Enum OdIfc4::IfcRelSequence::m_SequenceType

protected

Definition at line 287 of file Ifc4/IfcRelSequenceAutoImpl.h.

◆ m_TimeLag

OdDAIObjectId OdIfc4::IfcRelSequence::m_TimeLag

protected

Definition at line 286 of file Ifc4/IfcRelSequenceAutoImpl.h.

◆ m_UserDefinedSequenceType

OdAnsiString OdIfc4::IfcRelSequence::m_UserDefinedSequenceType

protected

Definition at line 288 of file Ifc4/IfcRelSequenceAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcRelSequenceAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcRelSequence()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getRelatedProcess()

◆ getRelatingProcess()

◆ getSequenceType()

◆ getTimeLag()

◆ getUserDefinedSequenceType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setInverseCounterParts()

◆ setRelatedProcess()

◆ setRelatingProcess()

◆ setSequenceType()

◆ setTimeLag()

◆ setUserDefinedSequenceType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_RelatedProcess

◆ m_RelatingProcess

◆ m_SequenceType

◆ m_TimeLag

◆ m_UserDefinedSequenceType
