OdIfc4x1::IfcStyleModel Class Reference

#include <IfcStyleModelAutoImpl.h>

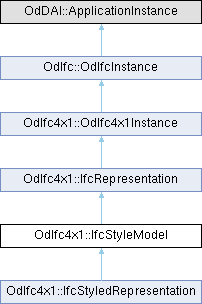

Inheritance diagram for OdIfc4x1::IfcStyleModel:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
Public Member Functions inherited from OdIfc4x1::IfcRepresentation
const OdDAIObjectId &	getContextOfItems () const
void	setContextOfItems (const OdDAIObjectId &ContextOfItems)
const OdAnsiString &	getRepresentationIdentifier () const
void	setRepresentationIdentifier (const OdAnsiString &RepresentationIdentifier)
const OdAnsiString &	getRepresentationType () const
void	setRepresentationType (const OdAnsiString &RepresentationType)
void	getItems (OdDAIObjectIds &Items) const
OdDAI::SetOfOdDAIObjectId &	items ()
void	getInvRepresentationMap (OdDAIObjectIds &RepresentationMap) const
void	getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const
void	getInvOfProductRepresentation (OdDAIObjectIds &OfProductRepresentation) const
	IfcRepresentation ()
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual void	setInverseCounterParts () override
virtual OdRxValue	getAttr (const char *attrName) const override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Attributes inherited from OdIfc4x1::IfcRepresentation
OdDAIObjectId	m_ContextOfItems
OdAnsiString	m_RepresentationIdentifier
OdAnsiString	m_RepresentationType
OdDAI::SetOfOdDAIObjectId	m_Items
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Detailed Description

IfcStyleModel represents the concept of a particular presentation style defined for a material (or other characteristic) of a product or a product component within a representation context. This representation context can (but does not have to be) a geometric representation context.

IfcStyleModel can be a style representation (presentation style) of a material (via IfcMaterialDefinitionRepresentation), potentially differentiated for different representation contexts (for example, different material hatching depending on the scale of the target representation context).

Remarks

This definition may not be instantiated.

Definition at line 49 of file Ifc4x1/IfcStyleModelAutoImpl.h.

Member Function Documentation

getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcStyleModel::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcRepresentation.

Reimplemented in OdIfc4x1::IfcStyledRepresentation.

isKindOf()

virtual bool OdIfc4x1::IfcStyleModel::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcRepresentation.

Reimplemented in OdIfc4x1::IfcStyledRepresentation.

type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcStyleModel::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcRepresentation.

Reimplemented in OdIfc4x1::IfcStyledRepresentation.

---

The documentation for this class was generated from the following file:

• Ifc4x1/IfcStyleModelAutoImpl.h
