OdSiEntity Struct Reference

#include <SiSpatialIndex.h>

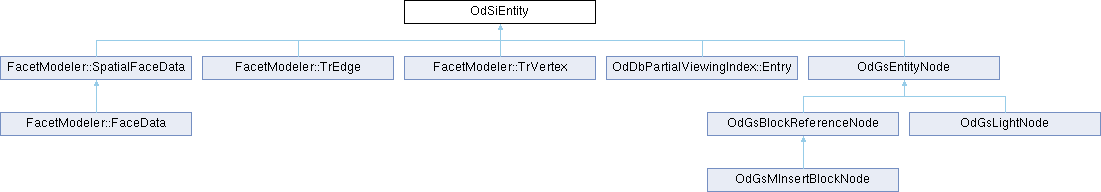

Inheritance diagram for OdSiEntity:

Public Member Functions
virtual bool	extents (OdGeExtents3d &extents) const =0

Detailed Description

This class represents Spatial Index Entity objects. Corresponding C++ library: SpatialIndex

<group OdSi_Classes>

Definition at line 83 of file SiSpatialIndex.h.

Member Function Documentation

extents()

virtual bool OdSiEntity::extents ( OdGeExtents3d & extents ) const

pure virtual

Returns the extents of this Entity object.

Parameters

extents

[out] Receives the extents.

Returns

Returns true if and only if this Entity object has extents.

Implemented in FacetModeler::SpatialFaceData, FacetModeler::TrEdge, FacetModeler::TrVertex, OdDbPartialViewingIndex::Entry, and OdGsEntityNode.

---

The documentation for this struct was generated from the following file:

• SiSpatialIndex.h
