OdGsEntityNode Class Reference

#include <GsEntityNode.h>

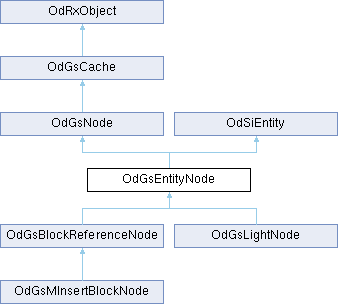

Inheritance diagram for OdGsEntityNode:

Classes
class	Metafile
class	MetafileEx
class	MetafileHolder
class	MetafilePtrArray
class	TransformedExtents

Public Types
enum	MetafileCompatibilityLevel { kSkipCheckCompatible = 0 , kCheckViewChanges = 1 , kCheckCompatibleView = 2 , kFindCompatible = 3 }
typedef OdSmartPtr< Metafile >	MetafilePtr

Public Member Functions
OdGsEntityNode::MetafilePtr	metafileAt (int metafileIndex) const
void	setMetafile (OdGsEntityNode::Metafile *metafiles)
void	setMetafileAt (int metafileIndex, OdGsEntityNode::Metafile *pMetafile)
void	convertToViewportDependent (const OdGsUpdateContext &ctx)
OdGsEntityNode::Metafile *	metafile (const OdGsViewImpl &view, OdGsUpdateContext *ctx, MetafileCompatibilityLevel findCompatibleLevel=kFindCompatible)
void	setMetafile (OdGsUpdateContext &ctx, OdGsEntityNode::Metafile *metafiles)
OdRxObject *	findCompatibleCache (const OdGsViewImpl &keyView, OdGsUpdateContext *ctx, OdUInt32 awareMask=0)
OdRxObject *	findFirstGsMetafile (const OdGsViewImpl &view, bool *bContainsNested=nullptr, MetafileCompatibilityLevel findCompatibleLevel=kSkipCheckCompatible)
	ODRX_DECLARE_MEMBERS (OdGsEntityNode)
	OdGsEntityNode (OdGsBaseModel *pModel, const OdGiDrawable *pUnderlyingDrawable, bool bSetGsNode=false)
	~OdGsEntityNode ()
void	setNextEntity (OdGsEntityNode *pNextEntity)
void	setNextEntity (OdUInt32 nVpId, OdGsEntityNode *pNextEntity)
OdGsEntityNode *	nextEntity ()
OdGsEntityNode *	nextEntity (OdUInt32 nVpId)
const OdGsEntityNode *	nextEntity () const
const OdGsEntityNode *	nextEntity (OdUInt32 nVpId) const
OdUInt32	numNextEntity () const
void	enableMultipleNextEntities (OdUInt32 nMaxVpId)
void	update (OdGsUpdateContext &ctx, OdGsContainerNode *pParent, OdSiSpatialIndex *pParentIndex)
void	updateVisible (OdGsViewImpl *pViewImpl)
virtual OdGsEntityNode::MetafilePtr	regenMetafile (OdGsUpdateContext &ctx, OdUInt32 vpDepFlags)
virtual OdUInt32	awareFlags (OdUInt32 viewportId) const
virtual ENodeType	nodeType () const
virtual bool	isReference () const
virtual bool	isLight () const
virtual bool	isSelfReferential () const
void	display (OdGsDisplayContext &ctx)
void	select (OdGsBaseVectorizer &view)
void	invalidate (OdGsContainerNode *pParent, OdGsViewImpl *pView, OdUInt32 mask)
bool	extents (OdGeExtents3d &extents) const
bool	spatiallyIndexed () const
bool	spatiallyIndexed (OdUInt32 nVpId) const
void	setSpatiallyIndexed (bool spatiallyIndexed)
void	setSpatiallyIndexed (OdUInt32 nVpId, bool spatiallyIndexed)
bool	owned () const
bool	owned (OdUInt32 nVpId) const
void	setOwned (bool owned)
void	setOwned (OdUInt32 nVpId, bool owned)
bool	markedByUpdateManager () const
void	setMarkedByUpdateManager (bool marked)
bool	hasExtents () const
const OdGeExtents3d &	extents () const
virtual bool	isEmpty ()
virtual bool	hasFrozenLayers ()
bool	markedToSkip (unsigned mask)
void	markToSkip (unsigned mask, bool markToSkip)
void	markToSkipAll ()
void	destroy ()
virtual bool	layersChanged (OdGsViewImpl &view) const
bool	markedAsNonSelectable () const
void	markAsNonSelectable (bool val)
bool	isMarkedSkipSelection () const
void	markSkipSelection (bool val)
bool	isMarkedErased () const
void	markErased (bool val)
bool	isInWorkset () const
void	setInWorkset (bool val)
bool	isRegenOnDraw () const
void	setRegenOnDraw (bool val)
bool	isSingleThreaded () const
void	setSingleThreaded (bool val)
bool	skipDisplayClipping () const
void	setSkipDisplayClipping (bool bOn)
bool	isXref () const
virtual void	highlight (bool bDoIt, bool bWholeBranch, OdUInt32 nSelStyle=0)
void	hide (bool bDoIt, bool bSelectable=false, bool bWholeBranch=true)
void	setStateBranch (OdGsStateBranch *pBr)
void	resetStateBranch (OdGsStateBranch::BranchType branchType=OdGsStateBranch::kHighlightingBranch)
OdGsStateBranch *	stateBranch (OdGsStateBranch::BranchType branchType=OdGsStateBranch::kHighlightingBranch)
const OdGsStateBranch *	stateBranch (OdGsStateBranch::BranchType branchType=OdGsStateBranch::kHighlightingBranch) const
bool	hasAnyStateBranch () const
virtual void	playAsGeometry (OdGsBaseVectorizer &view, EMetafilePlayMode eMode)
bool	extents (const OdGsView *pView, OdGeExtents3d &ext) const
OdDb::LineWeight	getMaxLineweightUsed () const
void	addMaxLineweightUsed (OdDb::LineWeight lwd)
void	setMaxLineweightUsed (OdDb::LineWeight lwd)
bool	entityUnerased () const
void	setEntityUnerased (bool flag)
bool	isInvisible () const
bool	isExtentsOutOfModelSpace () const
void	setExtentsOutOfModelSpace (bool flag)
void	resetInvalidVpFlag ()
void	setAsLightSourceOwner (bool bSet)
bool	isLightSourceOwner () const
bool	isRequireRegenOnHighlightChange () const
virtual void	makeStock ()
virtual void	releaseStock ()
virtual void	propagateLayerChangesStock ()
bool	saveNodeState (OdGsFiler *pFiler, OdGsBaseVectorizer *pVectorizer=NULL) const
bool	loadNodeState (OdGsFiler *pFiler, OdGsBaseVectorizer *pVectorizer=NULL)
void	transformExtents (OdGeExtents3d &ext, const OdGsStateBranch *pTransformBr=NULL, bool bInverse=false) const
void	insertToSpatialIndex (OdUInt32 nVpId, OdSiSpatialIndex &parentIndex, const OdGeExtents3d &prevExtents)
void	addContentToUpdateManager (OdUInt32 viewportId, OdGsUpdateManager *pManager, const UpdateManagerContext &context)
bool	isMetafilesCompatible (const OdGsViewImpl *pView1, const OdGsViewImpl *pView2, OdGsUpdateContext *ctx)
Public Member Functions inherited from OdGsNode
bool	invalidVp () const
void	setToDrawable (const OdGiDrawable *pUnderlyingDrawable)
	ODRX_DECLARE_MEMBERS (OdGsNode)
void *	operator new (size_t)
void	operator delete (void *)
void	addRef ()
void	release () ODRX_NOEXCEPT
	OdGsNode (OdGsBaseModel *pModel, const OdGiDrawable *pUnderlyingDrawable)
virtual	~OdGsNode ()
OdGsBaseModel *	baseModel () const
OdGsModel *	model () const
bool	isContainer () const
bool	isSyncDrawable () const
OdGiDrawablePtr	underlyingDrawable () const
OdDbStub *	underlyingDrawableId () const
bool	isHighlighted () const
bool	isHighlightedAll () const
bool	isHidden () const
bool	isSelectableIfHidden () const
bool	isHiddenAll () const
OdUInt32	selectionStyle () const
bool	hasSelectionStyle () const
OdUInt32	userFlags () const
void	setUserFlags (OdUInt32 val)
virtual bool	saveClientNodeState (OdGsFiler *pFiler, OdGsBaseVectorizer *pVectorizer) const
virtual bool	loadClientNodeState (OdGsFiler *pFiler, OdGsBaseVectorizer *pVectorizer)
virtual bool	postprocessNodeLoading (OdGsFiler *pFiler)
	TD_USING (OdGsCache::extents)
bool	modelExtents (OdGeExtents3d &ext, bool bUseModelTf=true) const
bool	modelExtents (const OdGsView *pView, OdGeExtents3d &ext, bool bUseModelTf=true) const
virtual void	setDrawableNull ()
Public Member Functions inherited from OdGsCache
	ODRX_DECLARE_MEMBERS (OdGsCache)
Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()
	OdRxObject ()
virtual	~OdRxObject ()
virtual OdRxObject *	queryX (const OdRxClass *pClass) const
virtual OdRxObject *	x (const OdRxClass *pClass) const
virtual OdRxClass *	isA () const
virtual long	numRefs () const
bool	isKindOf (const OdRxClass *pClass) const
virtual OdRxObjectPtr	clone () const
virtual void	copyFrom (const OdRxObject *pSource)
virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const
virtual bool	isEqualTo (const OdRxObject *pOther) const

Static Public Member Functions
static void *	Alloc (size_t nBytes)
static void	Free (void *pMemBlock)
static void *	Realloc (void *pMemBlock, size_t newSize, size_t)
static OdGsEntityNode::MetafilePtr	getEmptyMetafile (OdUInt32 flags, OdGsLayerNode *pLayerNode=NULL)
static unsigned	markToSkipMask (OdUInt32 threadIndex)
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)
static OdRxClass *	desc ()
static void	rxInit ()
static void	rxUninit ()

Protected Types
enum	{   kHasExtents = OdGsNode::kLastFlag << 1 , kSpatiallyIndexed = OdGsNode::kLastFlag << 2 , kInWorkset = OdGsNode::kLastFlag << 3 , kSingleThreaded = OdGsNode::kLastFlag << 4 ,   kOwned = OdGsNode::kLastFlag << 5 , kDrawableRegenDraw = OdGsNode::kLastFlag << 6 , kEntityUnerased = OdGsNode::kLastFlag << 7 , kInvisible = OdGsNode::kLastFlag << 8 ,   kExtentsOutOfMS = OdGsNode::kLastFlag << 9 , kNonSelectable = OdGsNode::kLastFlag << 10 , kSkipSelection = OdGsNode::kLastFlag << 11 , kErased = OdGsNode::kLastFlag << 12 ,   kDrawableIsXref = OdGsNode::kLastFlag << 13 , kMultilistNextPtr = OdGsNode::kLastFlag << 14 , kLastFlag = kMultilistNextPtr }
enum	{   kLineweightBit1 = (1 << 0) , kLineweightBit2 = (1 << 1) , kLineweightOffset = 0 , kLineweightBit3 = (1 << 2) ,   kLineweightBit4 = (1 << 3) , kLineweightBit5 = (1 << 4) , kLineweightBit6 = (1 << 5) , kLineweightBit7 = (1 << 6) ,   kLineweightBit8 = (1 << 7) , kLineweightBitMask = kLineweightBit1 | kLineweightBit2 | kLineweightBit3 | kLineweightBit4 | kLineweightBit5 | kLineweightBit6 | kLineweightBit7 | kLineweightBit8 , kLightSourceOwner = (1 << 8) , kRegenOnHighlight = (1 << 9) ,   kMarkedByUpdateManager = (1 << 10) , kSkipDisplayClipping = (1 << 11) , kLastEntFlag = kSkipDisplayClipping }
enum	{ kMarkedToSkipFirst = 0x00000001 , kMarkedToSkipLast = kMarkedToSkipFirst << 30 , kMarkedToSkipAll = 0x7FFFFFFF }
Protected Types inherited from OdGsNode
enum	{   kPersistent = 0x00000001 , kContainer = 0x00000002 , kHLT = 0x00000004 , kHLT_All = 0x00000008 ,   kSyncDrawable =0x00000010 , kHidden = 0x00000020 , kSelectHidden =0x00000040 , kHiddenAll = 0x00000080 ,   kSelStyle = 0x00000100 , kLastFlag = kSelStyle }
enum	{ kInvalidateVp = 0x80000000 }

Protected Member Functions
virtual void	propagateLayerChanges (OdGsViewImpl &view)
MetafilePtrArray &	metafileArray ()
const MetafilePtrArray &	metafileArray () const
OdGsEntityNode::MetafilePtr	metafile () const
void	setExtentsFromMetafiles ()
bool	findMetafileInStock (OdGsUpdateContext &ctx)
void	setExtentsFlags ()
Protected Member Functions inherited from OdGsNode
void	setInvalidVp (bool val)
void	clearDrawable ()
void	setSelectionStyleImpl (OdUInt32 nStyle)
OdUInt32	getSelectionStyleImpl () const
	OdGsNode (const OdGsNode &c)

Protected Attributes
OdGeExtents3d	m_extents
OdGsStateBranchPtr	m_stateBranch
MetafileHolder	m_metafile
OdUInt32	m_entFlags
Protected Attributes inherited from OdGsNode
OdGsNode *	m_pPrev
OdGsNode *	m_pNext
OdGsBaseModel *	m_pModel
void *	m_underlyingDrawable
OdUInt32	m_flags
OdUInt32	m_userFlags

Friends
class	Metafile
class	OdGsModuleObject
class	OdGsBlockReferenceNode

Additional Inherited Members
Static Protected Attributes inherited from OdGsNode
static GS_STATIC_EXPORT AllocatorArray	s_aAlloc

Detailed Description

This class implements OdGsNode descendant objects that can serve as containers for other OdGsNode objects.

Corresponding C++ library: TD_Gs <group OdGs_Classes>

Definition at line 126 of file GsEntityNode.h.

Member Typedef Documentation

MetafilePtr

typedef OdSmartPtr<Metafile> OdGsEntityNode::MetafilePtr

This template class is a specialization of the OdSmartPtr class for Metafile object pointers.

Definition at line 288 of file GsEntityNode.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

protected

Enumerator
kMarkedToSkipFirst
kMarkedToSkipLast
kMarkedToSkipAll

Definition at line 747 of file GsEntityNode.h.

anonymous enum

anonymous enum

protected

Enumerator
kHasExtents
kSpatiallyIndexed
kInWorkset
kSingleThreaded
kOwned
kDrawableRegenDraw
kEntityUnerased
kInvisible
kExtentsOutOfMS
kNonSelectable
kSkipSelection
kErased
kDrawableIsXref
kMultilistNextPtr
kLastFlag

Definition at line 710 of file GsEntityNode.h.

anonymous enum

anonymous enum

protected

Enumerator
kLineweightBit1
kLineweightBit2
kLineweightOffset
kLineweightBit3
kLineweightBit4
kLineweightBit5
kLineweightBit6
kLineweightBit7
kLineweightBit8
kLineweightBitMask
kLightSourceOwner
kRegenOnHighlight
kMarkedByUpdateManager
kSkipDisplayClipping
kLastEntFlag

Definition at line 729 of file GsEntityNode.h.

MetafileCompatibilityLevel

enum OdGsEntityNode::MetafileCompatibilityLevel

This enumeration used with OdGsEntityNode::metafile method.

Enumerator
kSkipCheckCompatible	Avoid check of viewport compatibility.
kCheckViewChanges	Check for view changes.
kCheckCompatibleView	Avoid check for view changes, but find compatible metafile for other viewport.
kFindCompatible	Check for view changes and try to find compatible for other viewports.

Definition at line 665 of file GsEntityNode.h.

Constructor & Destructor Documentation

OdGsEntityNode()

OdGsEntityNode::OdGsEntityNode	(	OdGsBaseModel *	pModel,
		const OdGiDrawable *	pUnderlyingDrawable,
		bool	bSetGsNode = false )

Constructor for the OdGsEntityNode class.

Parameters

pModel	[in] Pointer to the BaseModel object.
pUnderlyingDrawable	[in] Pointer to the underlying Drawable object.
bSetGsNode	[in] Flag that controls whether to set GS node to the underlying drawable.

~OdGsEntityNode()

OdGsEntityNode::~OdGsEntityNode

(

)

Destructor for the OdGsEntityNode class.

Member Function Documentation

addContentToUpdateManager()

void OdGsEntityNode::addContentToUpdateManager ( OdUInt32 viewportId, OdGsUpdateManager * pManager, const UpdateManagerContext & context )

virtual

Adds content to the update manager

Parameters

viewportId	[in] Viewport ID.
pManager	[in] Pointer to a manager for which to add content.
context	[in] Update manager context.

Reimplemented from OdGsNode.

addMaxLineweightUsed()

void OdGsEntityNode::addMaxLineweightUsed ( OdDb::LineWeight lwd )

inline

Sets a maximal lineweight for this entity node if it is greater than current maximal lineweight for this entity node.

Parameters

lwd	[in] New lineweight value to compare and set if necessary.

Definition at line 1738 of file GsEntityNode.h.

Alloc()

static void * OdGsEntityNode::Alloc ( size_t nBytes )

inlinestatic

Definition at line 326 of file GsEntityNode.h.

awareFlags()

virtual OdUInt32 OdGsEntityNode::awareFlags ( OdUInt32 viewportId ) const

virtual

Returns the Aware flags for the specified Viewport for this ContainerNode object.

Parameters

viewportId

[in] Viewport ID.

Remarks

awareFlags() returns a combination of zero or more of the following:

Value kSuppressViewportDraw 0x01 kDrawInvisibleEnts 0x02 kDrawLayerOff 0x04 kDrawLayerFrozen 0x08 kIgnoreFillPlane 0x10 kFillPlaneSet 0x20

Reimplemented in OdGsBlockReferenceNode.

convertToViewportDependent()

void OdGsEntityNode::convertToViewportDependent

(

const OdGsUpdateContext &

ctx

)

Convert a RegenType dependent cache to Viewport dependent cache.

Parameters

ctx	[in] Current update context.

destroy()

void OdGsEntityNode::destroy ( )

inlinevirtual

Destroys this node.

Implements OdGsNode.

Reimplemented in OdGsMInsertBlockNode.

Definition at line 1012 of file GsEntityNode.h.

display()

void OdGsEntityNode::display ( OdGsDisplayContext & ctx )

virtual

Paints the specified view with the cached data associated with this Node object.

Parameters

ctx	[in] Current GS update context.

Implements OdGsNode.

enableMultipleNextEntities()

void OdGsEntityNode::enableMultipleNextEntities ( OdUInt32 nMaxVpId )

inline

Enable multiple entity links.

Parameters

nMaxVpId

[in] Viewport ID.

Definition at line 1332 of file GsEntityNode.h.

entityUnerased()

bool OdGsEntityNode::entityUnerased ( ) const

inline

Retrieves the entity unerased flag for this object.

Returns

true if the entity unerased flag is set, false otherwise.

Definition at line 1512 of file GsEntityNode.h.

extents() [1/3]

const OdGeExtents3d & OdGsEntityNode::extents ( ) const

inline

Returns extents of the underlying GiDrawable object(s).

Definition at line 1383 of file GsEntityNode.h.

extents() [2/3]

bool OdGsEntityNode::extents ( const OdGsView * pView, OdGeExtents3d & ext ) const

virtual

Retrieves extents of this node object.

Parameters

pView	[in] Pointer to a GS view.
ext	[out] Reference to the OdGeExtents3d object which will receive current entity node extents.

Reimplemented from OdGsNode.

extents() [3/3]

bool OdGsEntityNode::extents ( OdGeExtents3d & extents ) const

virtual

Returns the extents of the underlying GiDrawable object(s) associated with this Node object.

Parameters

extents

[out] Receives the extents.

Returns

Returns true if and only if the GiDrawable object(s) have extents.

Implements OdGsCache.

findCompatibleCache()

OdRxObject * OdGsEntityNode::findCompatibleCache	(	const OdGsViewImpl &	keyView,
		OdGsUpdateContext *	ctx,
		OdUInt32	awareMask = 0 )

Finds compatible cache for the passed view.

Parameters

keyView	[in] View implementation object for which to find compatible cache.
ctx	[in] Current update context.
awareMask	[in] Aware flags.

findFirstGsMetafile()

OdRxObject * OdGsEntityNode::findFirstGsMetafile	(	const OdGsViewImpl &	view,
		bool *	bContainsNested = nullptr,
		MetafileCompatibilityLevel	findCompatibleLevel = kSkipCheckCompatible )

Finds first Gs metafile for requested view.

Parameters

view	[in] View object for which metafile is to be returned.
bContainsNested	[out] Optionally returns true if metafile contains nested metafile entries.
findCompatibleLevel	[in] Check for viewport changes if and only if true.

findMetafileInStock()

bool OdGsEntityNode::findMetafileInStock ( OdGsUpdateContext & ctx )

protected

Free()

static void OdGsEntityNode::Free ( void * pMemBlock )

inlinestatic

Definition at line 327 of file GsEntityNode.h.

getEmptyMetafile()

static OdGsEntityNode::MetafilePtr OdGsEntityNode::getEmptyMetafile ( OdUInt32 flags, OdGsLayerNode * pLayerNode = NULL )

static

Retrieves a static instance of the empty metafile with a certain set of aware flags frequently used in the model. This allows to share the same data without duplication.

Parameters

flags	[in] A set of aware flags.
pLayerNode	[in] Layer node with which a starting geometry portion of a metafile is associated.

getMaxLineweightUsed()

OdDb::LineWeight OdGsEntityNode::getMaxLineweightUsed ( ) const

inlinevirtual

Retrieves a maximal lineweight for this entity node.

Returns

lineweight in 100ths of a millimeter

Reimplemented from OdGsNode.

Definition at line 1733 of file GsEntityNode.h.

hasAnyStateBranch()

bool OdGsEntityNode::hasAnyStateBranch ( ) const

inline

Returns true in case if any type of state branch available.

Definition at line 1722 of file GsEntityNode.h.

hasExtents()

bool OdGsEntityNode::hasExtents ( ) const

inline

Returns true if and only if the underlying GiDrawable object(s) have extents.

Definition at line 1378 of file GsEntityNode.h.

hasFrozenLayers()

virtual bool OdGsEntityNode::hasFrozenLayers ( )

virtual

Checks whether this node has frozen layers.

Returns

true if this node has frozen layers, false otherwise.

hide()

void OdGsEntityNode::hide ( bool bDoIt, bool bSelectable = false, bool bWholeBranch = true )

inlinevirtual

Hides the specified node.

Parameters

bDoit	[in] Specifies should node be hidden (true) or shown (false)
bSelectable	[in] Specifies should node be selectable if it is hidden
bWholeBranch	[in] Specifies should node hidden state be changed with all branches

Reimplemented from OdGsNode.

Definition at line 1637 of file GsEntityNode.h.

highlight()

void OdGsEntityNode::highlight ( bool bDoIt, bool bWholeBranch, OdUInt32 nSelStyle = 0 )

inlinevirtual

Highlights or unhighlights this node and the branch of child node, if specified.

Parameters

bDoIt	[in] Flag that specifies whether to highlight this entity node.
bWholeBranch	[in] Flag that specifies whether to highlight or unhighlight a branch of subentities and nested entities, if specified with setHlBranch method.
nSelStyle	[in] Optional selection style index.

Reimplemented from OdGsNode.

Reimplemented in OdGsMInsertBlockNode.

Definition at line 1630 of file GsEntityNode.h.

insertToSpatialIndex()

void OdGsEntityNode::insertToSpatialIndex	(	OdUInt32	nVpId,
		OdSiSpatialIndex &	parentIndex,
		const OdGeExtents3d &	prevExtents )

invalidate()

void OdGsEntityNode::invalidate ( OdGsContainerNode * pParent, OdGsViewImpl * pView, OdUInt32 mask )

virtual

Invalidates this entity node.

Parameters

pParent	[in] Parent container node.
view	[in] BaseVectorizeView object for which data are to be invalidated.
mask	[in] Mask.

Implements OdGsNode.

Reimplemented in OdGsLightNode, and OdGsMInsertBlockNode.

isEmpty()

virtual bool OdGsEntityNode::isEmpty ( )

virtual

Checks whether this node has no graphical content.

Returns

true if the node has no graphical content, false otherwise.

Reimplemented in OdGsBlockReferenceNode.

isExtentsOutOfModelSpace()

bool OdGsEntityNode::isExtentsOutOfModelSpace ( ) const

inline

Returns flag state which indicated that extents of this node is too large to store it in spatial index tree.

Returns

true if extents of this node is too large to store it in spatial index tree or false elsewhere.

Definition at line 1575 of file GsEntityNode.h.

isInvisible()

bool OdGsEntityNode::isInvisible ( ) const

inline

Checks whether this entity node is invisible.

Returns

true if this entity node is invisible, false otherwise.

Definition at line 1522 of file GsEntityNode.h.

isInWorkset()

bool OdGsEntityNode::isInWorkset ( ) const

inline

Definition at line 1600 of file GsEntityNode.h.

isLight()

virtual bool OdGsEntityNode::isLight ( ) const

inlinevirtual

Reimplemented in OdGsLightNode.

Definition at line 861 of file GsEntityNode.h.

isLightSourceOwner()

bool OdGsEntityNode::isLightSourceOwner ( ) const

inline

Checks whether this entity node is an owner of a light source.

Returns

true if this entity node is an owner of a light source, false otherwise.

Definition at line 1590 of file GsEntityNode.h.

isMarkedErased()

bool OdGsEntityNode::isMarkedErased ( ) const

inline

Checks whether this node is marked as erased.

Returns

true if this node is marked as erased, false otherwise.

Definition at line 1555 of file GsEntityNode.h.

isMarkedSkipSelection()

bool OdGsEntityNode::isMarkedSkipSelection ( ) const

inline

Definition at line 1545 of file GsEntityNode.h.

isMetafilesCompatible()

bool OdGsEntityNode::isMetafilesCompatible ( const OdGsViewImpl * pView1, const OdGsViewImpl * pView2, OdGsUpdateContext * ctx )

virtual

Checks whether the passed views have compatible metafiles.

Parameters

pView1	[in] Pointer to the first implementation view to compare metafiles.
pView12	[in] Pointer to the second implementation view to compare metafiles.
ctx	[in] GS update context.

Reimplemented from OdGsNode.

isReference()

virtual bool OdGsEntityNode::isReference ( ) const

inlinevirtual

Reimplemented in OdGsBlockReferenceNode.

Definition at line 860 of file GsEntityNode.h.

isRegenOnDraw()

bool OdGsEntityNode::isRegenOnDraw ( ) const

inline

Checks whether this node is regenerated on draw.

Returns

true if this node is regenerated on draw, false otherwise.

Definition at line 1620 of file GsEntityNode.h.

isRequireRegenOnHighlightChange()

bool OdGsEntityNode::isRequireRegenOnHighlightChange ( ) const

inline

Specifies whether cache requires a regeneration on a highlight state change.

Returns

true if cache needs to be regenerated during highlighting state change, false otherwise.

Definition at line 1595 of file GsEntityNode.h.

isSelfReferential()

virtual bool OdGsEntityNode::isSelfReferential ( ) const

inlinevirtual

Reimplemented in OdGsBlockReferenceNode.

Definition at line 862 of file GsEntityNode.h.

isSingleThreaded()

bool OdGsEntityNode::isSingleThreaded ( ) const

inline

Checks whether this node is updated in a single-threaded mode.

Returns

true if this node is updated in a single-threaded mode, false otherwise.

Definition at line 1610 of file GsEntityNode.h.

isXref()

bool OdGsEntityNode::isXref ( ) const

inline

Returns true if entity node represents Xref drawable.

Definition at line 1773 of file GsEntityNode.h.

layersChanged()

virtual bool OdGsEntityNode::layersChanged ( OdGsViewImpl & view ) const

virtual

Checks whether at least one geometry portion of an metafile has a layer that changed.

Parameters

view	[in] GS view.

Returns

true if one or more layers changed, false if all the layer are up to date.

Reimplemented in OdGsBlockReferenceNode, and OdGsMInsertBlockNode.

loadNodeState()

bool OdGsEntityNode::loadNodeState ( OdGsFiler * pFiler, OdGsBaseVectorizer * pVectorizer = NULL )

virtual

Restores node state from filer object.

Parameters

pFiler	[in] Pointer to a filer object. Filer object.
pVectorizer	[in] Pointer to a vectorrizer. May be needed to load vectorizer client metafile (cache).

Returns

true if node state is successfully loaded, false otherwise.

Reimplemented from OdGsNode.

makeStock()

virtual void OdGsEntityNode::makeStock ( )

virtual

Reimplemented in OdGsBlockReferenceNode, and OdGsMInsertBlockNode.

markAsNonSelectable()

void OdGsEntityNode::markAsNonSelectable ( bool val )

inline

Specifies whether this node should be non-selectable.

Parameters

val	[in] Specifies whether this node is non-selectable.

Definition at line 1540 of file GsEntityNode.h.

markedAsNonSelectable()

bool OdGsEntityNode::markedAsNonSelectable ( ) const

inline

Checks whether this node is marked as non-selectable.

Returns

true if if this node is marked as non-selectable, false otherwise.

Definition at line 1535 of file GsEntityNode.h.

markedByUpdateManager()

bool OdGsEntityNode::markedByUpdateManager ( ) const

inline

Returns true if and only if this EntityNode object is marked by Update Manager.

Definition at line 1753 of file GsEntityNode.h.

markedToSkip()

bool OdGsEntityNode::markedToSkip ( unsigned mask )

inline

Checks whether this node is marked to be skipped with the passed mask.

Parameters

mask	[in] Mask.

Returns

true if this EntityNode object is marked to be skipped with the given mask (thread), false otherwise.

Definition at line 1388 of file GsEntityNode.h.

markErased()

void OdGsEntityNode::markErased ( bool val )

inline

Marks this node as erased or not erased.

Parameters

val	[in] Specifies whether to mark this node as erased.

Definition at line 1560 of file GsEntityNode.h.

markSkipSelection()

void OdGsEntityNode::markSkipSelection ( bool val )

inline

Definition at line 1550 of file GsEntityNode.h.

markToSkip()

void OdGsEntityNode::markToSkip ( unsigned mask, bool markToSkip )

inline

Controls the MarkToSkip status of this EntityNode object.

Parameters

markToSkip	[in] Controls MarkToSkip.
mask	[in] the mask(thread).

Definition at line 1399 of file GsEntityNode.h.

markToSkipAll()

void OdGsEntityNode::markToSkipAll ( )

inline

Specifies to skip this node by all threads.

Definition at line 1417 of file GsEntityNode.h.

markToSkipMask()

static unsigned OdGsEntityNode::markToSkipMask ( OdUInt32 threadIndex )

inlinestatic

Specifies an index of thread to skip this node.

Definition at line 1003 of file GsEntityNode.h.

metafile() [1/2]

OdGsEntityNode::MetafilePtr OdGsEntityNode::metafile ( ) const

inlineprotected

Returns the array the objects in the metafile array of this EntityNode object.

Definition at line 1495 of file GsEntityNode.h.

metafile() [2/2]

OdGsEntityNode::Metafile * OdGsEntityNode::metafile	(	const OdGsViewImpl &	view,
		OdGsUpdateContext *	ctx,
		MetafileCompatibilityLevel	findCompatibleLevel = kFindCompatible )

Returns metafile pointer compatible with requested view configuration.

Parameters

view	[in] View object for which metafile is to be returned.
ctx	[in] Current update context.
findCompatibleLevel	[in] Check for viewport changes if and only if true.

metafileArray() [1/2]

OdGsEntityNode::MetafilePtrArray & OdGsEntityNode::metafileArray ( )

inlineprotected

Returns a reference to the metafile array of this EntityNode object as an array of MetafilePtr.

Definition at line 1485 of file GsEntityNode.h.

metafileArray() [2/2]

const OdGsEntityNode::MetafilePtrArray & OdGsEntityNode::metafileArray ( ) const

inlineprotected

Returns a reference to the metafile array of this EntityNode object as an array of MetafilePtr.

Definition at line 1490 of file GsEntityNode.h.

metafileAt()

OdGsEntityNode::MetafilePtr OdGsEntityNode::metafileAt ( int metafileIndex ) const

inline

Returns the specified MetafilePtr from the metafile array of this EntityNode object.

Parameters

metafileIndex

[in] Metafile index.

Definition at line 1500 of file GsEntityNode.h.

nextEntity() [1/4]

OdGsEntityNode * OdGsEntityNode::nextEntity ( )

inline

Returns the next entity for this EntityNode object.

Definition at line 1339 of file GsEntityNode.h.

nextEntity() [2/4]

const OdGsEntityNode * OdGsEntityNode::nextEntity ( ) const

inline

Returns the next entity for this EntityNode object.

Definition at line 1355 of file GsEntityNode.h.

nextEntity() [3/4]

OdGsEntityNode * OdGsEntityNode::nextEntity ( OdUInt32 nVpId )

inline

Returns the next entity for this EntityNode object.

Parameters

nVpId

[in] Viewport ID.

Definition at line 1346 of file GsEntityNode.h.

nextEntity() [4/4]

const OdGsEntityNode * OdGsEntityNode::nextEntity ( OdUInt32 nVpId ) const

inline

Returns the next entity for this EntityNode object.

Parameters

nVpId

[in] Viewport ID.

Definition at line 1362 of file GsEntityNode.h.

nodeType()

virtual ENodeType OdGsEntityNode::nodeType ( ) const

inlinevirtual

Retrieves the node type.

Implements OdGsNode.

Definition at line 858 of file GsEntityNode.h.

numNextEntity()

OdUInt32 OdGsEntityNode::numNextEntity ( ) const

inline

Returns number of next entities.

Definition at line 1371 of file GsEntityNode.h.

ODRX_DECLARE_MEMBERS()

OdGsEntityNode::ODRX_DECLARE_MEMBERS

(

OdGsEntityNode

)

owned() [1/2]

bool OdGsEntityNode::owned ( ) const

inline

Checks whether this EntityNode object is the child of a ContainerNode object.

Returns

true if this EntityNode object is the child of a ContainerNode object.

Definition at line 1454 of file GsEntityNode.h.

owned() [2/2]

bool OdGsEntityNode::owned ( OdUInt32 nVpId ) const

inline

Checks whether this EntityNode object is the child of a ContainerNode object.

Parameters

nVpId

[in] Viewport ID.

Returns

true if this EntityNode object is the child of a ContainerNode object.

Definition at line 1461 of file GsEntityNode.h.

playAsGeometry()

virtual void OdGsEntityNode::playAsGeometry ( OdGsBaseVectorizer & view, EMetafilePlayMode eMode )

virtual

details Plays geometry metafile for specified vectorization view depending on playing mode.

Parameters

view	[in] Vectorization view.
eMode	[in] Playing mode.

Reimplemented in OdGsBlockReferenceNode, and OdGsMInsertBlockNode.

propagateLayerChanges()

virtual void OdGsEntityNode::propagateLayerChanges ( OdGsViewImpl & view )

protectedvirtual

Invalidates parts of cache depended on layers modified since last regeneration.

Parameters

view	[in] View Implementation object.

Remarks

For internal use only. Returns this if and only if the this node is one of modified layers.

Implements OdGsNode.

Reimplemented in OdGsBlockReferenceNode.

propagateLayerChangesStock()

virtual void OdGsEntityNode::propagateLayerChangesStock ( )

virtual

Reimplemented in OdGsBlockReferenceNode, and OdGsMInsertBlockNode.

Realloc()

static void * OdGsEntityNode::Realloc ( void * pMemBlock, size_t newSize, size_t  )

inlinestatic

Definition at line 328 of file GsEntityNode.h.

regenMetafile()

virtual OdGsEntityNode::MetafilePtr OdGsEntityNode::regenMetafile ( OdGsUpdateContext & ctx, OdUInt32 vpDepFlags )

virtual

Regenerates a metafile and returns a smart pointer to it.

Parameters

ctx	[in] View in which content is visible.
vpDepFlags	[in] Viewport-dependent flags.

releaseStock()

virtual void OdGsEntityNode::releaseStock ( )

virtual

Reimplemented in OdGsBlockReferenceNode, and OdGsMInsertBlockNode.

resetInvalidVpFlag()

void OdGsEntityNode::resetInvalidVpFlag ( )

inline

Sets the invalid viewport flag to false.

Definition at line 1527 of file GsEntityNode.h.

resetStateBranch()

void OdGsEntityNode::resetStateBranch ( OdGsStateBranch::BranchType branchType = OdGsStateBranch::kHighlightingBranch )

inline

Resets state branch of specified type.

Parameters

branchType

[in] Type of state branch to reset.

Definition at line 1672 of file GsEntityNode.h.

saveNodeState()

bool OdGsEntityNode::saveNodeState ( OdGsFiler * pFiler, OdGsBaseVectorizer * pVectorizer = NULL ) const

virtual

Stores current state of this entity node into filer object.

Parameters

pFiler	[out] Pointer to a filer object.
pVectorizer	[in/out] Pointer to a vectorrizer. May be needed to save vectorizer client metafile (cache).

Returns

true if node state is successfully saved, false otherwise.

Reimplemented from OdGsNode.

select()

void OdGsEntityNode::select

(

OdGsBaseVectorizer &

view

)

setAsLightSourceOwner()

void OdGsEntityNode::setAsLightSourceOwner ( bool bSet )

inline

Specifies whether this entity node is an owner of a light source.

Parameters

flag	[in] Flag to set.

Definition at line 1585 of file GsEntityNode.h.

setEntityUnerased()

void OdGsEntityNode::setEntityUnerased ( bool flag )

inline

Sets the entity unerased flag for this object.

Parameters

flag	[in] Flag to set.

Definition at line 1517 of file GsEntityNode.h.

setExtentsFlags()

void OdGsEntityNode::setExtentsFlags ( )

inlineprotected

Definition at line 1727 of file GsEntityNode.h.

setExtentsFromMetafiles()

void OdGsEntityNode::setExtentsFromMetafiles ( )

protected

setExtentsOutOfModelSpace()

void OdGsEntityNode::setExtentsOutOfModelSpace ( bool flag )

inline

Sets flag which indicates that extents of this node is too large to store them in spatial index tree.

Parameters

flag	[in] Flag state to set.

Definition at line 1580 of file GsEntityNode.h.

setInWorkset()

void OdGsEntityNode::setInWorkset ( bool val )

inline

Definition at line 1605 of file GsEntityNode.h.

setMarkedByUpdateManager()

void OdGsEntityNode::setMarkedByUpdateManager ( bool marked )

inline

Controls the marking by Update Manager status of this EntityNode object.

Parameters

marked

[in] Controls marked status.

Definition at line 1758 of file GsEntityNode.h.

setMaxLineweightUsed()

void OdGsEntityNode::setMaxLineweightUsed ( OdDb::LineWeight lwd )

inline

Sets a maximal lineweight for this entity node.

Parameters

lwd	[in] New lineweight value to set.

Definition at line 1748 of file GsEntityNode.h.

setMetafile() [1/2]

void OdGsEntityNode::setMetafile ( OdGsEntityNode::Metafile * metafiles )

inline

Sets the metafile array for this EntityNode object from the specified array of objects.

Parameters

metafiles

[in] Array of metafile objects.

Definition at line 1507 of file GsEntityNode.h.

setMetafile() [2/2]

void OdGsEntityNode::setMetafile	(	OdGsUpdateContext &	ctx,
		OdGsEntityNode::Metafile *	metafiles )

Sets metafile for current view configuration.

Parameters

ctx	[in] Current update context.
metafiles	[in] Pointer onto new metafile object.

setMetafileAt()

void OdGsEntityNode::setMetafileAt	(	int	metafileIndex,
		OdGsEntityNode::Metafile *	pMetafile )

Sets the specified entry in the metafile array of this EntityNode object.

Parameters

metafileIndex	[in] Metafile index.
pMetafile	[in] Pointer to the Metafile object

setNextEntity() [1/2]

void OdGsEntityNode::setNextEntity ( OdGsEntityNode * pNextEntity )

inline

Sets the next entity for this EntityNode object to the specified EntityNode object.

Parameters

pNextEntity

[in] Pointer to the next EntityNode.

Definition at line 1317 of file GsEntityNode.h.

setNextEntity() [2/2]

void OdGsEntityNode::setNextEntity ( OdUInt32 nVpId, OdGsEntityNode * pNextEntity )

inline

Sets the next entity for this EntityNode object to the specified EntityNode object.

Parameters

pNextEntity	[in] Pointer to the next EntityNode.
nVpId	[in] Viewport ID.

Definition at line 1324 of file GsEntityNode.h.

setOwned() [1/2]

void OdGsEntityNode::setOwned ( bool owned )

inline

Controls the owned status of this EntityNode object.

Parameters

owned

[in] Controls owned status.

Definition at line 1470 of file GsEntityNode.h.

setOwned() [2/2]

void OdGsEntityNode::setOwned ( OdUInt32 nVpId, bool owned )

inline

Controls the owned status of this EntityNode object.

Parameters

nVpId	[in] Viewport ID.
owned	[in] Controls owned status.

Definition at line 1477 of file GsEntityNode.h.

setRegenOnDraw()

void OdGsEntityNode::setRegenOnDraw ( bool val )

inline

Specifies whether this node should be regenerated on draw.

Parameters

val	[in] Specifies whether to regenerate this node on draw.

Definition at line 1625 of file GsEntityNode.h.

setSingleThreaded()

void OdGsEntityNode::setSingleThreaded ( bool val )

inline

Specifies whether this node should be updated in a single-threaded mode.

Parameters

val	[in] Specifies whether to use single-threaded mode.

Definition at line 1615 of file GsEntityNode.h.

setSkipDisplayClipping()

void OdGsEntityNode::setSkipDisplayClipping ( bool bOn )

inline

Specifies whether this node should should skip clipping procedure.

Parameters

bOn	[in] Specifies whether to skip clipping.

Definition at line 1768 of file GsEntityNode.h.

setSpatiallyIndexed() [1/2]

void OdGsEntityNode::setSpatiallyIndexed ( bool spatiallyIndexed )

inline

Controls the spatial indexing of this EntityNode object.

Parameters

spatiallyIndexed

[in] Controls spatially indexed.

Definition at line 1439 of file GsEntityNode.h.

setSpatiallyIndexed() [2/2]

void OdGsEntityNode::setSpatiallyIndexed ( OdUInt32 nVpId, bool spatiallyIndexed )

inline

Controls the spatial indexing of this EntityNode object.

Parameters

nVpId	[in] Viewport ID.
spatiallyIndexed	[in] Controls spatially indexed.

Definition at line 1446 of file GsEntityNode.h.

setStateBranch()

void OdGsEntityNode::setStateBranch ( OdGsStateBranch * pBr )

inline

Sets a branch of subentities and nested entities to highlight, hide or transform.

Parameters

pBr	[in] Pointer to a branch of subentities and nested entities.

Definition at line 1644 of file GsEntityNode.h.

skipDisplayClipping()

bool OdGsEntityNode::skipDisplayClipping ( ) const

inline

Checks whether this node skips clipping procedure.

Returns

true if this node skips clipping procedure, false otherwise.

Definition at line 1763 of file GsEntityNode.h.

spatiallyIndexed() [1/2]

bool OdGsEntityNode::spatiallyIndexed ( ) const

inline

Returns true if and only if this EntityNode object is spatially indexed.

Parameters

nVpId

[in] Viewport ID.

Definition at line 1423 of file GsEntityNode.h.

spatiallyIndexed() [2/2]

bool OdGsEntityNode::spatiallyIndexed ( OdUInt32 nVpId ) const

inline

Returns true if and only if this EntityNode object is spatially indexed.

Parameters

nVpId

[in] Viewport ID.

Definition at line 1430 of file GsEntityNode.h.

stateBranch() [1/2]

OdGsStateBranch * OdGsEntityNode::stateBranch ( OdGsStateBranch::BranchType branchType = OdGsStateBranch::kHighlightingBranch )

inline

Retrieves a branch of subentities and nested entities to highlight, hide or transform.

Parameters

branchType

[in] Type of state branch to retrieve.

Definition at line 1688 of file GsEntityNode.h.

stateBranch() [2/2]

const OdGsStateBranch * OdGsEntityNode::stateBranch ( OdGsStateBranch::BranchType branchType = OdGsStateBranch::kHighlightingBranch ) const

inline

Retrieves a branch of subentities and nested entities to highlight, hide or transform.

Parameters

branchType

[in] Type of state branch to retrieve.

Definition at line 1705 of file GsEntityNode.h.

transformExtents()

void OdGsEntityNode::transformExtents	(	OdGeExtents3d &	ext,
		const OdGsStateBranch *	pTransformBr = NULL,
		bool	bInverse = false ) const

Transforms the specified extents according to the specified state branch.

Parameters

ext	[in/out] Extents to modify.
pTransformBr	[in] Pointer to the specified state branch.
bInverse	[in] Execute transform if false and untransform if true.

update()

void OdGsEntityNode::update ( OdGsUpdateContext & ctx, OdGsContainerNode * pParent, OdSiSpatialIndex * pParentIndex )

virtual

Updates this entity node.

Parameters

ctx	[in] Current update context.
pParent	[in] Pointer to a parent container node.
pParentIndex	[in] Pointer to a parent spatial index.

Implements OdGsNode.

Reimplemented in OdGsLightNode.

updateVisible()

void OdGsEntityNode::updateVisible ( OdGsViewImpl * pViewImpl )

virtual

Updates visible content.

Parameters

pViewImpl

[in] View in which content is visible.

Reimplemented from OdGsNode.

Friends And Related Symbol Documentation

Metafile

friend class Metafile

friend

Definition at line 283 of file GsEntityNode.h.

OdGsBlockReferenceNode

friend class OdGsBlockReferenceNode

friend

Definition at line 324 of file GsEntityNode.h.

OdGsModuleObject

friend class OdGsModuleObject

friend

Definition at line 323 of file GsEntityNode.h.

Member Data Documentation

m_entFlags

OdUInt32 OdGsEntityNode::m_entFlags

protected

Definition at line 1292 of file GsEntityNode.h.

m_extents

OdGeExtents3d OdGsEntityNode::m_extents

mutableprotected

Definition at line 172 of file GsEntityNode.h.

m_metafile

MetafileHolder OdGsEntityNode::m_metafile

mutableprotected

Definition at line 616 of file GsEntityNode.h.

m_stateBranch

OdGsStateBranchPtr OdGsEntityNode::m_stateBranch

protected

Definition at line 607 of file GsEntityNode.h.

---

The documentation for this class was generated from the following file:

• GsEntityNode.h
