OdIfc4x1::IfcPropertyAbstraction Class Reference

#include <IfcPropertyAbstractionAutoImpl.h>

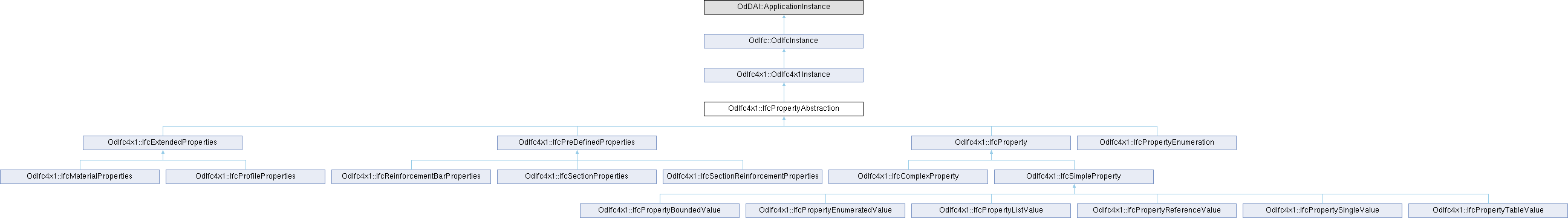

Inheritance diagram for OdIfc4x1::IfcPropertyAbstraction:
OdIfc4x1::OdIfc4x1Instance OdIfc::OdIfcInstance OdIfc4x1::IfcExtendedProperties OdIfc4x1::IfcPreDefinedProperties OdIfc4x1::IfcProperty OdIfc4x1::IfcPropertyEnumeration OdIfc4x1::IfcMaterialProperties OdIfc4x1::IfcProfileProperties OdIfc4x1::IfcReinforcementBarProperties OdIfc4x1::IfcSectionProperties OdIfc4x1::IfcSectionReinforcementProperties OdIfc4x1::IfcComplexProperty OdIfc4x1::IfcSimpleProperty OdIfc4x1::IfcPropertyBoundedValue OdIfc4x1::IfcPropertyEnumeratedValue OdIfc4x1::IfcPropertyListValue OdIfc4x1::IfcPropertyReferenceValue OdIfc4x1::IfcPropertySingleValue OdIfc4x1::IfcPropertyTableValue

Public Member Functions

void getInvHasExternalReferences (OdDAIObjectIds &HasExternalReferences) const

virtual OdResult inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity * getInstanceType () const override

virtual void unsetAttr (const char *explicitAttrName) override

virtual bool testAttr (const char *explicitAttrName) const override

virtual bool isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType type () const override

virtual OdRxValue getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

- Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void setInverseCounterParts () override

- Public Member Functions inherited from OdIfc::OdIfcInstance
 ODRX_DECLARE_MEMBERS (OdIfcInstance)

 OdIfcInstance ()

 ~OdIfcInstance ()

bool isInstanceOf (OdIfcEntityType entityType) const

virtual bool putAttr (const char *explicitAttrName, const OdRxValue &val)

IfcOpResult resolved ()

void resolve (IfcOpResult resolved, void *resPtr)

void unresolve ()

virtual void setGsNode (OdGsCache *pGsNode)

virtual OdGsCache * gsNode () const

virtual OdUInt32 subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub * ownerId () const


Friends

class IfcExternalReferenceRelationship


Additional Inherited Members

- Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d * asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d * asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d * asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d * asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d * asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d * asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor * asRgbColor (const OdIfcInstance *inst)

- Protected Attributes inherited from OdIfc::OdIfcInstance
void * m_resPtr

IfcOpResult m_resolved


Detailed Description

The IfcPropertyAbstraction is an abstract supertype of all property-related entities defined as dependent resource entities within the specification. It can have an external reference to a dictionary or library that provides additional information about its definition. Instantiable subtypes have property name, value and other instance information.

Remarks
The IfcPropertyAbstraction is an abstract supertype of all property-related entities defined as dependent resource entities within the specification. It can have an external reference to a dictionary or library that provides additional information about its definition. Instantiable subtypes have property name, value and other instance information.

Definition at line 51 of file Ifc4x1/IfcPropertyAbstractionAutoImpl.h.

Member Function Documentation

◆ getAttr()

virtual OdRxValue OdIfc4x1::IfcPropertyAbstraction::getAttr ( const OdIfc::OdIfcAttribute attrDef) const
overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters
attrDef[in] Attribute definition to query.
Returns
OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, and OdIfc4x1::IfcSectionReinforcementProperties.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcPropertyAbstraction::getInstanceType ( ) const
overridevirtual

Returns a type of a class instance.

Returns
Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcPreDefinedProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, OdIfc4x1::IfcSectionReinforcementProperties, and OdIfc4x1::IfcSimpleProperty.

◆ getInvHasExternalReferences()

void OdIfc4x1::IfcPropertyAbstraction::getInvHasExternalReferences ( OdDAIObjectIds & HasExternalReferences) const

Returns the value of HasExternalReferences attribute. HasExternalReferences is reference to an external reference, e.g. library, classification, or document information, that is associated to the property definition.

Parameters
HasExternalReferences[out] Receives a set of object identifiers representing the value of HasExternalReferences attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcPropertyAbstraction::inFields ( OdDAI::OdSpfFilerBase * rdFiler)
overridevirtual

Reads object's data from the specified filer.

Parameters
rdFiler[in] Pointer to a filer from which to read the data.
Returns
A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, and OdIfc4x1::IfcSectionReinforcementProperties.

◆ isKindOf()

virtual bool OdIfc4x1::IfcPropertyAbstraction::isKindOf ( OdIfc::OdIfcEntityType entityType) const
overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters
entityType[in] Entity to check.
Returns
true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcPreDefinedProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, OdIfc4x1::IfcSectionReinforcementProperties, and OdIfc4x1::IfcSimpleProperty.

◆ outFields()

virtual OdResult OdIfc4x1::IfcPropertyAbstraction::outFields ( OdDAI::OdSpfFilerBase * wrFiler)
overridevirtual

Writes object's data the the specified filer.

Parameters
wrFiler[in] Pointer to a filer to which to write the data.
Returns
A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, and OdIfc4x1::IfcSectionReinforcementProperties.

◆ putAttr()

virtual bool OdIfc4x1::IfcPropertyAbstraction::putAttr ( const OdIfc::OdIfcAttribute explicitAttrDef,
const OdRxValue & val )
overridevirtual

Sets the specified attribute with a given value.

Parameters
explicitAttrDef[in] Explicit attribute definition to set.
val[in] Value to set.
Returns
true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, and OdIfc4x1::IfcSectionReinforcementProperties.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcPropertyAbstraction::testAttr ( const char * explicitAttrName) const
overridevirtual

Checks whether the specified attribute is set.

Parameters
explicitAttrName[in] Explicit name of the attribute to test.
Returns
true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, and OdIfc4x1::IfcSectionReinforcementProperties.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcPropertyAbstraction::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef) const
overridevirtual

Checks whether the specified attribute is set.

Parameters
explicitAttrDef[in] Attribute definition to test.
Returns
true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, and OdIfc4x1::IfcSectionReinforcementProperties.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcPropertyAbstraction::type ( ) const
overridevirtual

Returns the type of this entity.

Returns
A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcPreDefinedProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, OdIfc4x1::IfcSectionReinforcementProperties, and OdIfc4x1::IfcSimpleProperty.

◆ unsetAttr() [1/2]

virtual void OdIfc4x1::IfcPropertyAbstraction::unsetAttr ( const char * explicitAttrName)
overridevirtual

Resets a value for the specified attribute.

Parameters
explicitAttrName[in] Explicit name of the attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, and OdIfc4x1::IfcSectionReinforcementProperties.

◆ unsetAttr() [2/2]

virtual void OdIfc4x1::IfcPropertyAbstraction::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef)
overridevirtual

Resets a value for the specified attribute.

Parameters
explicitAttrDef[in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x1::IfcComplexProperty, OdIfc4x1::IfcExtendedProperties, OdIfc4x1::IfcMaterialProperties, OdIfc4x1::IfcProfileProperties, OdIfc4x1::IfcProperty, OdIfc4x1::IfcPropertyBoundedValue, OdIfc4x1::IfcPropertyEnumeratedValue, OdIfc4x1::IfcPropertyEnumeration, OdIfc4x1::IfcPropertyListValue, OdIfc4x1::IfcPropertyReferenceValue, OdIfc4x1::IfcPropertySingleValue, OdIfc4x1::IfcPropertyTableValue, OdIfc4x1::IfcReinforcementBarProperties, OdIfc4x1::IfcSectionProperties, and OdIfc4x1::IfcSectionReinforcementProperties.

Friends And Related Symbol Documentation

◆ IfcExternalReferenceRelationship

friend class IfcExternalReferenceRelationship
friend

Definition at line 166 of file Ifc4x1/IfcPropertyAbstractionAutoImpl.h.

The documentation for this class was generated from the following file:
