#include <IfcIndexedTextureMapAutoImpl.h>

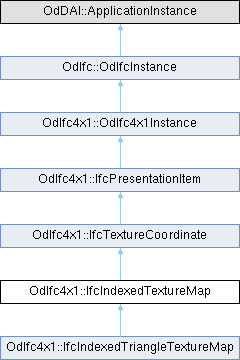

Inheritance diagram for OdIfc4x1::IfcIndexedTextureMap:

Public Member Functions
const OdDAIObjectId &	getMappedTo () const

void	setMappedTo (const OdDAIObjectId &MappedTo)

const OdDAIObjectId &	getTexCoords () const

void	setTexCoords (const OdDAIObjectId &TexCoords)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcTextureCoordinate
void	getMaps (OdDAIObjectIds &Maps) const

OdDAI::ListOfOdDAIObjectId &	maps ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_MappedTo

OdDAIObjectId	m_TexCoords

Protected Attributes inherited from OdIfc4x1::IfcTextureCoordinate
OdDAI::ListOfOdDAIObjectId	m_Maps

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcIndexedTextureMap provides the mapping of the 2-dimensional texture coordinates to the surface onto which it is mapped. It is used for mapping the texture to faces of tessellated face sets. The IfcIndexedTextureMap defines an index into an indexed list of texture coordinates. The TexCoords are a two-dimensional list of texture coordinates provided by two parameter values. Subtypes of IfcIndexedTextureMap establish the index attribute corresponding to subtypes of IfcTessellatedFaceSet defining the corresponding index lists of vertices.

Remarks: This definition may not be instantiated.

Definition at line 50 of file Ifc4x1/IfcIndexedTextureMapAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcIndexedTextureMap::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcIndexedTextureMap::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcIndexedTextureMap::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ getMappedTo()

const OdDAIObjectId & OdIfc4x1::IfcIndexedTextureMap::getMappedTo ( ) const

Returns the value of MappedTo attribute. This attribute represents reference to the IfcTessellatedFaceSet to which it applies the texture map.

Returns: Returns the value of MappedTo attribute.

◆ getTexCoords()

const OdDAIObjectId & OdIfc4x1::IfcIndexedTextureMap::getTexCoords ( ) const

Returns the value of TexCoords attribute. This attribute represents indexable list of texture vertices.

Returns: Returns the value of TexCoords attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcIndexedTextureMap::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ isKindOf()

virtual bool OdIfc4x1::IfcIndexedTextureMap::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ outFields()

virtual OdResult OdIfc4x1::IfcIndexedTextureMap::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcIndexedTextureMap::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcIndexedTextureMap::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ setInverseCounterParts()

virtual void OdIfc4x1::IfcIndexedTextureMap::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

◆ setMappedTo()

void OdIfc4x1::IfcIndexedTextureMap::setMappedTo ( const OdDAIObjectId & MappedTo )

Sets the value of MappedTo attribute. This attribute represents reference to the IfcTessellatedFaceSet to which it applies the texture map.

Parameters

MappedTo [in] MappedTo attribute to set.

◆ setTexCoords()

void OdIfc4x1::IfcIndexedTextureMap::setTexCoords ( const OdDAIObjectId & TexCoords )

Sets the value of TexCoords attribute. This attribute represents indexable list of texture vertices.

Parameters

TexCoords [in] TexCoords attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcIndexedTextureMap::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcIndexedTextureMap::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcIndexedTextureMap::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcTextureCoordinate.

Reimplemented in OdIfc4x1::IfcIndexedTriangleTextureMap.
