#include <IfcProfileDefAutoImpl.h>

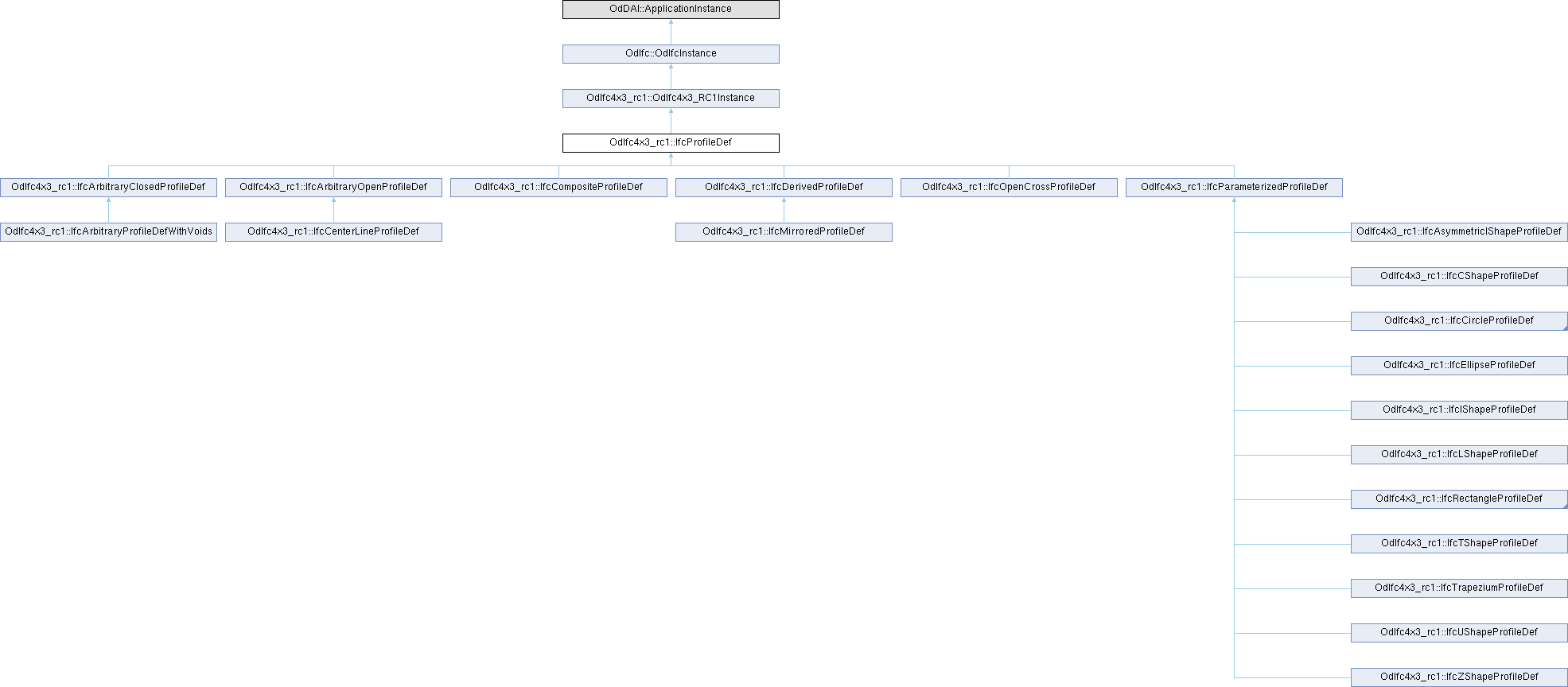

Inheritance diagram for OdIfc4x3_rc1::IfcProfileDef:

Public Member Functions
IfcProfileTypeEnum	getProfileType () const

void	setProfileType (IfcProfileTypeEnum ProfileType)

const OdAnsiString &	getProfileName () const

void	setProfileName (const OdAnsiString &ProfileName)

void	getInvHasExternalReference (OdDAIObjectIds &HasExternalReference) const

void	getInvHasProperties (OdDAIObjectIds &HasProperties) const

	IfcProfileDef ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_rc1::OdIfc4x3_RC1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_ProfileType

OdAnsiString	m_ProfileName

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcExternalReferenceRelationship

class	IfcProfileProperties

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcProfileDef is the base class for all definitions of standard and custom profiles used within IFC. This class defines a standard set of commonly used section profiles by their parameters or by their explicit curve geometry. Parameterized profiles are 2D primitives, which are used within the industry to describe cross sections by a description of its parameters. Arbitrary profiles are cross sections defined by an outer boundary as bounded curve, which can also include holes, defined by inner boundaries. Derived profiles, based on a transformation of a parent profile, are also part of the profile definitions available. In addition composite profiles can be defined, which include two or more profile definitions to define the resulting profile.

Use in Material Association - Beams, columns, and similarly shaped building elements and their type objects can be associated with a section profile definition, combined with material definition, by means of IfcRelAssociatesMaterial together with IfcMaterialProfileSet and IfcMaterialProfileSetUsage. This way, building elements and element types with same section and material can share a common section profile definition and association.

The profile definition in material association is required to be consistent with shape representations of the respective building elements.

Use in Shape Models - Profile definitions are used within the geometry and geometric model resource to create either swept surfaces, swept area solids, or sectioned spines. The purpose of the profile definition within the swept surfaces or swept area solids is to define a uniform cross section being swept: Along a line (extrusion) using IfcSurfaceOfLinearExtrusion or IfcExtrudedAreaSolid. Along a circular arc (revolution) using IfcSurfaceOfRevolution or IfcRevolvedAreaSolid. Along a directrix lying on a reference surface using IfcSurfaceCurveSweptAreaSolid.

The purpose of the profile definition within the sectioned spine is to define a varying cross sections at several positions along a spine curve. The subtype IfcDerivedProfileDef is particularly suited to provide the consecutive profiles to be based on transformations of the start profile and thus maintaining the identity of vertices and edges.

An IfcProfileDef is treated as bounded area if it is used within swept area solids. In this case, the inside of the profile is part of the profile. The attribute ProfileType is set to AREA. An IfcProfileDef is treated as a curve if it is used within swept surfaces. In this case, the inside of the profile (if the curve is closed) is not part of the profile. The attribute ProfileType is set to CURVE.

Profile Types - The ProfileType defines whether the inside (the bounded area) is part of the profile definition (Area) or not (Curve).
Profile Specification by External Reference - If the profile is standardized by a norm or a catalogue, a reference to this norm or catalogue should be provided by means of HasExternalReference. This inverse relationship is used to associate an IfcExternalReference (notably IfcClassificationReference or IfcLibraryReference) with the profile. IfcClassificationReference is used to refer to a profile norm (a common standard or manufacturer's standard). In this case, IfcClassificationReference.ItemReference contains the formal profile designation from the norm. (On the other hand, IfcProfileDef.ProfileName contains a displayable name which may not necessarily be the same as the formal designation.) IfcClassificationReference.Name carries the short name of the profile norm. Optionally, the norm can be further described by IfcClassificationReference.ReferencedSource.

IfcLibraryReference is used to refer to a library which contains profile definitions. In this case, IfcLibraryReference.ItemReference contains the identifier of the profile within the library and is meant to be machine-readable (in contrast to IfcProfileDef.ProfileName which should be human-readable). IfcLibraryReference.Location and .Name or .ReferencedLibrary further describe the library.

If an external reference is provided, sending systems shall ensure that the shape of the profile definition object agrees with the definitions in the referenced classification or library.

Direct instances of IfcProfileDef - Usually, only subtypes of IfcProfileDef should be instantiated. In some special cases, e.g. if the profile object is used for purposes other than geometric models (e.g. for structural analysis models), it can be possible to directly instantiate IfcProfileDef and further specify the profile only by external reference or by profile properties. The latter are tracked by the inverse attribute HasProperties.

\changes

IFC4 changes: Changed from ABSTRACT to non-abstract for uses which do not require an explicitly defined geometry.

Definition at line 98 of file Ifc4x3_RC1/IfcProfileDefAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcProfileDef()

OdIfc4x3_rc1::IfcProfileDef::IfcProfileDef ( )

Default constructor for the IfcProfileDef class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_rc1::IfcProfileDef::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_rc1::IfcProfileDef::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_rc1::IfcProfileDef::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_rc1::IfcProfileDef::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

◆ getInvHasExternalReference()

void OdIfc4x3_rc1::IfcProfileDef::getInvHasExternalReference ( OdDAIObjectIds & HasExternalReference ) const

Retrieves a reference to external information. For example, this information can be about library classification or document that is associated with the profile.

Parameters

ProfileName [out] Receives an array of Data Access Interface (DAI) identifiers that are related to external data objects.

◆ getInvHasProperties()

void OdIfc4x3_rc1::IfcProfileDef::getInvHasProperties ( OdDAIObjectIds & HasProperties ) const

Retrieves additional properties of the profile.

Parameters

idsIfcProfileProperties [out] Receives an array of Data Access Interface (DAI) identifiers that are related to objects that define additional properties.

◆ getProfileName()

const OdAnsiString & OdIfc4x3_rc1::IfcProfileDef::getProfileName ( ) const

Returns a human-readable profile name.

Returns: A string that contains name of the profile definition.

◆ getProfileType()

IfcProfileTypeEnum OdIfc4x3_rc1::IfcProfileDef::getProfileType ( ) const

Returns the type of geometry into which this profile definition is resolved.

Returns: Geometry type of the profile definition which is either a curve or a surface area. In case of curve the inside (the bounded area) is not part of the profile definition, in case of area - it is.

◆ inFields()

virtual OdResult OdIfc4x3_rc1::IfcProfileDef::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

◆ isKindOf()

virtual bool OdIfc4x3_rc1::IfcProfileDef::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ outFields()

virtual OdResult OdIfc4x3_rc1::IfcProfileDef::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcProfileDef::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcProfileDef::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ setProfileName()

void OdIfc4x3_rc1::IfcProfileDef::setProfileName ( const OdAnsiString & ProfileName )

Sets a human-readable name of the profile definition.

Parameters

ProfileName [in] Name of the profile definition.

◆ setProfileType()

void OdIfc4x3_rc1::IfcProfileDef::setProfileType ( IfcProfileTypeEnum ProfileType )

Sets the type of geometry for the profile definition.

Parameters

ProfileType [in] Profile type to set. In case of curve the profile should be referenced by a swept surface, in case of area the profile should be referenced by a swept area solid.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcProfileDef::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcProfileDef::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_rc1::IfcProfileDef::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

◆ unsetAttr() [1/2]

virtual void OdIfc4x3_rc1::IfcProfileDef::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

◆ unsetAttr() [2/2]

virtual void OdIfc4x3_rc1::IfcProfileDef::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Friends And Related Symbol Documentation

◆ IfcExternalReferenceRelationship

friend class IfcExternalReferenceRelationship

friend

Definition at line 284 of file Ifc4x3_RC1/IfcProfileDefAutoImpl.h.

◆ IfcProfileProperties

friend class IfcProfileProperties

friend

Definition at line 285 of file Ifc4x3_RC1/IfcProfileDefAutoImpl.h.

Member Data Documentation

◆ m_ProfileName

OdAnsiString OdIfc4x3_rc1::IfcProfileDef::m_ProfileName

protected

Definition at line 281 of file Ifc4x3_RC1/IfcProfileDefAutoImpl.h.

◆ m_ProfileType

OdDAI::Enum OdIfc4x3_rc1::IfcProfileDef::m_ProfileType

protected

Definition at line 280 of file Ifc4x3_RC1/IfcProfileDefAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x3_RC1/IfcProfileDefAutoImpl.h

Public Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcProfileDef()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getInvHasExternalReference()

◆ getInvHasProperties()

◆ getProfileName()

◆ getProfileType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setProfileName()

◆ setProfileType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Friends And Related Symbol Documentation

◆ IfcExternalReferenceRelationship

◆ IfcProfileProperties

Member Data Documentation

◆ m_ProfileName

◆ m_ProfileType
