#include <IfcPolynomialCurveAutoImpl.h>

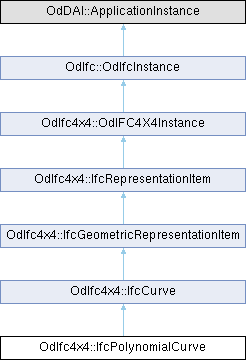

Inheritance diagram for OdIfc4x4::IfcPolynomialCurve:

Public Member Functions
const OdDAIObjectId &	getPosition () const

void	setPosition (const OdDAIObjectId &Position)

void	getCoefficientsX (OdArray< double > &CoefficientsX) const

OdDAI::ListOfDouble &	coefficientsX ()

void	getCoefficientsY (OdArray< double > &CoefficientsY) const

OdDAI::ListOfDouble &	coefficientsY ()

void	getCoefficientsZ (OdArray< double > &CoefficientsZ) const

OdDAI::ListOfDouble &	coefficientsZ ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Position

OdDAI::ListOfDouble	m_CoefficientsX

OdDAI::ListOfDouble	m_CoefficientsY

OdDAI::ListOfDouble	m_CoefficientsZ

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A polynomial curve is a curve that can be parametrized by polynomial functions of R[x].

Definition at line 41 of file IFC4X4/IfcPolynomialCurveAutoImpl.h.

Member Function Documentation

◆ coefficientsX()

OdDAI::ListOfDouble & OdIfc4x4::IfcPolynomialCurve::coefficientsX ( )

Returns the value of CoefficientsX attribute.

Returns: List of double values representing the CoefficientsX attribute.

◆ coefficientsY()

OdDAI::ListOfDouble & OdIfc4x4::IfcPolynomialCurve::coefficientsY ( )

Returns the value of CoefficientsY attribute.

Returns: List of double values representing the CoefficientsY attribute.

◆ coefficientsZ()

OdDAI::ListOfDouble & OdIfc4x4::IfcPolynomialCurve::coefficientsZ ( )

Returns the value of CoefficientsZ attribute.

Returns: List of double values representing the CoefficientsZ attribute.

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcPolynomialCurve::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcCurve.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcPolynomialCurve::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcPolynomialCurve::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

◆ getCoefficientsX()

void OdIfc4x4::IfcPolynomialCurve::getCoefficientsX ( OdArray< double > & CoefficientsX ) const

Returns the value of CoefficientsX attribute.

Returns: Returns the value of CoefficientsX attribute.

◆ getCoefficientsY()

void OdIfc4x4::IfcPolynomialCurve::getCoefficientsY ( OdArray< double > & CoefficientsY ) const

Returns the value of CoefficientsY attribute.

Returns: Returns the value of CoefficientsY attribute.

◆ getCoefficientsZ()

void OdIfc4x4::IfcPolynomialCurve::getCoefficientsZ ( OdArray< double > & CoefficientsZ ) const

Returns the value of CoefficientsZ attribute.

Returns: Returns the value of CoefficientsZ attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcPolynomialCurve::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcCurve.

◆ getPosition()

const OdDAIObjectId & OdIfc4x4::IfcPolynomialCurve::getPosition ( ) const

Returns the value of Position attribute. Position defines placement of the polynomial curve.

Returns: Returns placement of the curve.

◆ inFields()

virtual OdResult OdIfc4x4::IfcPolynomialCurve::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

◆ isKindOf()

virtual bool OdIfc4x4::IfcPolynomialCurve::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcCurve.

◆ outFields()

virtual OdResult OdIfc4x4::IfcPolynomialCurve::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcPolynomialCurve::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcPolynomialCurve::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

◆ setPosition()

void OdIfc4x4::IfcPolynomialCurve::setPosition ( const OdDAIObjectId & Position )

Sets the value of Position attribute. Position defines placement of the polynomial curve.

Parameters

Position [in] Object identifier of the position to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcPolynomialCurve::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcPolynomialCurve::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcPolynomialCurve::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcCurve.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcPolynomialCurve::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcPolynomialCurve::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcRepresentationItem.

Member Data Documentation

◆ m_CoefficientsX

OdDAI::ListOfDouble OdIfc4x4::IfcPolynomialCurve::m_CoefficientsX

protected

Definition at line 235 of file IFC4X4/IfcPolynomialCurveAutoImpl.h.

◆ m_CoefficientsY

OdDAI::ListOfDouble OdIfc4x4::IfcPolynomialCurve::m_CoefficientsY

protected

Definition at line 237 of file IFC4X4/IfcPolynomialCurveAutoImpl.h.

◆ m_CoefficientsZ

OdDAI::ListOfDouble OdIfc4x4::IfcPolynomialCurve::m_CoefficientsZ

protected

Definition at line 239 of file IFC4X4/IfcPolynomialCurveAutoImpl.h.

◆ m_Position

OdDAIObjectId OdIfc4x4::IfcPolynomialCurve::m_Position

protected

Definition at line 234 of file IFC4X4/IfcPolynomialCurveAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcPolynomialCurveAutoImpl.h
