#include <IfcShapeModelAutoImpl.h>

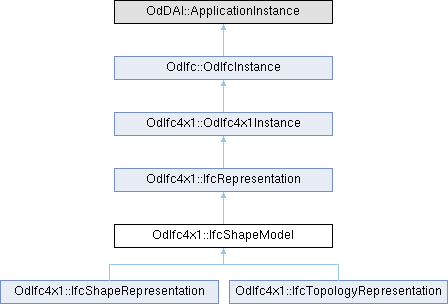

Inheritance diagram for OdIfc4x1::IfcShapeModel:

Public Member Functions
void	getInvOfShapeAspect (OdDAIObjectIds &OfShapeAspect) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcRepresentation
const OdDAIObjectId &	getContextOfItems () const

void	setContextOfItems (const OdDAIObjectId &ContextOfItems)

const OdAnsiString &	getRepresentationIdentifier () const

void	setRepresentationIdentifier (const OdAnsiString &RepresentationIdentifier)

const OdAnsiString &	getRepresentationType () const

void	setRepresentationType (const OdAnsiString &RepresentationType)

void	getItems (OdDAIObjectIds &Items) const

OdDAI::SetOfOdDAIObjectId &	items ()

void	getInvRepresentationMap (OdDAIObjectIds &RepresentationMap) const

void	getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const

void	getInvOfProductRepresentation (OdDAIObjectIds &OfProductRepresentation) const

	IfcRepresentation ()

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Member Functions
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Friends
class	IfcShapeAspect

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x1::IfcRepresentation
OdDAIObjectId	m_ContextOfItems

OdAnsiString	m_RepresentationIdentifier

OdAnsiString	m_RepresentationType

OdDAI::SetOfOdDAIObjectId	m_Items

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcShapeModel represents the concept of a particular geometric and/or topological representation of a product's shape or a product component's shape within a representation context. This representation context has to be a geometric representation context (with the exception of topology representations without associated geometry). The two subtypes are IfcShapeRepresentation to cover geometric models that represent a shape, and IfcTopologyRepresentation to cover the connectivity of a product or product component. The topology can have some geometry associated.

The IfcShapeModel can be a shape representation (geometric and/or topological) of a product (via IfcProductDefinitionShape), or a shape representation (geometric and/or topological) of a component of a product shape (via IfcShapeAspect).

Remarks: This definition may not be instantiated.

Definition at line 51 of file Ifc4x1/IfcShapeModelAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcRepresentation::getAttr ( const char * attrName ) const

overrideprotectedvirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcRepresentation.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcShapeModel::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcRepresentation.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcShapeModel::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcRepresentation.

Reimplemented in OdIfc4x1::IfcShapeRepresentation, and OdIfc4x1::IfcTopologyRepresentation.

◆ getInvOfShapeAspect()

void OdIfc4x1::IfcShapeModel::getInvOfShapeAspect ( OdDAIObjectIds & OfShapeAspect ) const

Returns the value of OfShapeAspect attribute. This attribute represents reference to the shape aspect, for which it is the shape representation.

Parameters

OfShapeAspect [out] Receives the value of OfShapeAspect attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcShapeModel::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcRepresentation.

◆ isKindOf()

virtual bool OdIfc4x1::IfcShapeModel::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcRepresentation.

Reimplemented in OdIfc4x1::IfcShapeRepresentation, and OdIfc4x1::IfcTopologyRepresentation.

◆ outFields()

virtual OdResult OdIfc4x1::IfcShapeModel::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcRepresentation.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcRepresentation::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overrideprotectedvirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcRepresentation.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcShapeModel::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcRepresentation.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcShapeModel::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcRepresentation.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcShapeModel::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcRepresentation.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcShapeModel::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcRepresentation.

Reimplemented in OdIfc4x1::IfcShapeRepresentation, and OdIfc4x1::IfcTopologyRepresentation.
