#include <IfcReinforcingBarAutoImpl.h>

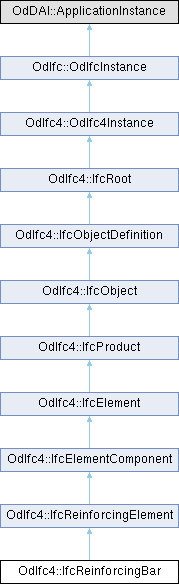

Inheritance diagram for OdIfc4::IfcReinforcingBar:

Public Member Functions
double	getNominalDiameter () const

void	setNominalDiameter (double NominalDiameter)

double	getCrossSectionArea () const

void	setCrossSectionArea (double CrossSectionArea)

double	getBarLength () const

void	setBarLength (double BarLength)

IfcReinforcingBarTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcReinforcingBarTypeEnum PredefinedType)

IfcReinforcingBarSurfaceEnum	getBarSurface () const

void	setBarSurface (IfcReinforcingBarSurfaceEnum BarSurface)

	IfcReinforcingBar ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcReinforcingElement
const OdAnsiString &	getSteelGrade () const

void	setSteelGrade (const OdAnsiString &SteelGrade)

	IfcReinforcingElement ()

Public Member Functions inherited from OdIfc4::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

	IfcElement ()

Public Member Functions inherited from OdIfc4::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_NominalDiameter

double	m_CrossSectionArea

IfcPositiveLengthMeasure	m_BarLength

OdDAI::Enum	m_PredefinedType

OdDAI::Enum	m_BarSurface

Protected Attributes inherited from OdIfc4::IfcReinforcingElement
OdAnsiString	m_SteelGrade

Protected Attributes inherited from OdIfc4::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A reinforcing bar is usually made of steel with manufactured deformations in the surface, and used in concrete and masonry construction to provide additional strength. A single instance of this class can represent one or many of actual rebars, for example a row of rebars.

Mapped Geometry - The representation map should contain a representation of AdvancedSweptSolid type which holds an IfcSweptDiskSolid (including subtype IfcSweptDiskSolidPolygonal). Multiple IfcMappedItem's can be used to represent several bars as one occurrence of IfcReinforcingBar.
Material Set - This concept can be applied to the following resources: Core - Material from which the rebar is constructed, such as steel. Coating - Outer coating, if applicable.
Object Typing - This concept can be applied to the following resources: IfcReinforcingBarType

\changes

IFC4 changes: Attribute BarRole is renamed to PredefinedType. Attribute BarRole is optional, changed from "False" to "True" Type of BarRole attribute changed from "IfcReinforcingBarRoleEnum" to "IfcReinforcingBarTypeEnum" Attribute CrossSectionArea is optional, changed from "False" to "True" Attribute NominalDiameter is optional, changed from "False" to "True"

Definition at line 65 of file Ifc4/IfcReinforcingBarAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcReinforcingBar()

OdIfc4::IfcReinforcingBar::IfcReinforcingBar ( )

Default constructor for the IfcReinforcingBar class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcReinforcingBar::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcReinforcingBar::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcReinforcingBar::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ getBarLength()

double OdIfc4::IfcReinforcingBar::getBarLength ( ) const

Returns the value of BarLength attribute. This attribute represents the total length of the reinforcing bar. The total length of bended bars are calculated according to local standards with corrections for the bends.

Returns: Returns the value of BarLength attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ getBarSurface()

IfcReinforcingBarSurfaceEnum OdIfc4::IfcReinforcingBar::getBarSurface ( ) const

Returns the value of BarSurface attribute. This attribute represents indicator for whether the bar surface is plain or textured.

Returns: Returns the value of BarSurface attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ getCrossSectionArea()

double OdIfc4::IfcReinforcingBar::getCrossSectionArea ( ) const

Returns the value of CrossSectionArea attribute. This attribute represents the effective cross-section area of the reinforcing bar or group of bars.

Returns: Returns the value of CrossSectionArea attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcReinforcingBar::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ getNominalDiameter()

double OdIfc4::IfcReinforcingBar::getNominalDiameter ( ) const

Returns the value of NominalDiameter attribute. This attribute represents the nominal diameter defining the cross-section size of the reinforcing bar.

Returns: Returns the value of NominalDiameter attribute.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ getPredefinedType()

IfcReinforcingBarTypeEnum OdIfc4::IfcReinforcingBar::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents the role, purpose or usage of the bar, i.e. the kind of loads and stresses it is intended to carry.

Returns: Returns the value of PredefinedType attribute.

Remarks: IFC4 CHANGE: Attribute renamed from BarRole to PredefinedType and made optional. Type changed from IfcReinforcingBarRoleEnum without changes to the range of enumeration items.

◆ inFields()

virtual OdResult OdIfc4::IfcReinforcingBar::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ isKindOf()

virtual bool OdIfc4::IfcReinforcingBar::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ outFields()

virtual OdResult OdIfc4::IfcReinforcingBar::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcReinforcingBar::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcReinforcingBar::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ setBarLength()

void OdIfc4::IfcReinforcingBar::setBarLength ( double BarLength )

Sets the value of BarLength attribute. This attribute represents the total length of the reinforcing bar. The total length of bended bars are calculated according to local standards with corrections for the bends.

Parameters

BarLength [in] Bar length to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ setBarSurface()

void OdIfc4::IfcReinforcingBar::setBarSurface ( IfcReinforcingBarSurfaceEnum BarSurface )

Sets the value of BarSurface attribute. This attribute represents indicator for whether the bar surface is plain or textured.

Parameters

BarSurface [in] Bar surface to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ setCrossSectionArea()

void OdIfc4::IfcReinforcingBar::setCrossSectionArea ( double CrossSectionArea )

Sets the value of CrossSectionArea attribute. This attribute represents the effective cross-section area of the reinforcing bar or group of bars.

Parameters

CrossSectionArea [in] Cross-section area to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ setNominalDiameter()

void OdIfc4::IfcReinforcingBar::setNominalDiameter ( double NominalDiameter )

Sets the value of NominalDiameter attribute. This attribute represents the nominal diameter defining the cross-section size of the reinforcing bar.

Parameters

NominalDiameter [in] Nominal diameter to set.

Remarks: IFC4 CHANGE: Attribute is deprecated. Use corresponding attribute at IfcReinforcingBarType instead.

◆ setPredefinedType()

void OdIfc4::IfcReinforcingBar::setPredefinedType ( IfcReinforcingBarTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents the role, purpose or usage of the bar, i.e. the kind of loads and stresses it is intended to carry.

Parameters

PredefinedType [in] Predefined type to set.

Remarks: IFC4 CHANGE: Attribute renamed from BarRole to PredefinedType and made optional. Type changed from IfcReinforcingBarRoleEnum without changes to the range of enumeration items.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcReinforcingBar::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcReinforcingBar::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcReinforcingBar::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcReinforcingBar::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcReinforcingElement.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcReinforcingBar::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcReinforcingElement.

Member Data Documentation

◆ m_BarLength

IfcPositiveLengthMeasure OdIfc4::IfcReinforcingBar::m_BarLength

protected

Definition at line 309 of file Ifc4/IfcReinforcingBarAutoImpl.h.

◆ m_BarSurface

OdDAI::Enum OdIfc4::IfcReinforcingBar::m_BarSurface

protected

Definition at line 311 of file Ifc4/IfcReinforcingBarAutoImpl.h.

◆ m_CrossSectionArea

double OdIfc4::IfcReinforcingBar::m_CrossSectionArea

protected

Definition at line 308 of file Ifc4/IfcReinforcingBarAutoImpl.h.

◆ m_NominalDiameter

IfcPositiveLengthMeasure OdIfc4::IfcReinforcingBar::m_NominalDiameter

protected

Definition at line 307 of file Ifc4/IfcReinforcingBarAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc4::IfcReinforcingBar::m_PredefinedType

protected

Definition at line 310 of file Ifc4/IfcReinforcingBarAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcReinforcingBarAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcReinforcingBar()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getBarLength()

◆ getBarSurface()

◆ getCrossSectionArea()

◆ getInstanceType()

◆ getNominalDiameter()

◆ getPredefinedType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setBarLength()

◆ setBarSurface()

◆ setCrossSectionArea()

◆ setNominalDiameter()

◆ setPredefinedType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_BarLength

◆ m_BarSurface

◆ m_CrossSectionArea

◆ m_NominalDiameter

◆ m_PredefinedType
