#include <IfcRelAssociatesAutoImpl.h>

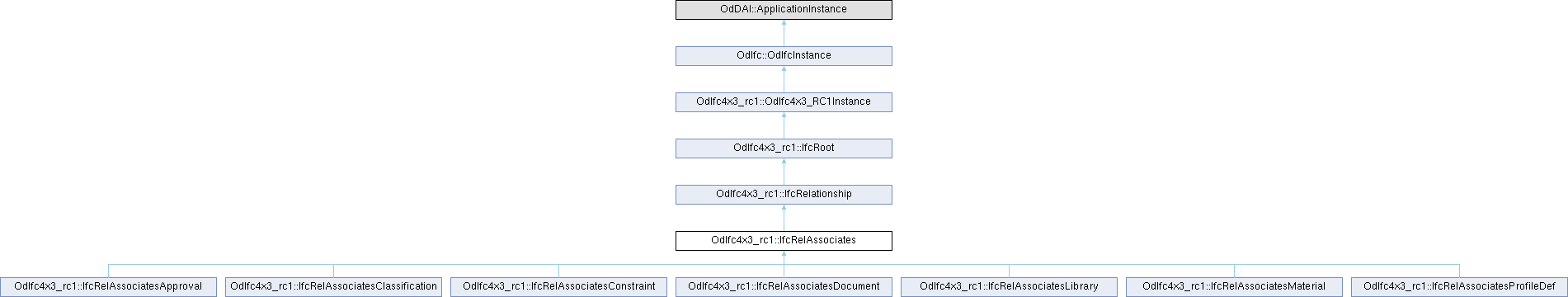

Inheritance diagram for OdIfc4x3_rc1::IfcRelAssociates:

Public Member Functions
void	getRelatedObjects (OdArray< OdDAI::Select > &RelatedObjects) const

void	getRelatedObjectsWrapperArray (OdArray< IfcDefinitionSelect > &RelatedObjects) const

OdDAI::SetOfSelect &	relatedObjects ()

	IfcRelAssociates ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_rc1::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x3_rc1::OdIfc4x3_RC1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::SetOfSelect	m_RelatedObjects

Protected Attributes inherited from OdIfc4x3_rc1::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The association relationship IfcRelAssociates refers to sources of information (most notably a classification, library, document, approval, constraint, or material). The information associated can reside internally or externally of the project data. There is no dependency implied by the association.

EXAMPLE: Further external information can be provided to the tank equipment (as subtype of IfcProduct) in terms of its classification and instruction documents, the source of the additional information is held external to the project data model.

Association relationships can be established to objects (occurrences as subtypes of IfcObject) or to types (as subtypes of IfcTypeObject). Some associations (such as approval, or document) can also be applied to property templates (as subtypes of IfcPropertyDefinition). The association relationship establishes an association between one to many objects or property templates and the associated information. The subtypes of IfcRelAssociates establish the particular semantic meaning of the association relationship.

Remarks: EXAMPLE: The classification information for the storage tank equipment can be associated to the IfcTankType (subtype of IfcTypeObject), defining the specific information for all occurrences of that tank in the project. Therefore the association of the Uniclass notation 'L6814' can be associated by a subtype of IfcRelAssociates to the type information. EXAMPLE: The classification information for a particular space within a building can be associated to the IfcSpace object (subtype of IfcObject), defining a particular occurrence of space. Therefore the association of the DIN notation 'NF 1.5' can be associated by a subtype of IfcRelAssociates to the object.

\changes

IFC4 changes: Entity has been changed into an ABSTRACT supertype. Type of the RelatedObjects attribute changed from "set[1:?] of IfcRoot" to "set[1:?] of IfcDefinitionSelect".

Definition at line 64 of file Ifc4x3_RC1/IfcRelAssociatesAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcRelAssociates()

OdIfc4x3_rc1::IfcRelAssociates::IfcRelAssociates ( )

Default constructor for the IfcRelAssociates class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_rc1::IfcRelAssociates::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_rc1::IfcRelationship.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_rc1::IfcRelAssociates::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_rc1::IfcRoot.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_rc1::IfcRelAssociates::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_rc1::IfcRoot.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_rc1::IfcRelAssociates::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_rc1::IfcRelationship.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ getRelatedObjects()

void OdIfc4x3_rc1::IfcRelAssociates::getRelatedObjects ( OdArray< OdDAI::Select > & RelatedObjects ) const

Returns the value of RelatedObjects attribute. This attribute represents a set of object or property definitions to which the external references or information is associated. It includes object and type objects, property set templates, property templates and property sets and contexts.

Parameters

RelatedObjects [out] Receives the related objects.

Remarks: IFC4 CHANGE: The attribute datatype has been changed from IfcRoot to IfcDefinitionSelect.

◆ getRelatedObjectsWrapperArray()

void OdIfc4x3_rc1::IfcRelAssociates::getRelatedObjectsWrapperArray ( OdArray< IfcDefinitionSelect > & RelatedObjects ) const

Returns the value of RelatedObjects attribute. This attribute represents a set of object or property definitions to which the external references or information is associated. It includes object and type objects, property set templates, property templates and property sets and contexts.

Parameters

RelatedObjects [out] Receives the related objects.

Remarks: IFC4 CHANGE: The attribute datatype has been changed from IfcRoot to IfcDefinitionSelect.

◆ inFields()

virtual OdResult OdIfc4x3_rc1::IfcRelAssociates::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_rc1::IfcRoot.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ isKindOf()

virtual bool OdIfc4x3_rc1::IfcRelAssociates::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcRelationship.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ outFields()

virtual OdResult OdIfc4x3_rc1::IfcRelAssociates::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_rc1::IfcRoot.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcRelAssociates::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcRoot.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcRelAssociates::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcRoot.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ relatedObjects()

OdDAI::SetOfSelect & OdIfc4x3_rc1::IfcRelAssociates::relatedObjects ( )

Returns the value of RelatedObjects attribute. This attribute represents a set of object or property definitions to which the external references or information is associated. It includes object and type objects, property set templates, property templates and property sets and contexts.

Returns: Returns the value of RelatedObjects attribute.

Remarks: IFC4 CHANGE: The attribute datatype has been changed from IfcRoot to IfcDefinitionSelect.

◆ setInverseCounterParts()

virtual void OdIfc4x3_rc1::IfcRelAssociates::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, and OdIfc4x3_rc1::IfcRelAssociatesMaterial.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcRelAssociates::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcRoot.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcRelAssociates::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcRoot.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_rc1::IfcRelAssociates::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_rc1::IfcRelationship.

Reimplemented in OdIfc4x3_rc1::IfcRelAssociatesApproval, OdIfc4x3_rc1::IfcRelAssociatesClassification, OdIfc4x3_rc1::IfcRelAssociatesConstraint, OdIfc4x3_rc1::IfcRelAssociatesDocument, OdIfc4x3_rc1::IfcRelAssociatesLibrary, OdIfc4x3_rc1::IfcRelAssociatesMaterial, and OdIfc4x3_rc1::IfcRelAssociatesProfileDef.
