#include <IfcImageTextureAutoImpl.h>

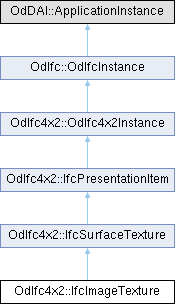

Inheritance diagram for OdIfc4x2::IfcImageTexture:

Public Member Functions
const OdAnsiString &	getURLReference () const

void	setURLReference (const OdAnsiString &URLReference)

	IfcImageTexture ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcSurfaceTexture
OdDAI::Boolean	getRepeatS () const

void	setRepeatS (OdDAI::Boolean RepeatS)

OdDAI::Boolean	getRepeatT () const

void	setRepeatT (OdDAI::Boolean RepeatT)

const OdAnsiString &	getMode () const

void	setMode (const OdAnsiString &Mode)

const OdDAIObjectId &	getTextureTransform () const

void	setTextureTransform (const OdDAIObjectId &TextureTransform)

void	getParameter (OdArray< OdAnsiString > &Parameter) const

OdDAI::ListOfOdAnsiString &	parameter ()

void	getInvIsMappedBy (OdDAIObjectIds &IsMappedBy) const

void	getInvUsedInStyles (OdDAIObjectIds &UsedInStyles) const

	IfcSurfaceTexture ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_URLReference

Protected Attributes inherited from OdIfc4x2::IfcSurfaceTexture
OdDAI::Boolean	m_RepeatS

OdDAI::Boolean	m_RepeatT

OdAnsiString	m_Mode

OdDAIObjectId	m_TextureTransform

OdDAI::ListOfOdAnsiString	m_Parameter

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcImageTexture provides a 2-dimensional texture that can be applied to a surface of a geometric item and that provides lighting parameters of a surface onto which it is mapped. The texture is provided as an image file at an external location for which an URL is provided. The following definitions from ISO/IEC 19775-1 X3D Architecture and base components (X3D Specification) apply: Greyscale pixels without alpha or simple transparency are treated as intensity textures. Greyscale pixels with alpha or simple transparency are treated as intensity plus alpha textures. RGB pixels without alpha channel or simple transparency are treated as full RGB textures. RGB pixels with alpha channel or simple transparency are treated as full RGB plus alpha textures. If the image specifies colours as indexed-colour (that is, palettes or colourmaps), the following semantics should be used (note that ‘greyscale’ refers to a palette entry with equal red, green, and blue values):

If all the colours in the palette are greyscale and there is no transparency chunk, it is treated as an intensity texture.
If all the colours in the palette are greyscale and there is a transparency chunk, it is treated as an intensity plus opacity texture.
If any colour in the palette is not grey and there is no transparency chunk, it is treated as a full RGB texture.
If any colour in the palette is not grey and there is a transparency chunk, it is treated as a full RGB plus alpha texture. Texture nodes that require support for JPEG files interpret JPEG files as follows:

Greyscale files (number of components equals 1) are treated as intensity textures.
YCbCr files are treated as full RGB textures.
No other JPEG file types are required. It is recommended that other JPEG files are treated as a full RGB textures. Texture nodes that recommend support for GIF files follow the applicable semantics described above for the PNG format.

\changes

IFC4 changes: Attribute UrlReference renamed to URLReference. Type of the UrlReference attribute changed from "IfcIdentifier" to "IfcURIReference".

Definition at line 64 of file Ifc4x2/IfcImageTextureAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcImageTexture()

OdIfc4x2::IfcImageTexture::IfcImageTexture ( )

Default constructor for the IfcImageTexture class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcImageTexture::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcImageTexture::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcImageTexture::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ getURLReference()

const OdAnsiString & OdIfc4x2::IfcImageTexture::getURLReference ( ) const

Returns the value of URLReference attribute. This attribute represents location, provided as an URI, at which the image texture is published.

Returns: Returns the value of URLReference attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcImageTexture::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ isKindOf()

virtual bool OdIfc4x2::IfcImageTexture::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ outFields()

virtual OdResult OdIfc4x2::IfcImageTexture::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcImageTexture::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcImageTexture::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ setURLReference()

void OdIfc4x2::IfcImageTexture::setURLReference ( const OdAnsiString & URLReference )

Sets the value of URLReference attribute. This attribute represents location, provided as an URI, at which the image texture is published.

Parameters

URLReference [in] URL Reference to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcImageTexture::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcImageTexture::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcImageTexture::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcImageTexture::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcImageTexture::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcSurfaceTexture.

Member Data Documentation

◆ m_URLReference

OdAnsiString OdIfc4x2::IfcImageTexture::m_URLReference

protected

Definition at line 203 of file Ifc4x2/IfcImageTextureAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcImageTextureAutoImpl.h
