#include <IfcColourRgbAutoImpl.h>

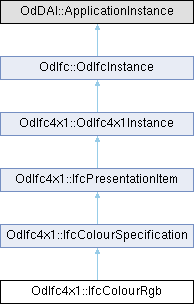

Inheritance diagram for OdIfc4x1::IfcColourRgb:

Public Member Functions
double	getRed () const

void	setRed (double Red)

double	getGreen () const

void	setGreen (double Green)

double	getBlue () const

void	setBlue (double Blue)

	IfcColourRgb ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcColourSpecification
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

	IfcColourSpecification ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcNormalisedRatioMeasure	m_Red

IfcNormalisedRatioMeasure	m_Green

IfcNormalisedRatioMeasure	m_Blue

Protected Attributes inherited from OdIfc4x1::IfcColourSpecification
OdAnsiString	m_Name

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A colour rgb is defined by three colour component values for red, green, and blue in the RGB colour model.

Definition at line 40 of file Ifc4x1/IfcColourRgbAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcColourRgb()

OdIfc4x1::IfcColourRgb::IfcColourRgb ( )

Default constructor for the IfcColourRgb class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcColourRgb::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcColourRgb::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ getBlue()

double OdIfc4x1::IfcColourRgb::getBlue ( ) const

Returns the value of Blue attribute. This attribute represents the intensity of the blue colour component.

Returns: Returns the value of Blue attribute.

◆ getGreen()

double OdIfc4x1::IfcColourRgb::getGreen ( ) const

Returns the value of Green attribute. This attribute represents the intensity of the green colour component.

Returns: Returns the value of Green attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcColourRgb::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ getRed()

double OdIfc4x1::IfcColourRgb::getRed ( ) const

Returns the value of Red attribute. This attribute represents the intensity of the red colour component.

Returns: Returns the value of Red attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcColourRgb::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ isKindOf()

virtual bool OdIfc4x1::IfcColourRgb::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ outFields()

virtual OdResult OdIfc4x1::IfcColourRgb::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcColourRgb::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcColourRgb::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ setBlue()

void OdIfc4x1::IfcColourRgb::setBlue ( double Blue )

Sets the value of Blue attribute. This attribute represents the intensity of the blue colour component.

Parameters

Blue	[in] Blue to set.

◆ setGreen()

void OdIfc4x1::IfcColourRgb::setGreen ( double Green )

Sets the value of Green attribute. This attribute represents the intensity of the green colour component.

Parameters

Green [in] Green to set.

◆ setRed()

void OdIfc4x1::IfcColourRgb::setRed ( double Red )

Sets the value of Red attribute. This attribute represents the intensity of the red colour component.

Parameters

Red	[in] Red to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcColourRgb::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcColourRgb::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcColourRgb::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ unsetAttr() [1/2]

virtual void OdIfc4x1::IfcColourRgb::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x1::IfcColourSpecification.

◆ unsetAttr() [2/2]

virtual void OdIfc4x1::IfcColourRgb::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x1::IfcColourSpecification.

Member Data Documentation

◆ m_Blue

IfcNormalisedRatioMeasure OdIfc4x1::IfcColourRgb::m_Blue

protected

Definition at line 211 of file Ifc4x1/IfcColourRgbAutoImpl.h.

◆ m_Green

IfcNormalisedRatioMeasure OdIfc4x1::IfcColourRgb::m_Green

protected

Definition at line 210 of file Ifc4x1/IfcColourRgbAutoImpl.h.

◆ m_Red

IfcNormalisedRatioMeasure OdIfc4x1::IfcColourRgb::m_Red

protected

Definition at line 209 of file Ifc4x1/IfcColourRgbAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x1/IfcColourRgbAutoImpl.h
