#include <IfcMaterialProfileAutoImpl.h>

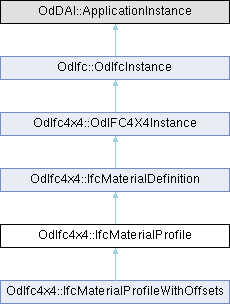

Inheritance diagram for OdIfc4x4::IfcMaterialProfile:

Public Member Functions
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

const OdDAIObjectId &	getMaterial () const

void	setMaterial (const OdDAIObjectId &Material)

const OdDAIObjectId &	getProfile () const

void	setProfile (const OdDAIObjectId &Profile)

int	getPriority () const

void	setPriority (int Priority)

const OdAnsiString &	getCategory () const

void	setCategory (const OdAnsiString &Category)

OdDAIObjectId	getInvToMaterialProfileSet () const

	IfcMaterialProfile ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcMaterialDefinition
void	getInvAssociatedTo (OdDAIObjectIds &AssociatedTo) const

void	getInvHasExternalReferences (OdDAIObjectIds &HasExternalReferences) const

void	getInvHasProperties (OdDAIObjectIds &HasProperties) const

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Name

OdAnsiString	m_Description

OdDAIObjectId	m_Material

OdDAIObjectId	m_Profile

int	m_Priority

OdAnsiString	m_Category

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcMaterialProfileSet

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcMaterialProfile is a single and identifiable cross section of an element which is constructed of a number of profiles (one or more).

Definition at line 42 of file IFC4X4/IfcMaterialProfileAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcMaterialProfile()

OdIfc4x4::IfcMaterialProfile::IfcMaterialProfile ( )

Default constructor for the IfcMaterialProfile class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcMaterialProfile::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcMaterialProfile::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcMaterialProfile::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ getCategory()

const OdAnsiString & OdIfc4x4::IfcMaterialProfile::getCategory ( ) const

Returns the value of Category attribute. This attribute represents category of the material profile, e.g. the role it has in the profile set it belongs to. The list of keywords can be extended by model view definitions, however the following keywords apply in general: 'LoadBearing' — the material profile having a load bearing function. 'Insulation' — the material profile having an insulating function. 'Finish' — the material profile being the finish.

Returns: Returns the value of Category attribute.

◆ getDescription()

const OdAnsiString & OdIfc4x4::IfcMaterialProfile::getDescription ( ) const

Returns the value of Description attribute. This attribute represents definition of the material profile in descriptive terms.

Returns: Returns the value of Description attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcMaterialProfile::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ getInvToMaterialProfileSet()

OdDAIObjectId OdIfc4x4::IfcMaterialProfile::getInvToMaterialProfileSet ( ) const

Returns the value of ToMaterialProfileSet attribute. This attribute represents material profile set in which this material profile is included.

Parameters

ToMaterialProfileSet [out] Receives the value of ToMaterialProfileSet attribute.

◆ getMaterial()

const OdDAIObjectId & OdIfc4x4::IfcMaterialProfile::getMaterial ( ) const

Returns the value of Material attribute. This attribute represents optional reference to the material from which the profile is constructed.

Returns: Returns the value of Material attribute.

◆ getName()

const OdAnsiString & OdIfc4x4::IfcMaterialProfile::getName ( ) const

Returns the value of Name attribute. This attribute represents the name by which the material profile is known.

Returns: Returns the value of Name attribute.

◆ getPriority()

int OdIfc4x4::IfcMaterialProfile::getPriority ( ) const

Returns the value of Priority attribute. This attribute represents the relative priority of the profile, expressed as normalized integer range [0..100]. This attribute controls how profiles intersect in connections and corners of building elements. A profile from one element protrudes into (i.e. displaces) a profile from another element in a joint of these elements if the former element's profile has higher priority than the latter. The priority value for a material profile in an element needs to be set and maintained by software applications in relation to the material profiles in connected elements.

Returns: Returns the value of Priority attribute.

◆ getProfile()

const OdDAIObjectId & OdIfc4x4::IfcMaterialProfile::getProfile ( ) const

Returns the value of Profile attribute. This attribute represents identification of the profile for which this material profile is associating material.

Returns: Returns the value of Profile attribute.

◆ inFields()

virtual OdResult OdIfc4x4::IfcMaterialProfile::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ isKindOf()

virtual bool OdIfc4x4::IfcMaterialProfile::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ outFields()

virtual OdResult OdIfc4x4::IfcMaterialProfile::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcMaterialProfile::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcMaterialProfile::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ setCategory()

void OdIfc4x4::IfcMaterialProfile::setCategory ( const OdAnsiString & Category )

Sets the value of Category attribute. This attribute represents category of the material profile, e.g. the role it has in the profile set it belongs to. The list of keywords can be extended by model view definitions, however the following keywords apply in general: 'LoadBearing' — the material profile having a load bearing function. 'Insulation' — the material profile having an insulating function. 'Finish' — the material profile being the finish.

Parameters

Category [in] Category to set.

◆ setDescription()

void OdIfc4x4::IfcMaterialProfile::setDescription ( const OdAnsiString & Description )

Sets the value of Description attribute. This attribute represents definition of the material profile in descriptive terms.

Parameters

Description [in] Description to set.

◆ setMaterial()

void OdIfc4x4::IfcMaterialProfile::setMaterial ( const OdDAIObjectId & Material )

Sets the value of Material attribute. This attribute represents optional reference to the material from which the profile is constructed.

Parameters

Material [in] Material to set.

◆ setName()

void OdIfc4x4::IfcMaterialProfile::setName ( const OdAnsiString & Name )

Sets the value of Name attribute. This attribute represents the name by which the material profile is known.

Parameters

Name	[in] Name to set.

◆ setPriority()

void OdIfc4x4::IfcMaterialProfile::setPriority ( int Priority )

Sets the value of Priority attribute. This attribute represents the relative priority of the profile, expressed as normalized integer range [0..100]. This attribute controls how profiles intersect in connections and corners of building elements. A profile from one element protrudes into (i.e. displaces) a profile from another element in a joint of these elements if the former element's profile has higher priority than the latter. The priority value for a material profile in an element needs to be set and maintained by software applications in relation to the material profiles in connected elements.

Parameters

Priority [in] Priority to set.

◆ setProfile()

void OdIfc4x4::IfcMaterialProfile::setProfile ( const OdDAIObjectId & Profile )

Sets the value of Profile attribute. This attribute represents identification of the profile for which this material profile is associating material.

Parameters

Profile [in] Profile to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcMaterialProfile::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcMaterialProfile::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcMaterialProfile::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcMaterialDefinition.

Reimplemented in OdIfc4x4::IfcMaterialProfileWithOffsets.
