#include <IfcPropertyBoundedValueAutoImpl.h>

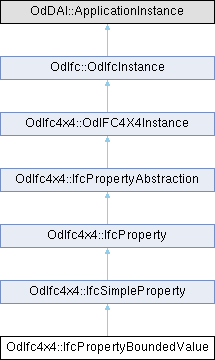

Inheritance diagram for OdIfc4x4::IfcPropertyBoundedValue:

Public Member Functions
IfcValue	upperBoundValue ()

IfcValue	lowerBoundValue ()

IfcUnit	unit ()

IfcValue	setPointValue ()

	IfcPropertyBoundedValue ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcProperty
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getSpecification () const

void	setSpecification (const OdAnsiString &Specification)

void	getInvPartOfPset (OdDAIObjectIds &PartOfPset) const

void	getInvPropertyForDependance (OdDAIObjectIds &PropertyForDependance) const

void	getInvPropertyDependsOn (OdDAIObjectIds &PropertyDependsOn) const

void	getInvPartOfComplex (OdDAIObjectIds &PartOfComplex) const

void	getInvHasConstraints (OdDAIObjectIds &HasConstraints) const

void	getInvHasApprovals (OdDAIObjectIds &HasApprovals) const

	IfcProperty ()

Public Member Functions inherited from OdIfc4x4::IfcPropertyAbstraction
void	getInvHasExternalReferences (OdDAIObjectIds &HasExternalReferences) const

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Select	m_UpperBoundValue

OdDAI::Select	m_LowerBoundValue

OdDAI::Select	m_Unit

OdDAI::Select	m_SetPointValue

Protected Attributes inherited from OdIfc4x4::IfcProperty
OdAnsiString	m_Name

OdAnsiString	m_Specification

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

This class defines a property object which has a maximum of two (numeric or descriptive) values assigned. The first value specifies the upper bound and the second value specifies the lower bound. It defines a property - value bound (min-max) combination for which the property Name, optional Description, optional UpperBoundValue with measure type, optional LowerBoundValue with measure type, and optional Unit is specified. A SetPointValue attribute can be provided in addition to the upper and lower bound values for operational value setting.

Remarks: An IfcPropertyBoundedValue can be exchanged with no values assigned yet. In this case the LowerBoundValue and the UpperBoundValue are set to NIL.

Definition at line 48 of file IFC4X4/IfcPropertyBoundedValueAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcPropertyBoundedValue()

OdIfc4x4::IfcPropertyBoundedValue::IfcPropertyBoundedValue ( )

Default constructor for the IfcPropertyBoundedValue class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcPropertyBoundedValue::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcSimpleProperty.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcPropertyBoundedValue::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcProperty.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcPropertyBoundedValue::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcProperty.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcPropertyBoundedValue::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcSimpleProperty.

◆ inFields()

virtual OdResult OdIfc4x4::IfcPropertyBoundedValue::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcProperty.

◆ isKindOf()

virtual bool OdIfc4x4::IfcPropertyBoundedValue::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcSimpleProperty.

◆ lowerBoundValue()

IfcValue OdIfc4x4::IfcPropertyBoundedValue::lowerBoundValue ( )

Returns the value of LowerBoundValue attribute. LowerBoundValue is lower bound value for the interval defining the property value. If the value is not specified, it indicates an open bound (all values to be lower than or equal to UpperBoundValue).

Returns: Returns the value of LowerBoundValue attribute.

◆ outFields()

virtual OdResult OdIfc4x4::IfcPropertyBoundedValue::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcProperty.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcPropertyBoundedValue::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcProperty.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcPropertyBoundedValue::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcProperty.

◆ setPointValue()

IfcValue OdIfc4x4::IfcPropertyBoundedValue::setPointValue ( )

Returns the value of SetPointValue attribute. SetPointValue is set point value as typically used for operational value setting.

Returns: Returns the value of SetPointValue attribute.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcPropertyBoundedValue::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcProperty.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcPropertyBoundedValue::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcProperty.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcPropertyBoundedValue::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcSimpleProperty.

◆ unit()

IfcUnit OdIfc4x4::IfcPropertyBoundedValue::unit ( )

Returns the value of Unit attribute. This attribute represents a unit for the upper and lower bound values. If this attribute is not specified, the default value for the measure type is used as defined by the global unit assignment at IfcProject.UnitInContext. The applicable unit is then selected by the underlying TYPE of the UpperBoundValue, LowerBoundValue, and SetPointValue.

Returns: Returns the value of Unit attribute.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcPropertyBoundedValue::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcProperty.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcPropertyBoundedValue::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcProperty.

◆ upperBoundValue()

IfcValue OdIfc4x4::IfcPropertyBoundedValue::upperBoundValue ( )

Returns the value of UpperBoundValue attribute. UpperBoundValue is upper bound value for the interval defining the property value. If the value is not specified, it indicates an open bound (all values to be greater than or equal to LowerBoundValue).

Returns: Returns the value of UpperBoundValue attribute.

Member Data Documentation

◆ m_LowerBoundValue

OdDAI::Select OdIfc4x4::IfcPropertyBoundedValue::m_LowerBoundValue

protected

Definition at line 224 of file IFC4X4/IfcPropertyBoundedValueAutoImpl.h.

◆ m_SetPointValue

OdDAI::Select OdIfc4x4::IfcPropertyBoundedValue::m_SetPointValue

protected

Definition at line 226 of file IFC4X4/IfcPropertyBoundedValueAutoImpl.h.

◆ m_Unit

OdDAI::Select OdIfc4x4::IfcPropertyBoundedValue::m_Unit

protected

Definition at line 225 of file IFC4X4/IfcPropertyBoundedValueAutoImpl.h.

◆ m_UpperBoundValue

OdDAI::Select OdIfc4x4::IfcPropertyBoundedValue::m_UpperBoundValue

protected

Definition at line 223 of file IFC4X4/IfcPropertyBoundedValueAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcPropertyBoundedValueAutoImpl.h
