OdIfc2x2_final::IfcSimpleProperty Class Reference

#include <IfcSimplePropertyAutoImpl.h>

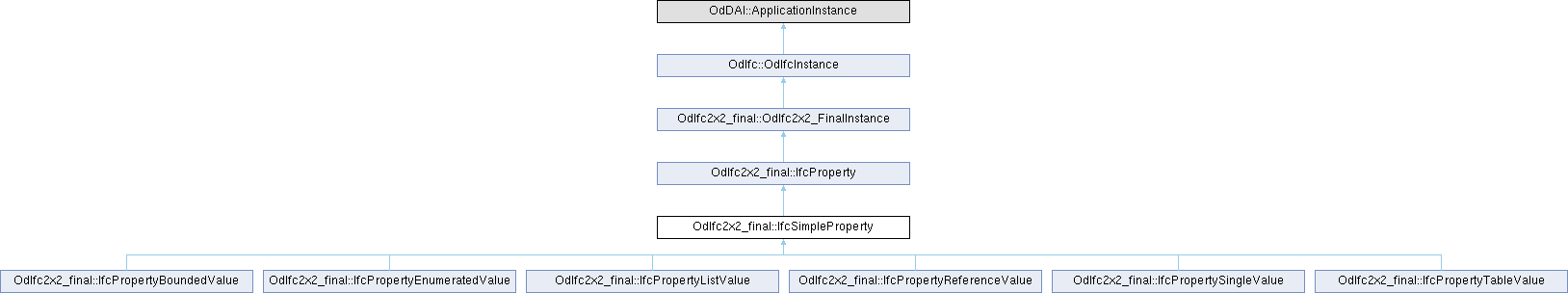

Inheritance diagram for OdIfc2x2_final::IfcSimpleProperty:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
Public Member Functions inherited from OdIfc2x2_final::IfcProperty
const OdAnsiString &	getName () const
void	setName (const OdAnsiString &Name)
const OdAnsiString &	getDescription () const
void	setDescription (const OdAnsiString &Description)
void	getInvPropertyForDependance (OdDAIObjectIds &PropertyForDependance) const
void	getInvPropertyDependsOn (OdDAIObjectIds &PropertyDependsOn) const
void	getInvPartOfComplex (OdDAIObjectIds &PartOfComplex) const
	IfcProperty ()
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual OdRxValue	getAttr (const char *attrName) const override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Attributes inherited from OdIfc2x2_final::IfcProperty
OdAnsiString	m_Name
OdAnsiString	m_Description
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Detailed Description

IfcSimpleProperty is a generalization of a single property object. Various subtypes of IfcSimpleProperty establish different ways in which a property value can be set.

Remarks

This definition may not be instantiated.

Definition at line 44 of file Ifc2x2_Final/IfcSimplePropertyAutoImpl.h.

Member Function Documentation

getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcSimpleProperty::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcProperty.

Reimplemented in OdIfc2x2_final::IfcPropertyBoundedValue, OdIfc2x2_final::IfcPropertyEnumeratedValue, OdIfc2x2_final::IfcPropertyListValue, OdIfc2x2_final::IfcPropertyReferenceValue, OdIfc2x2_final::IfcPropertySingleValue, and OdIfc2x2_final::IfcPropertyTableValue.

isKindOf()

virtual bool OdIfc2x2_final::IfcSimpleProperty::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcProperty.

Reimplemented in OdIfc2x2_final::IfcPropertyBoundedValue, OdIfc2x2_final::IfcPropertyEnumeratedValue, OdIfc2x2_final::IfcPropertyListValue, OdIfc2x2_final::IfcPropertyReferenceValue, OdIfc2x2_final::IfcPropertySingleValue, and OdIfc2x2_final::IfcPropertyTableValue.

type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcSimpleProperty::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcProperty.

Reimplemented in OdIfc2x2_final::IfcPropertyBoundedValue, OdIfc2x2_final::IfcPropertyEnumeratedValue, OdIfc2x2_final::IfcPropertyListValue, OdIfc2x2_final::IfcPropertyReferenceValue, OdIfc2x2_final::IfcPropertySingleValue, and OdIfc2x2_final::IfcPropertyTableValue.

---

The documentation for this class was generated from the following file:

• Ifc2x2_Final/IfcSimplePropertyAutoImpl.h
