#include <IfcSlabStandardCaseAutoImpl.h>

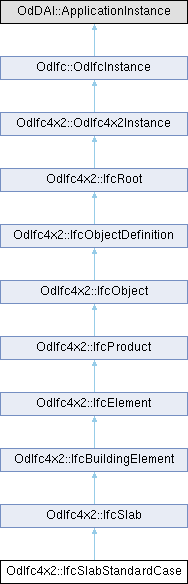

Inheritance diagram for OdIfc4x2::IfcSlabStandardCase:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4x2::IfcSlab
IfcSlabTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcSlabTypeEnum PredefinedType)

	IfcSlab ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

	IfcElement ()

Public Member Functions inherited from OdIfc4x2::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x2::IfcSlab
OdDAI::Enum	m_PredefinedType

Protected Attributes inherited from OdIfc4x2::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x2::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

The standard slab, IfcSlabStandardCase, defines a slab with certain constraints for the provision of material usage, parameters and with certain constraints for the geometric representation. The IfcSlabStandardCase handles all cases of slabs, that: have a reference to the IfcMaterialLayerSetUsage defining the material layers of the slab with thicknesses are based on an extrusion of a planar surface as defined by the slab profile have a constant thickness along the extrusion direction are consistent in using the correct material layer set offset to the base planar surface in regard to the shape representation are extruded either perpendicular or slanted to the plane surface

Material Layer Set Usage - Multi-layer slabs can be represented by referring to several IfcMaterialLayer's within the IfcMaterialLayerSet that is referenced from the IfcMaterialLayerSetUsage. Material information can also be given at the IfcSlabType, defining the common attribute data for all occurrences of the same type. It is then accessible by the inverse IsDefinedBy relationship pointing to IfcSlabType.HasAssociations and via IfcRelAssociatesMaterial.RelatingMaterial. The IfcSlabStandardCase defines in addition that the IfcSlabType should have a unique IfcMaterialLayerSet, that is referenced by the IfcMaterialLayerSetUsage assigned to all occurrences of this IfcSlabType.

The image below illustrates assignment of IfcMaterialLayerSetUsage and IfcMaterialLayerSet to the IfcSlabStandardCase as the slab occurrence and to the IfcSlabType. The same IfcMaterialLayerSet is shared by many occurrences of IfcMaterialLayerSetUsage. This relationship is consistent to the relationship between the IfcSlabType and the IfcSlabStandardCase.

The image below illustrates slab material usage, where the following conventions are met: The reference coordinate system is the coordinate system established by the IfcExtrudedAreaSolid.Position. The reference plane is the plane defined by the extruded profile of IfcExtrudedAreaSolid.SweptSolid. The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is given as a distance from this plane. The IfcMaterialLayerSetUsage.DirectionSense defines how the IfcMaterialLayer's are assigned to the reference plane. POSITIVE means in direction to the positive z-axis of the reference coordinate system. The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is the distance parallel to the reference plane and always perpendicular to the base (XY) plane of the reference coordinate system. The Thickness of each IfcMaterialLayer is the parallel distance (measured perpendicular to the base plane). The TotalThickness of the IfcMaterialLayerSet is the sum of all layer thicknesses and in case of a perpendicular extrusion identical with IfcExtrudedAreaSolid.Depth The IfcMaterialLayerSetUsage.LayerSetDirection is always AXIS3.

Body SweptSolid Geometry - The following additional constraints apply to the swept solid representation:

Solid: IfcExtrudedAreaSolid is required, Profile: IfcArbitraryClosedProfileDef, IfcRectangleProfileDef, IfcCircleProfileDef, IfcEllipseProfileDef are supported. Extrusion: The profile can be extruded perpendicularly or non-perpendicularly to the plane of the swept profile. Material: The definition of the IfcMaterialLayerSetUsage, particularly of the OffsetFromReferenceLine and the ForLayerSet.TotalThickness, has to be consistent to the 'SweptSolid' representation.

The image below illustrates a 'SweptSolid' geometric representation. The following interpretation of dimension parameter applies for polygonal slabs (in ground floor view): IfcArbitraryClosedProfileDef.OuterCurve: closed bounded curve interpreted as area (or foot print) of the slab.

Body Clipping Geometry - The following constraints apply to the 'Clipping' representation: Solid: see 'SweptSolid' shape representation, Profile: see 'SweptSolid' shape representation, Extrusion: see 'SweptSolid' shape representation, Material: see 'SweptSolid' shape representation, Boolean result: The IfcBooleanClippingResult is supported, providing Boolean differences between the swept solid (here IfcExtrudedAreaSolid) and one or several IfcHalfSpaceSolid.

The image below illustrates a 'Clipping' geometric representation with definition of a roof slab using advanced geometric representation. The profile is extruded non-perpendicular and the slab body is clipped at the eave.

Definition at line 107 of file Ifc4x2/IfcSlabStandardCaseAutoImpl.h.

Member Function Documentation

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcSlabStandardCase::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcSlab.

◆ isKindOf()

virtual bool OdIfc4x2::IfcSlabStandardCase::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcSlab.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcSlabStandardCase::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcSlab.

The documentation for this class was generated from the following file:

Ifc4x2/IfcSlabStandardCaseAutoImpl.h
