#include <IfcDraughtingCalloutRelationshipAutoImpl.h>

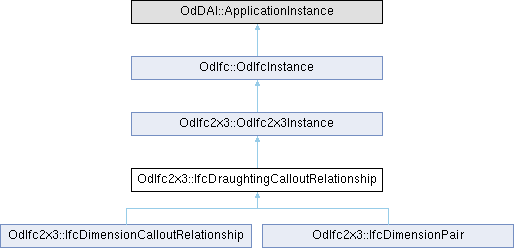

Inheritance diagram for OdIfc2x3::IfcDraughtingCalloutRelationship:

Public Member Functions
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

const OdDAIObjectId &	getRelatingDraughtingCallout () const

void	setRelatingDraughtingCallout (const OdDAIObjectId &RelatingDraughtingCallout)

const OdDAIObjectId &	getRelatedDraughtingCallout () const

void	setRelatedDraughtingCallout (const OdDAIObjectId &RelatedDraughtingCallout)

	IfcDraughtingCalloutRelationship ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Name

OdAnsiString	m_Description

OdDAIObjectId	m_RelatingDraughtingCallout

OdDAIObjectId	m_RelatedDraughtingCallout

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The draughting callout relationship establishes a logical relationship between two draughting callouts. The meaning of this relationship is given at the subtypes of this entity.

Definition at line 46 of file Ifc2x3/IfcDraughtingCalloutRelationshipAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcDraughtingCalloutRelationship()

OdIfc2x3::IfcDraughtingCalloutRelationship::IfcDraughtingCalloutRelationship ( )

Default constructor for the IfcDraughtingCalloutRelationship class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcDraughtingCalloutRelationship::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented in OdIfc2x3::IfcDimensionCalloutRelationship, and OdIfc2x3::IfcDimensionPair.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcDraughtingCalloutRelationship::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcDraughtingCalloutRelationship::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

◆ getDescription()

const OdAnsiString & OdIfc2x3::IfcDraughtingCalloutRelationship::getDescription ( ) const

Returns the value of Description attribute. This attribute represents the additional informal description of the relationship.

Returns: Returns the value of Description attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcDraughtingCalloutRelationship::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc2x3::IfcDimensionCalloutRelationship, and OdIfc2x3::IfcDimensionPair.

◆ getName()

const OdAnsiString & OdIfc2x3::IfcDraughtingCalloutRelationship::getName ( ) const

Returns the value of Name attribute. This attribute represents the word or group of words by which the relationship is referred to.

Returns: Returns the value of Name attribute.

◆ getRelatedDraughtingCallout()

const OdDAIObjectId & OdIfc2x3::IfcDraughtingCalloutRelationship::getRelatedDraughtingCallout ( ) const

Returns the value of RelatedDraughtingCallout attribute. This attribute represents the other of the draughting callouts which is a part of the relationship.

Returns: Returns the value of RelatedDraughtingCallout attribute.

◆ getRelatingDraughtingCallout()

const OdDAIObjectId & OdIfc2x3::IfcDraughtingCalloutRelationship::getRelatingDraughtingCallout ( ) const

Returns the value of RelatingDraughtingCallout attribute. This attribute represents the one of the draughting callouts which is a part of the relationship.

Returns: Returns the value of RelatingDraughtingCallout attribute.

◆ inFields()

virtual OdResult OdIfc2x3::IfcDraughtingCalloutRelationship::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

◆ isKindOf()

virtual bool OdIfc2x3::IfcDraughtingCalloutRelationship::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x3::IfcDimensionCalloutRelationship, and OdIfc2x3::IfcDimensionPair.

◆ outFields()

virtual OdResult OdIfc2x3::IfcDraughtingCalloutRelationship::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcDraughtingCalloutRelationship::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcDraughtingCalloutRelationship::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ setDescription()

void OdIfc2x3::IfcDraughtingCalloutRelationship::setDescription ( const OdAnsiString & Description )

Sets the value of Description attribute. This attribute represents the additional informal description of the relationship.

Parameters

Description [in] Description attribute to set.

◆ setInverseCounterParts()

virtual void OdIfc2x3::IfcDraughtingCalloutRelationship::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

◆ setName()

void OdIfc2x3::IfcDraughtingCalloutRelationship::setName ( const OdAnsiString & Name )

Sets the value of Name attribute. This attribute represents the word or group of words by which the relationship is referred to.

Parameters

Name	[in] Name attribute to set.

◆ setRelatedDraughtingCallout()

void OdIfc2x3::IfcDraughtingCalloutRelationship::setRelatedDraughtingCallout ( const OdDAIObjectId & RelatedDraughtingCallout )

Sets the value of RelatedDraughtingCallout attribute. This attribute represents the other of the draughting callouts which is a part of the relationship.

Parameters

RelatedDraughtingCallout [in] RelatedDraughtingCallout attribute to set.

◆ setRelatingDraughtingCallout()

void OdIfc2x3::IfcDraughtingCalloutRelationship::setRelatingDraughtingCallout ( const OdDAIObjectId & RelatingDraughtingCallout )

Sets the value of RelatingDraughtingCallout attribute. This attribute represents the one of the draughting callouts which is a part of the relationship.

Parameters

RelatingDraughtingCallout [in] RelatingDraughtingCallout attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcDraughtingCalloutRelationship::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcDraughtingCalloutRelationship::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcDraughtingCalloutRelationship::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x3::IfcDimensionCalloutRelationship, and OdIfc2x3::IfcDimensionPair.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcDraughtingCalloutRelationship::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcDraughtingCalloutRelationship::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Member Data Documentation

◆ m_Description

OdAnsiString OdIfc2x3::IfcDraughtingCalloutRelationship::m_Description

protected

Definition at line 255 of file Ifc2x3/IfcDraughtingCalloutRelationshipAutoImpl.h.

◆ m_Name

OdAnsiString OdIfc2x3::IfcDraughtingCalloutRelationship::m_Name

protected

Definition at line 254 of file Ifc2x3/IfcDraughtingCalloutRelationshipAutoImpl.h.

◆ m_RelatedDraughtingCallout

OdDAIObjectId OdIfc2x3::IfcDraughtingCalloutRelationship::m_RelatedDraughtingCallout

protected

Definition at line 257 of file Ifc2x3/IfcDraughtingCalloutRelationshipAutoImpl.h.

◆ m_RelatingDraughtingCallout

OdDAIObjectId OdIfc2x3::IfcDraughtingCalloutRelationship::m_RelatingDraughtingCallout

protected

Definition at line 256 of file Ifc2x3/IfcDraughtingCalloutRelationshipAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcDraughtingCalloutRelationshipAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcDraughtingCalloutRelationship()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getDescription()

◆ getInstanceType()

◆ getName()

◆ getRelatedDraughtingCallout()

◆ getRelatingDraughtingCallout()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setDescription()

◆ setInverseCounterParts()

◆ setName()

◆ setRelatedDraughtingCallout()

◆ setRelatingDraughtingCallout()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_Description

◆ m_Name

◆ m_RelatedDraughtingCallout

◆ m_RelatingDraughtingCallout
