#include <IfcSurfaceAutoImpl.h>

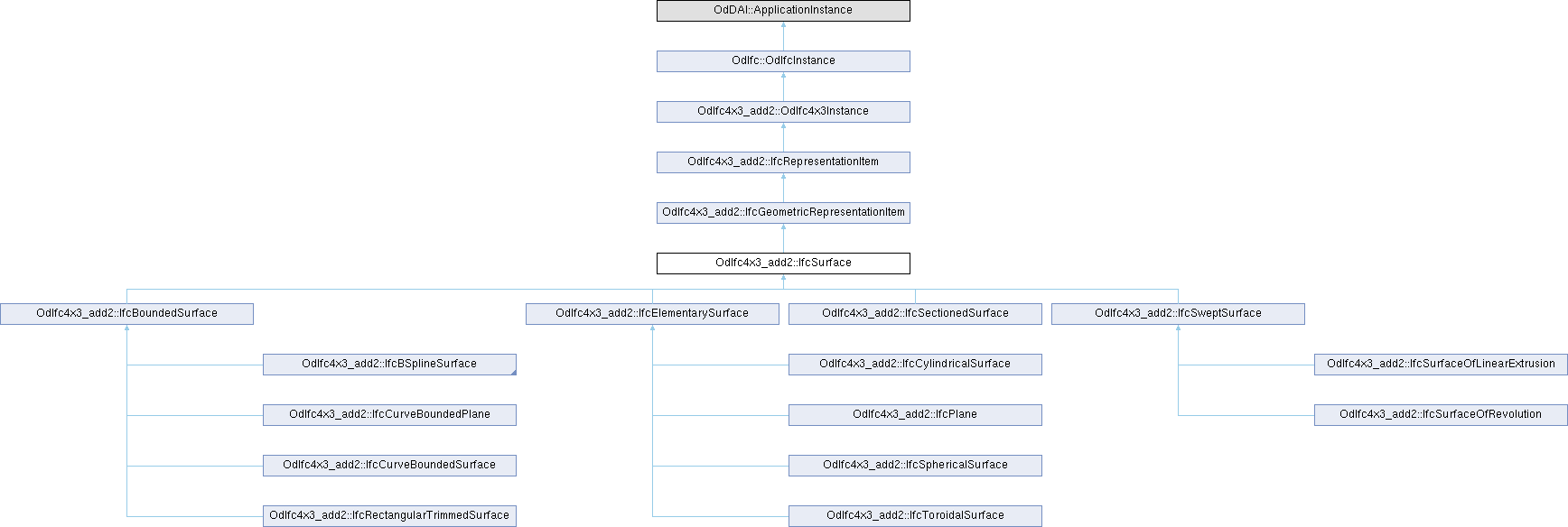

Inheritance diagram for OdIfc4x3_add2::IfcSurface:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4x3_add2::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

An IfcSurface is a 2-dimensional representation item positioned in 3-dimensional space. 2-dimensional means that each point at the surface can be defined by a 2-dimensional coordinate system, usually by u and v coordinates.

Remarks: This definition may not be instantiated.

Definition at line 45 of file Ifc4x3/IfcSurfaceAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcSurface::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_add2::IfcGeometricRepresentationItem.

Reimplemented in OdIfc4x3_add2::IfcBoundedSurface, OdIfc4x3_add2::IfcBSplineSurface, OdIfc4x3_add2::IfcBSplineSurfaceWithKnots, OdIfc4x3_add2::IfcCurveBoundedPlane, OdIfc4x3_add2::IfcCurveBoundedSurface, OdIfc4x3_add2::IfcCylindricalSurface, OdIfc4x3_add2::IfcElementarySurface, OdIfc4x3_add2::IfcPlane, OdIfc4x3_add2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x3_add2::IfcRectangularTrimmedSurface, OdIfc4x3_add2::IfcSectionedSurface, OdIfc4x3_add2::IfcSphericalSurface, OdIfc4x3_add2::IfcSurfaceOfLinearExtrusion, OdIfc4x3_add2::IfcSurfaceOfRevolution, OdIfc4x3_add2::IfcSweptSurface, and OdIfc4x3_add2::IfcToroidalSurface.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcSurface::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_add2::IfcGeometricRepresentationItem.

Reimplemented in OdIfc4x3_add2::IfcBoundedSurface, OdIfc4x3_add2::IfcBSplineSurface, OdIfc4x3_add2::IfcBSplineSurfaceWithKnots, OdIfc4x3_add2::IfcCurveBoundedPlane, OdIfc4x3_add2::IfcCurveBoundedSurface, OdIfc4x3_add2::IfcCylindricalSurface, OdIfc4x3_add2::IfcElementarySurface, OdIfc4x3_add2::IfcPlane, OdIfc4x3_add2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x3_add2::IfcRectangularTrimmedSurface, OdIfc4x3_add2::IfcSectionedSurface, OdIfc4x3_add2::IfcSphericalSurface, OdIfc4x3_add2::IfcSurfaceOfLinearExtrusion, OdIfc4x3_add2::IfcSurfaceOfRevolution, OdIfc4x3_add2::IfcSweptSurface, and OdIfc4x3_add2::IfcToroidalSurface.

◆ isKindOf()

virtual bool OdIfc4x3_add2::IfcSurface::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcGeometricRepresentationItem.

Reimplemented in OdIfc4x3_add2::IfcBoundedSurface, OdIfc4x3_add2::IfcBSplineSurface, OdIfc4x3_add2::IfcBSplineSurfaceWithKnots, OdIfc4x3_add2::IfcCurveBoundedPlane, OdIfc4x3_add2::IfcCurveBoundedSurface, OdIfc4x3_add2::IfcCylindricalSurface, OdIfc4x3_add2::IfcElementarySurface, OdIfc4x3_add2::IfcPlane, OdIfc4x3_add2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x3_add2::IfcRectangularTrimmedSurface, OdIfc4x3_add2::IfcSectionedSurface, OdIfc4x3_add2::IfcSphericalSurface, OdIfc4x3_add2::IfcSurfaceOfLinearExtrusion, OdIfc4x3_add2::IfcSurfaceOfRevolution, OdIfc4x3_add2::IfcSweptSurface, and OdIfc4x3_add2::IfcToroidalSurface.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcSurface::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_add2::IfcGeometricRepresentationItem.

Reimplemented in OdIfc4x3_add2::IfcBoundedSurface, OdIfc4x3_add2::IfcBSplineSurface, OdIfc4x3_add2::IfcBSplineSurfaceWithKnots, OdIfc4x3_add2::IfcCurveBoundedPlane, OdIfc4x3_add2::IfcCurveBoundedSurface, OdIfc4x3_add2::IfcCylindricalSurface, OdIfc4x3_add2::IfcElementarySurface, OdIfc4x3_add2::IfcPlane, OdIfc4x3_add2::IfcRationalBSplineSurfaceWithKnots, OdIfc4x3_add2::IfcRectangularTrimmedSurface, OdIfc4x3_add2::IfcSectionedSurface, OdIfc4x3_add2::IfcSphericalSurface, OdIfc4x3_add2::IfcSurfaceOfLinearExtrusion, OdIfc4x3_add2::IfcSurfaceOfRevolution, OdIfc4x3_add2::IfcSweptSurface, and OdIfc4x3_add2::IfcToroidalSurface.

The documentation for this class was generated from the following file:

Ifc4x3/IfcSurfaceAutoImpl.h
