#include <IfcStructuralResultGroupAutoImpl.h>

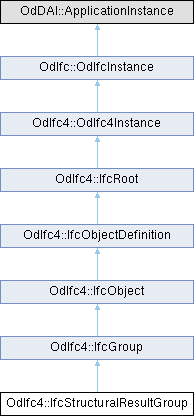

Inheritance diagram for OdIfc4::IfcStructuralResultGroup:

Public Member Functions
IfcAnalysisTheoryTypeEnum	getTheoryType () const

void	setTheoryType (IfcAnalysisTheoryTypeEnum TheoryType)

const OdDAIObjectId &	getResultForLoadGroup () const

void	setResultForLoadGroup (const OdDAIObjectId &ResultForLoadGroup)

OdDAI::Boolean	getIsLinear () const

void	setIsLinear (OdDAI::Boolean IsLinear)

void	getInvResultGroupFor (OdDAIObjectIds &ResultGroupFor) const

	IfcStructuralResultGroup ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcGroup
void	getInvIsGroupedBy (OdDAIObjectIds &IsGroupedBy) const

Public Member Functions inherited from OdIfc4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_TheoryType

OdDAIObjectId	m_ResultForLoadGroup

OdDAI::Boolean	m_IsLinear

Protected Attributes inherited from OdIfc4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcStructuralAnalysisModel

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

Instances of the entity IfcStructuralResultGroup are used to group results of structural analysis calculations and to capture the connection to the underlying basic load group. The basic functionality for grouping inherited from IfcGroup is used to collect instances from IfcStructuralReaction or its respective subclasses.

Group Assignment - The Group Assignment concept template applies to this entity as shown in the table below.

IsGrouped

RelatedObjects Description Structural reactions of the result group.

\changes

IFC4 changes: Type of the IsLinear attribute changed from "boolean" to "IfcBoolean".

Definition at line 56 of file Ifc4/IfcStructuralResultGroupAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcStructuralResultGroup()

OdIfc4::IfcStructuralResultGroup::IfcStructuralResultGroup ( )

Default constructor for the IfcStructuralResultGroup class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcStructuralResultGroup::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcGroup.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcStructuralResultGroup::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcGroup.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcStructuralResultGroup::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcGroup.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcStructuralResultGroup::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcGroup.

◆ getInvResultGroupFor()

void OdIfc4::IfcStructuralResultGroup::getInvResultGroupFor ( OdDAIObjectIds & ResultGroupFor ) const

Returns the value of ResultGroupFor attribute. This attribute represents reference to an instance of IfcStructuralAnalysisModel for which this instance captures a result.

Parameters

ResultGroupFor [out] Receives the value of ResultGroupFor attribute.

◆ getIsLinear()

OdDAI::Boolean OdIfc4::IfcStructuralResultGroup::getIsLinear ( ) const

Returns the value of IsLinear attribute. This attribute represents this value allows to easily recognize whether a linear analysis has been applied (allowing the superposition of analysis results).

Returns: Returns the value of IsLinear attribute.

◆ getResultForLoadGroup()

const OdDAIObjectId & OdIfc4::IfcStructuralResultGroup::getResultForLoadGroup ( ) const

Returns the value of ResultForLoadGroup attribute. This attribute represents reference to an instance of IfcStructuralLoadGroup for which this instance represents the result.

Returns: Returns the value of ResultForLoadGroup attribute.

◆ getTheoryType()

IfcAnalysisTheoryTypeEnum OdIfc4::IfcStructuralResultGroup::getTheoryType ( ) const

Returns the value of TheoryType attribute. This attribute represents specifies the analysis theory used to obtain the respective results.

Returns: Returns the value of TheoryType attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcStructuralResultGroup::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcGroup.

◆ isKindOf()

virtual bool OdIfc4::IfcStructuralResultGroup::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcGroup.

◆ outFields()

virtual OdResult OdIfc4::IfcStructuralResultGroup::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcGroup.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcStructuralResultGroup::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcGroup.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcStructuralResultGroup::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcGroup.

◆ setInverseCounterParts()

virtual void OdIfc4::IfcStructuralResultGroup::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

◆ setIsLinear()

void OdIfc4::IfcStructuralResultGroup::setIsLinear ( OdDAI::Boolean IsLinear )

Sets the value of IsLinear attribute. This attribute represents this value allows to easily recognize whether a linear analysis has been applied (allowing the superposition of analysis results).

Parameters

IsLinear [in] IsLinear attribute to set.

◆ setResultForLoadGroup()

void OdIfc4::IfcStructuralResultGroup::setResultForLoadGroup ( const OdDAIObjectId & ResultForLoadGroup )

Sets the value of ResultForLoadGroup attribute. This attribute represents reference to an instance of IfcStructuralLoadGroup for which this instance represents the result.

Parameters

ResultForLoadGroup [in] Result for load group to set.

◆ setTheoryType()

void OdIfc4::IfcStructuralResultGroup::setTheoryType ( IfcAnalysisTheoryTypeEnum TheoryType )

Sets the value of TheoryType attribute. This attribute represents specifies the analysis theory used to obtain the respective results.

Parameters

TheoryType [in] Theory type to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcStructuralResultGroup::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcGroup.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcStructuralResultGroup::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcGroup.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcStructuralResultGroup::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcGroup.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcStructuralResultGroup::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcGroup.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcStructuralResultGroup::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcGroup.

Friends And Related Symbol Documentation

◆ IfcStructuralAnalysisModel

friend class IfcStructuralAnalysisModel

friend

Definition at line 264 of file Ifc4/IfcStructuralResultGroupAutoImpl.h.

Member Data Documentation

◆ m_IsLinear

OdDAI::Boolean OdIfc4::IfcStructuralResultGroup::m_IsLinear

protected

Definition at line 261 of file Ifc4/IfcStructuralResultGroupAutoImpl.h.

◆ m_ResultForLoadGroup

OdDAIObjectId OdIfc4::IfcStructuralResultGroup::m_ResultForLoadGroup

protected

Definition at line 260 of file Ifc4/IfcStructuralResultGroupAutoImpl.h.

◆ m_TheoryType

OdDAI::Enum OdIfc4::IfcStructuralResultGroup::m_TheoryType

protected

Definition at line 259 of file Ifc4/IfcStructuralResultGroupAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcStructuralResultGroupAutoImpl.h

Public Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcStructuralResultGroup()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getInvResultGroupFor()

◆ getIsLinear()

◆ getResultForLoadGroup()

◆ getTheoryType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setInverseCounterParts()

◆ setIsLinear()

◆ setResultForLoadGroup()

◆ setTheoryType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Friends And Related Symbol Documentation

◆ IfcStructuralAnalysisModel

Member Data Documentation

◆ m_IsLinear

◆ m_ResultForLoadGroup

◆ m_TheoryType
