OdRxModule Class Reference

#include <RxModule.h>

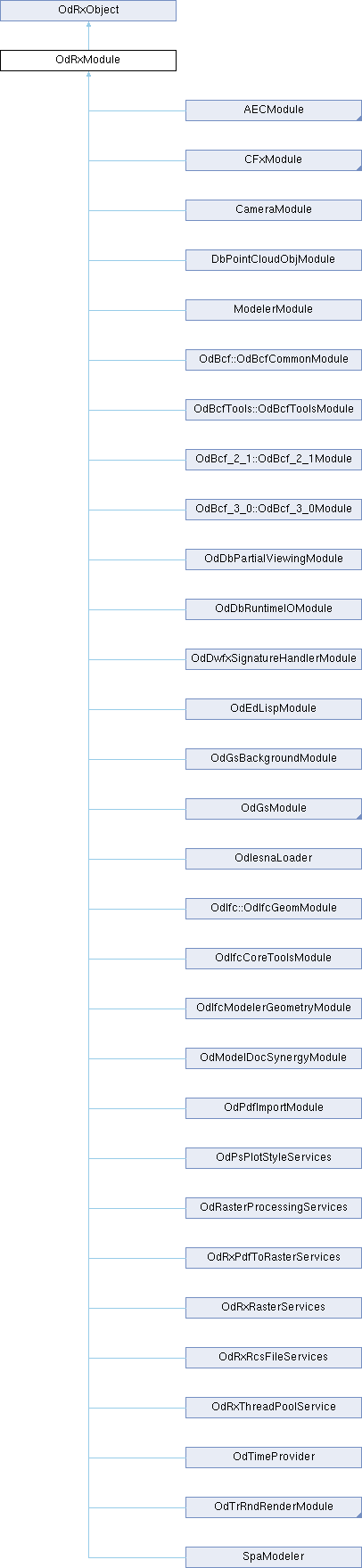

Inheritance diagram for OdRxModule:

Public Member Functions
	ODRX_DECLARE_MEMBERS (OdRxModule)
virtual void *	sysData ()=0
virtual void	deleteModule ()=0
virtual void	initApp ()=0
virtual void	uninitApp ()=0
virtual OdString	moduleName () const =0
Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()
	OdRxObject ()
virtual	~OdRxObject ()
virtual OdRxObject *	queryX (const OdRxClass *pClass) const
virtual OdRxObject *	x (const OdRxClass *pClass) const
virtual OdRxClass *	isA () const
virtual void	addRef ()=0
virtual void	release ()=0
virtual long	numRefs () const
bool	isKindOf (const OdRxClass *pClass) const
virtual OdRxObjectPtr	clone () const
virtual void	copyFrom (const OdRxObject *pSource)
virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const
virtual bool	isEqualTo (const OdRxObject *pOther) const

Additional Inherited Members
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)
static OdRxClass *	desc ()
static void	rxInit ()
static void	rxUninit ()

Detailed Description

<group OdRx_Classes>

This class provides the base implementation of custom applications (TX modules).

Corresponding C++ library: TD_Db

See also

<link CustomApplications.html, Creating Custom Applications>

OdRxStaticModule, OdRxPseudoStaticModule, OdRxMacModule, OdRxUnixModule, OdRxWin32Module classes

Definition at line 44 of file RxModule.h.

Member Function Documentation

deleteModule()

virtual void OdRxModule::deleteModule ( )

pure virtual

Declares the method deleting (unloading) the rx-module.

Remarks

It is the pure virtual method that does not have an implementation. You must redefine it in the derived class.

initApp()

virtual void OdRxModule::initApp ( )

pure virtual

Declares the notification method being called at the start of the client application.

Remarks

It is the pure virtual method that does not have an implementation. You must redefine it in the derived class. Overrides of this module should register any custom objects or commands defined in the module.

See also

<link CustomApplications.html, Creating Custom Applications>

Implemented in AECArchBase, AECArchDACHBase, AECBase, AecProperties, AECSchedule, AECScheduleData, AECStructureBase, BaseTrVecModule, CameraModule, DbPointCloudObjModule, ModelerModule, OdBcf::OdBcfCommonModule, OdBcf_2_1::OdBcf_2_1Module, OdBcf_3_0::OdBcf_3_0Module, OdBcfTools::OdBcfToolsModule, OdDbRuntimeIOModule, OdGsBaseModule, OdIfc::OdIfcGeomModule, OdIfcCoreToolsModule, OdIfcModelerGeometryModule, OdModelDocSynergyModule, and SpaModeler.

moduleName()

virtual OdString OdRxModule::moduleName ( ) const

pure virtual

Declares the method returning the module name for the rx-module instance.

Remarks

It is the pure virtual method that does not have an implementation. You must redefine it in the derived class.

ODRX_DECLARE_MEMBERS()

OdRxModule::ODRX_DECLARE_MEMBERS

(

OdRxModule

)

sysData()

virtual void * OdRxModule::sysData ( )

pure virtual

Declares the method returning the system data for the rx-module instance.

Remarks

It is the pure virtual method that does not have an implementation. You must redefine it in the derived class.

uninitApp()

virtual void OdRxModule::uninitApp ( )

pure virtual

Declares the notification method being called at the end of the client application.

Remarks

It is the pure virtual method that does not have an implementation. You must redefine it in the derived class. Overrides of this module should unregister any custom objects or commands defined in the module.

See also

<link CustomApplications.html, Creating Custom Applications>

Implemented in AECArchBase, AECArchDACHBase, AECBase, AecProperties, AECSchedule, AECScheduleData, AECStructureBase, BaseTrVecModule, CameraModule, DbPointCloudObjModule, ModelerModule, OdBcf::OdBcfCommonModule, OdBcf_2_1::OdBcf_2_1Module, OdBcf_3_0::OdBcf_3_0Module, OdBcfTools::OdBcfToolsModule, OdDbRuntimeIOModule, OdGsBaseModule, OdIfc::OdIfcGeomModule, OdIfcCoreToolsModule, OdIfcModelerGeometryModule, OdModelDocSynergyModule, and SpaModeler.

---

The documentation for this class was generated from the following file:

• RxModule.h
