#include <IfcElementComponentAutoImpl.h>

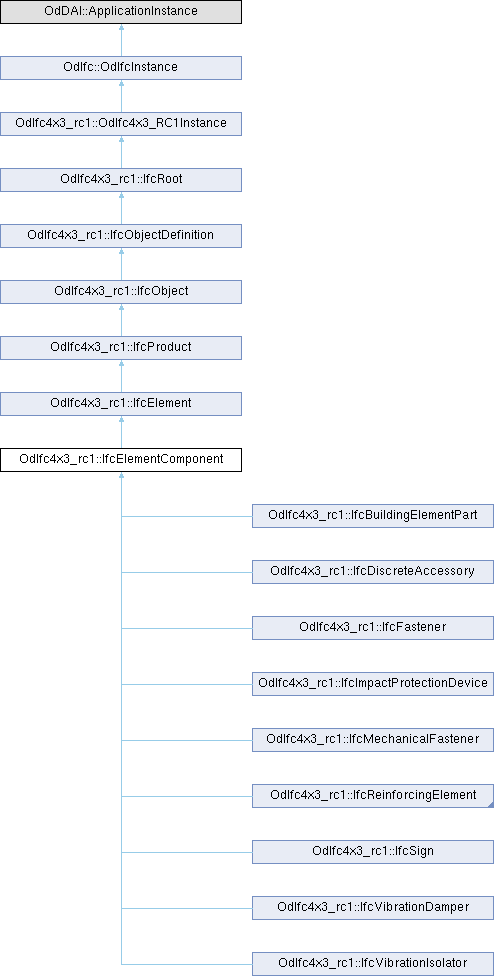

Inheritance diagram for OdIfc4x3_rc1::IfcElementComponent:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4x3_rc1::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

	IfcElement ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_rc1::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x3_rc1::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x3_rc1::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x3_rc1::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x3_rc1::OdIfc4x3_RC1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x3_rc1::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x3_rc1::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x3_rc1::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x3_rc1::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

An element component is a representation for minor items included in, added to or connecting to or between elements, which usually are not of interest from the overall building structure viewpoint. However, these small parts can have vital and load carrying functions within the construction. These items do not provide any actual space boundaries. Typical examples of _IfcElementComponent_s include different kinds of fasteners and various accessories.

It is often desirable to model a number of same-shaped element components by means of a single occurrence object, e.g. several bolts within a connection or a row of reinforcement elements. In this IFC release, this is possible by means of multiple mapped representation as documented below. To express the multiplicity of element components also on a higher semantic level, a Qto_ElementComponentPatternQuantities should be provided via IfcRelDefinesByProperties and contain the number of pieces which are placed by a single IfcElementComponent instance.

Symbolic Representation - A symbolic representation is defined for a row of components or several rows of components within a single instance of IfcElementComponent. Such rows or arrays can contain possibly large numbers of individual pieces. The product definition shape consists of an IfcShapeRepresentation with the attribute values: RepresentationIdentifier : 'Row' RepresentationType : 'GeometricCurveSet'

and one or several curves as geometric items. The curves represent where reference points of the pieces are located. For example, such reference points can be at the heads of mechanical fasteners or at the starting point of the extrusion axis of reinforcement bars. A Qto_ElementComponentPatternQuantities should denote the count of pieces in the row or array and their spacing.

Remarks: This definition may not be instantiated.

Definition at line 66 of file Ifc4x3_RC1/IfcElementComponentAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_rc1::IfcElementComponent::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_rc1::IfcElement.

Reimplemented in OdIfc4x3_rc1::IfcBuildingElementPart, OdIfc4x3_rc1::IfcDiscreteAccessory, OdIfc4x3_rc1::IfcFastener, OdIfc4x3_rc1::IfcImpactProtectionDevice, OdIfc4x3_rc1::IfcMechanicalFastener, OdIfc4x3_rc1::IfcReinforcingBar, OdIfc4x3_rc1::IfcReinforcingElement, OdIfc4x3_rc1::IfcReinforcingMesh, OdIfc4x3_rc1::IfcSign, OdIfc4x3_rc1::IfcTendon, OdIfc4x3_rc1::IfcTendonAnchor, OdIfc4x3_rc1::IfcTendonConduit, OdIfc4x3_rc1::IfcVibrationDamper, and OdIfc4x3_rc1::IfcVibrationIsolator.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_rc1::IfcElementComponent::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_rc1::IfcElement.

Reimplemented in OdIfc4x3_rc1::IfcBuildingElementPart, OdIfc4x3_rc1::IfcDiscreteAccessory, OdIfc4x3_rc1::IfcFastener, OdIfc4x3_rc1::IfcImpactProtectionDevice, OdIfc4x3_rc1::IfcMechanicalFastener, OdIfc4x3_rc1::IfcReinforcingBar, OdIfc4x3_rc1::IfcReinforcingElement, OdIfc4x3_rc1::IfcReinforcingMesh, OdIfc4x3_rc1::IfcSign, OdIfc4x3_rc1::IfcTendon, OdIfc4x3_rc1::IfcTendonAnchor, OdIfc4x3_rc1::IfcTendonConduit, OdIfc4x3_rc1::IfcVibrationDamper, and OdIfc4x3_rc1::IfcVibrationIsolator.

◆ isKindOf()

virtual bool OdIfc4x3_rc1::IfcElementComponent::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcElement.

Reimplemented in OdIfc4x3_rc1::IfcBuildingElementPart, OdIfc4x3_rc1::IfcDiscreteAccessory, OdIfc4x3_rc1::IfcFastener, OdIfc4x3_rc1::IfcImpactProtectionDevice, OdIfc4x3_rc1::IfcMechanicalFastener, OdIfc4x3_rc1::IfcReinforcingBar, OdIfc4x3_rc1::IfcReinforcingElement, OdIfc4x3_rc1::IfcReinforcingMesh, OdIfc4x3_rc1::IfcSign, OdIfc4x3_rc1::IfcTendon, OdIfc4x3_rc1::IfcTendonAnchor, OdIfc4x3_rc1::IfcTendonConduit, OdIfc4x3_rc1::IfcVibrationDamper, and OdIfc4x3_rc1::IfcVibrationIsolator.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_rc1::IfcElementComponent::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_rc1::IfcElement.

Reimplemented in OdIfc4x3_rc1::IfcBuildingElementPart, OdIfc4x3_rc1::IfcDiscreteAccessory, OdIfc4x3_rc1::IfcFastener, OdIfc4x3_rc1::IfcImpactProtectionDevice, OdIfc4x3_rc1::IfcMechanicalFastener, OdIfc4x3_rc1::IfcReinforcingBar, OdIfc4x3_rc1::IfcReinforcingElement, OdIfc4x3_rc1::IfcReinforcingMesh, OdIfc4x3_rc1::IfcSign, OdIfc4x3_rc1::IfcTendon, OdIfc4x3_rc1::IfcTendonAnchor, OdIfc4x3_rc1::IfcTendonConduit, OdIfc4x3_rc1::IfcVibrationDamper, and OdIfc4x3_rc1::IfcVibrationIsolator.

The documentation for this class was generated from the following file:

Ifc4x3_RC1/IfcElementComponentAutoImpl.h
