#include <IfcDerivedProfileDefAutoImpl.h>

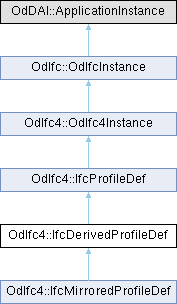

Inheritance diagram for OdIfc4::IfcDerivedProfileDef:

Public Member Functions
const OdDAIObjectId &	getParentProfile () const

void	setParentProfile (const OdDAIObjectId &ParentProfile)

const OdDAIObjectId &	getOperator () const

void	setOperator (const OdDAIObjectId &Operator)

const OdAnsiString &	getLabel () const

void	setLabel (const OdAnsiString &Label)

	IfcDerivedProfileDef ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcProfileDef
IfcProfileTypeEnum	getProfileType () const

void	setProfileType (IfcProfileTypeEnum ProfileType)

const OdAnsiString &	getProfileName () const

void	setProfileName (const OdAnsiString &ProfileName)

void	getInvHasExternalReference (OdDAIObjectIds &HasExternalReference) const

void	getInvHasProperties (OdDAIObjectIds &HasProperties) const

	IfcProfileDef ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_ParentProfile

OdDAIObjectId	m_Operator

OdAnsiString	m_Label

Protected Attributes inherited from OdIfc4::IfcProfileDef
OdDAI::Enum	m_ProfileType

OdAnsiString	m_ProfileName

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcDerivedProfileDef defines the profile by transformation from the parent profile. The transformation is specified by a two dimensional transformation operator. Transformation includes translation, rotation, mirror and scaling. The transformation can be uniform or non uniform. The derived profiles can be used to define swept surfaces, swept area solids or sectioned spines.

The transformation effects the position, rotation, mirroring or scale of the profile at the underlying coordinate system, i.e. the coordinate system defined by the swept surface or swept area solid that uses the profile definition. It is the xy plane of either: IfcSweptSurface.Position IfcSweptAreaSolid.Position

The IfcDerivedProfileDef is defined using the IfcCartesianTransformationOperator2D (CTO), which is applied to the parent profile definition. The example shows a uniform scaling and a transformation of an IfcRectangleProfileDef to match the lower-left cardinal point. The attributes of the CTO are:

Axis1 = NIL (defaults to 1.,0.)
Axis2 = NIL (defaults to 0.,1.)
LocalOrigin = IfcCartesianPoint(<1/2 XDim>,<1/2 YDim>)
Scale = 2.

Definition at line 64 of file Ifc4/IfcDerivedProfileDefAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcDerivedProfileDef()

OdIfc4::IfcDerivedProfileDef::IfcDerivedProfileDef ( )

Default constructor for the IfcDerivedProfileDef class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcDerivedProfileDef::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcProfileDef.

Reimplemented in OdIfc4::IfcMirroredProfileDef.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcDerivedProfileDef::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcProfileDef.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcDerivedProfileDef::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcProfileDef.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcDerivedProfileDef::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcProfileDef.

Reimplemented in OdIfc4::IfcMirroredProfileDef.

◆ getLabel()

const OdAnsiString & OdIfc4::IfcDerivedProfileDef::getLabel ( ) const

Returns the value of Label attribute. This attribute represents the name by which the transformation can be referred to. The actual meaning of the name has to be defined in the context of applications.

Returns: Returns the value of Label attribute.

◆ getOperator()

const OdDAIObjectId & OdIfc4::IfcDerivedProfileDef::getOperator ( ) const

Returns the value of Operator attribute. This attribute represents transformation operator that is applied to the parent profile.

Returns: Returns the value of Operator attribute.

◆ getParentProfile()

const OdDAIObjectId & OdIfc4::IfcDerivedProfileDef::getParentProfile ( ) const

Returns the value of ParentProfile attribute. This attribute represents the parent profile that provides the origin of the transformation.

Returns: Returns the value of ParentProfile attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcDerivedProfileDef::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcProfileDef.

◆ isKindOf()

virtual bool OdIfc4::IfcDerivedProfileDef::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcProfileDef.

Reimplemented in OdIfc4::IfcMirroredProfileDef.

◆ outFields()

virtual OdResult OdIfc4::IfcDerivedProfileDef::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcProfileDef.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcDerivedProfileDef::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcProfileDef.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcDerivedProfileDef::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcProfileDef.

◆ setLabel()

void OdIfc4::IfcDerivedProfileDef::setLabel ( const OdAnsiString & Label )

Sets the value of Label attribute. This attribute represents the name by which the transformation can be referred to. The actual meaning of the name has to be defined in the context of applications.

Parameters

Label [in] Label to set.

◆ setOperator()

void OdIfc4::IfcDerivedProfileDef::setOperator ( const OdDAIObjectId & Operator )

Sets the value of Operator attribute. This attribute represents transformation operator that is applied to the parent profile.

Parameters

Operator [in] Operator to set.

◆ setParentProfile()

void OdIfc4::IfcDerivedProfileDef::setParentProfile ( const OdDAIObjectId & ParentProfile )

Sets the value of ParentProfile attribute. This attribute represents the parent profile that provides the origin of the transformation.

Parameters

ParentProfile [in] Parent profile to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcDerivedProfileDef::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcProfileDef.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcDerivedProfileDef::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcProfileDef.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcDerivedProfileDef::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcProfileDef.

Reimplemented in OdIfc4::IfcMirroredProfileDef.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcDerivedProfileDef::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcProfileDef.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcDerivedProfileDef::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcProfileDef.

Member Data Documentation

◆ m_Label

OdAnsiString OdIfc4::IfcDerivedProfileDef::m_Label

protected

Definition at line 256 of file Ifc4/IfcDerivedProfileDefAutoImpl.h.

◆ m_Operator

OdDAIObjectId OdIfc4::IfcDerivedProfileDef::m_Operator

protected

Definition at line 255 of file Ifc4/IfcDerivedProfileDefAutoImpl.h.

◆ m_ParentProfile

OdDAIObjectId OdIfc4::IfcDerivedProfileDef::m_ParentProfile

protected

Definition at line 254 of file Ifc4/IfcDerivedProfileDefAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcDerivedProfileDefAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcDerivedProfileDef()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getLabel()

◆ getOperator()

◆ getParentProfile()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setLabel()

◆ setOperator()

◆ setParentProfile()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_Label

◆ m_Operator

◆ m_ParentProfile
