#include <IfcSurfaceOfRevolutionAutoImpl.h>

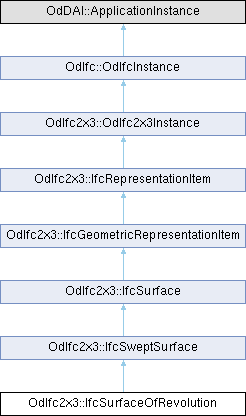

Inheritance diagram for OdIfc2x3::IfcSurfaceOfRevolution:

Public Member Functions
const OdDAIObjectId &	getAxisPosition () const

void	setAxisPosition (const OdDAIObjectId &AxisPosition)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcSweptSurface
const OdDAIObjectId &	getSweptCurve () const

void	setSweptCurve (const OdDAIObjectId &SweptCurve)

const OdDAIObjectId &	getPosition () const

void	setPosition (const OdDAIObjectId &Position)

Public Member Functions inherited from OdIfc2x3::IfcRepresentationItem
void	getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_AxisPosition

Protected Attributes inherited from OdIfc2x3::IfcSweptSurface
OdDAIObjectId	m_SweptCurve

OdDAIObjectId	m_Position

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcSurfaceOfRevolution is a surface derived by rotating a curve about an axis.

Details - The parameterization is as follows where the curve has a parameterization λ(u):
```
C = AxisPosition.Location
V = AxisPosition.Z
```

To produce a single-valued surface with a complete revolution, the curve is such that when expressed in a cylindrical coordinate system (r, φ ,z) centered at C with an axis V, no two distinct parametric points on the curve have the same values for (r, z). For a surface of revolution the parametric range is 0 < u < 360 degree. The parameterization range for v is defined by referenced curve.

Definition at line 56 of file Ifc2x3/IfcSurfaceOfRevolutionAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcSurfaceOfRevolution::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcSurfaceOfRevolution::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcSurfaceOfRevolution::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ getAxisPosition()

const OdDAIObjectId & OdIfc2x3::IfcSurfaceOfRevolution::getAxisPosition ( ) const

Returns the value of AxisPosition attribute. This attribute represents a point on the axis of revolution and the direction of the axis of revolution.

Returns: Returns the value of AxisPosition attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcSurfaceOfRevolution::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ inFields()

virtual OdResult OdIfc2x3::IfcSurfaceOfRevolution::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ isKindOf()

virtual bool OdIfc2x3::IfcSurfaceOfRevolution::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ outFields()

virtual OdResult OdIfc2x3::IfcSurfaceOfRevolution::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcSurfaceOfRevolution::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcSurfaceOfRevolution::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ setAxisPosition()

void OdIfc2x3::IfcSurfaceOfRevolution::setAxisPosition ( const OdDAIObjectId & AxisPosition )

Sets the value of AxisPosition attribute. This attribute represents a point on the axis of revolution and the direction of the axis of revolution.

Parameters

AxisPosition [in] Axis position to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcSurfaceOfRevolution::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcSurfaceOfRevolution::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcSurfaceOfRevolution::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcSurfaceOfRevolution::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcSweptSurface.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcSurfaceOfRevolution::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcSweptSurface.

Member Data Documentation

◆ m_AxisPosition

OdDAIObjectId OdIfc2x3::IfcSurfaceOfRevolution::m_AxisPosition

protected

Definition at line 209 of file Ifc2x3/IfcSurfaceOfRevolutionAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcSurfaceOfRevolutionAutoImpl.h
