#include <IfcStructuralLoadCaseAutoImpl.h>

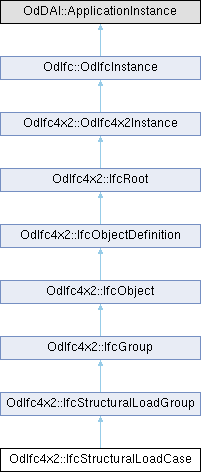

Inheritance diagram for OdIfc4x2::IfcStructuralLoadCase:

Public Member Functions
void	getSelfWeightCoefficients (OdArray< double > &SelfWeightCoefficients) const

OdDAI::ListOfDouble &	selfWeightCoefficients ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcStructuralLoadGroup
IfcLoadGroupTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcLoadGroupTypeEnum PredefinedType)

IfcActionTypeEnum	getActionType () const

void	setActionType (IfcActionTypeEnum ActionType)

IfcActionSourceTypeEnum	getActionSource () const

void	setActionSource (IfcActionSourceTypeEnum ActionSource)

double	getCoefficient () const

void	setCoefficient (double Coefficient)

const OdAnsiString &	getPurpose () const

void	setPurpose (const OdAnsiString &Purpose)

void	getInvSourceOfResultGroup (OdDAIObjectIds &SourceOfResultGroup) const

void	getInvLoadGroupFor (OdDAIObjectIds &LoadGroupFor) const

	IfcStructuralLoadGroup ()

Public Member Functions inherited from OdIfc4x2::IfcGroup
void	getInvIsGroupedBy (OdDAIObjectIds &IsGroupedBy) const

Public Member Functions inherited from OdIfc4x2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::ListOfDouble	m_SelfWeightCoefficients

Protected Attributes inherited from OdIfc4x2::IfcStructuralLoadGroup
OdDAI::Enum	m_PredefinedType

OdDAI::Enum	m_ActionType

OdDAI::Enum	m_ActionSource

double	m_Coefficient

OdAnsiString	m_Purpose

Protected Attributes inherited from OdIfc4x2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A load case is a load group, commonly used to group loads from the same action source.

Group Assignment - The Group Assignment concept template applies to this entity as shown in table below.

IsGrouped

RelatedObjects Description Structural actions for the load case.

Definition at line 47 of file Ifc4x2/IfcStructuralLoadCaseAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcStructuralLoadCase::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcStructuralLoadCase::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcStructuralLoadCase::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ getSelfWeightCoefficients()

void OdIfc4x2::IfcStructuralLoadCase::getSelfWeightCoefficients ( OdArray< double > & SelfWeightCoefficients ) const

Gets the value of SelfWeightCoefficients attribute. This attribute represents the self weight coefficients specify ratios at which loads due to weight of members shall be included in the load case. These loads are not explicitly modeled as instances of IfcStructuralAction. Instead they shall be calculated according to geometry, section, and material of each member. The three components of the self weight vector correspond with the x,y,z directions of the so-called global coordinates, i.e. the directions of the shared ObjectPlacement of all items in an IfcStructuralAnalysisModel. For example, if the object placement defines a z axis which is upright like the IfcProject's world coordinate system, then the self weight coefficients would typically be [0.,0.,-1.] in a load case of dead loads with self weight. The overall coefficient in the inherited attribute Coefficient shall not be applied to SelfWeightCoefficients of the same instance of IfcStructuralLoadCase. It only applies to actions and load groups which are grouped below the load case, not to the load case's computed self weight.

Parameters

SelfWeightCoefficients [out] Receives the SelfWeightCoefficients attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcStructuralLoadCase::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ isKindOf()

virtual bool OdIfc4x2::IfcStructuralLoadCase::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ outFields()

virtual OdResult OdIfc4x2::IfcStructuralLoadCase::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcStructuralLoadCase::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcStructuralLoadCase::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ selfWeightCoefficients()

OdDAI::ListOfDouble & OdIfc4x2::IfcStructuralLoadCase::selfWeightCoefficients ( )

Returns the value of SelfWeightCoefficients attribute. This attribute represents the self weight coefficients specify ratios at which loads due to weight of members shall be included in the load case. These loads are not explicitly modeled as instances of IfcStructuralAction. Instead they shall be calculated according to geometry, section, and material of each member. The three components of the self weight vector correspond with the x,y,z directions of the so-called global coordinates, i.e. the directions of the shared ObjectPlacement of all items in an IfcStructuralAnalysisModel. For example, if the object placement defines a z axis which is upright like the IfcProject's world coordinate system, then the self weight coefficients would typically be [0.,0.,-1.] in a load case of dead loads with self weight. The overall coefficient in the inherited attribute Coefficient shall not be applied to SelfWeightCoefficients of the same instance of IfcStructuralLoadCase. It only applies to actions and load groups which are grouped below the load case, not to the load case's computed self weight.

Returns: Returns the value of SelfWeightCoefficients attribute.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcStructuralLoadCase::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcStructuralLoadCase::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcStructuralLoadCase::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcStructuralLoadCase::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcStructuralLoadCase::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcStructuralLoadGroup.

Member Data Documentation

◆ m_SelfWeightCoefficients

OdDAI::ListOfDouble OdIfc4x2::IfcStructuralLoadCase::m_SelfWeightCoefficients

protected

Definition at line 203 of file Ifc4x2/IfcStructuralLoadCaseAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcStructuralLoadCaseAutoImpl.h
