#include <IfcSurfaceTextureAutoImpl.h>

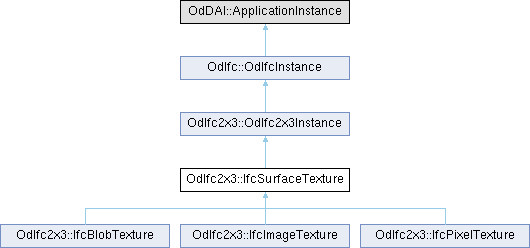

Inheritance diagram for OdIfc2x3::IfcSurfaceTexture:

Public Member Functions
OdDAI::Boolean	getRepeatS () const

void	setRepeatS (OdDAI::Boolean RepeatS)

OdDAI::Boolean	getRepeatT () const

void	setRepeatT (OdDAI::Boolean RepeatT)

IfcSurfaceTextureEnum	getTextureType () const

void	setTextureType (IfcSurfaceTextureEnum TextureType)

const OdDAIObjectId &	getTextureTransform () const

void	setTextureTransform (const OdDAIObjectId &TextureTransform)

	IfcSurfaceTexture ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Boolean	m_RepeatS

OdDAI::Boolean	m_RepeatT

OdDAI::Enum	m_TextureType

OdDAIObjectId	m_TextureTransform

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcSurfaceTexture provides a 2-dimensional image-based texture map. It can either be given by referencing an external image file through an URL reference (IfcImageTexture), including the image file as a blob (long binary) into the data set (IfcBlobTexture), or by explicitly including an array of pixels (IfcPixelTexture).

Details - Texture are defined by 2D images that contain an array of colour values describing the texture. The texture values are interpreted differently depending on the number of components in the texture and the specifics of the image format. In general, texture can be described using one of the following forms: Intensity textures (one-component) Intensity plus alpha opacity textures (two-component) Full RGB textures (three-component) Full RGB plus alpha opacity textures (four-component)

Texture maps are defined in a 2D coordinate system (s, t) that ranges from [0.0, 1.0] in both directions. The bottom edge of the image corresponds to the S-axis of the texture map, and left edge of the image corresponds to the T-axis of the texture map. The lower-left pixel of the image corresponds to s=0, t=0, and the top-right pixel of the image corresponds to s=1, t=1. Texture maps can be viewed as two dimensional colour functions that, given an (s, t) coordinate, return a colour value colour(s, t).

Remarks: Image formats specify an alpha opacity, not transparency (where alpha = 1 - transparency). This definition may not be instantiated.

Definition at line 68 of file Ifc2x3/IfcSurfaceTextureAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSurfaceTexture()

OdIfc2x3::IfcSurfaceTexture::IfcSurfaceTexture ( )

Default constructor for the IfcSurfaceTexture class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcSurfaceTexture::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcSurfaceTexture::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcSurfaceTexture::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcSurfaceTexture::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ getRepeatS()

OdDAI::Boolean OdIfc2x3::IfcSurfaceTexture::getRepeatS ( ) const

Returns the value of RepeatS attribute. RepeatS is the field that specifies how the texture wraps in the S direction. If RepeatS is TRUE (the default case), the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the S direction so that it fills the shape. If RepeatS is FALSE, the texture coordinates are clamped in the S direction to lie within the [0.0, 1.0] range.

Returns: Returns the value of RepeatS attribute.

◆ getRepeatT()

OdDAI::Boolean OdIfc2x3::IfcSurfaceTexture::getRepeatT ( ) const

Returns the value of RepeatT attribute. RepeatT is the field that specifies how the texture wraps in the T direction. If RepeatT is TRUE (the default), the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the T direction so that it fills the shape. If RepeatT is FALSE, the texture coordinates are clamped in the T direction to lie within the [0.0, 1.0] range.

Returns: Returns the value of RepeatT attribute.

◆ getTextureTransform()

const OdDAIObjectId & OdIfc2x3::IfcSurfaceTexture::getTextureTransform ( ) const

Returns the value of TextureTransform attribute. TextureTransform attribute defines a 2D transformation that is applied to the texture coordinates. It affects the way texture coordinates are applied to the surfaces of geometric representation items. The 2D transformation supports changes to the size, orientation, and position of textures on shapes. Mirroring is not allowed to be used in the IfcCartesianTransformationOperator.

Returns: Returns the value of TextureTransform attribute.

◆ getTextureType()

IfcSurfaceTextureEnum OdIfc2x3::IfcSurfaceTexture::getTextureType ( ) const

Returns the value of TextureType attribute. This attribute determines the purpose of texture usage.

Returns: Texture type.

◆ inFields()

virtual OdResult OdIfc2x3::IfcSurfaceTexture::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ isKindOf()

virtual bool OdIfc2x3::IfcSurfaceTexture::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ outFields()

virtual OdResult OdIfc2x3::IfcSurfaceTexture::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcSurfaceTexture::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcSurfaceTexture::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ setRepeatS()

void OdIfc2x3::IfcSurfaceTexture::setRepeatS ( OdDAI::Boolean RepeatS )

Sets the value of RepeatS attribute. RepeatS is the field that specifies how the texture wraps in the S direction. If RepeatS is TRUE (the default), the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the S direction so that it fills the shape. If RepeatS is FALSE, the texture coordinates are clamped in the S direction to lie within the [0.0, 1.0] range.

Parameters

RepeatS [in] RepeatS attribute to set.

◆ setRepeatT()

void OdIfc2x3::IfcSurfaceTexture::setRepeatT ( OdDAI::Boolean RepeatT )

Sets the value of RepeatT attribute. RepeatT is the field that specifies how the texture wraps in the T direction. If RepeatT is TRUE (the default), the texture map is repeated outside the [0.0, 1.0] texture coordinate range in the T direction so that it fills the shape. If RepeatT is FALSE, the texture coordinates are clamped in the T direction to lie within the [0.0, 1.0] range.

Parameters

RepeatT [in] RepeatT to set.

◆ setTextureTransform()

void OdIfc2x3::IfcSurfaceTexture::setTextureTransform ( const OdDAIObjectId & TextureTransform )

Sets the value of TextureTransform attribute. TextureTransform attribute defines a 2D transformation that is applied to the texture coordinates. It affects the way texture coordinates are applied to the surfaces of geometric representation items. The 2D transformation supports changes to the size, orientation, and position of textures on shapes. Mirroring is not allowed to be used in the IfcCartesianTransformationOperator.

Parameters

TextureTransform [in] TextureTransform to set.

◆ setTextureType()

void OdIfc2x3::IfcSurfaceTexture::setTextureType ( IfcSurfaceTextureEnum TextureType )

Sets the value of TextureType attribute. This attribute determines the purpose of texture usage.

Parameters

TextureType [in] Sets the texture type.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcSurfaceTexture::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcSurfaceTexture::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcSurfaceTexture::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x3::IfcBlobTexture, OdIfc2x3::IfcImageTexture, and OdIfc2x3::IfcPixelTexture.
