#include <IfcProjectOrderAutoImpl.h>

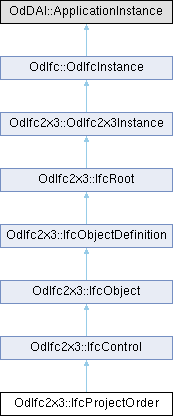

Inheritance diagram for OdIfc2x3::IfcProjectOrder:

Public Member Functions
const OdAnsiString &	getID () const

void	setID (const OdAnsiString &ID)

IfcProjectOrderTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcProjectOrderTypeEnum PredefinedType)

const OdAnsiString &	getStatus () const

void	setStatus (const OdAnsiString &Status)

	IfcProjectOrder ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcControl
void	getInvControls (OdDAIObjectIds &Controls) const

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_ID

OdDAI::Enum	m_PredefinedType

OdAnsiString	m_Status

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A project order is a directive to purchase products and/or perform work, such as for construction or facilities management.

Approval - Approvals can be associated to indicate the status of acceptance or rejection using the IfcRelAssociatesApproval relationship where RelatingApproval refers to an IfcApproval and RelatedObjects contains the IfcProjectOrder. Approvals can be split into sub-approvals using IfcApprovalRelationship to track approval status separately for each party where RelatingApproval refers to the higher-level approval and RelatedApprovals contains one or more lower-level approvals. The hierarchy of approvals implies sequencing such that a higher-level approval is not executed until all of its lower-level approvals have been accepted.
Property Sets for Objects - This concept can be applied to the following resources: Pset_ProjectOrderChangeOrder (only applies to CHANGEORDER) Pset_ProjectOrderMaintenanceWorkOrder (only applies to MAINTENANCEWORKORDER) Pset_ProjectOrderMoveOrder (only applies to MOVEORDER) Pset_ProjectOrderPurchaseOrder (only applies to PURCHASEORDER) Pset_ProjectOrderWorkOrder (only applies to WORKORDER)
Aggregation - The figure below shows the project order composition.

As shown on the figure, an IfcProjectOrder can be aggregated into components.

Nesting - The Object Nesting concept template applies to this entity as shown in table below:

Type

Description IfcProjectOrder Can contain subordinate orders, particularly change orders indicating contract amendment in order of issue.

Control Assignment - The figure below illustrates IfcProjectOrder assignment relationships as indicated: IfcActor (IfcRelAssignsToActor): Organization issuing the order such as an owner or contractor.

The IfcProjectOrder can have assignments of its own using the IfcRelAssignsToControl relationship where RelatingControl refers to the IfcProjectOrder and RelatedObjects contains one or more objects of the following types: IfcActor: Organization(s) contracted to fulfill the order, typically a single contractor, subcontractor, or supplier.

Definition at line 80 of file Ifc2x3/IfcProjectOrderAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcProjectOrder()

OdIfc2x3::IfcProjectOrder::IfcProjectOrder ( )

Default constructor for the IfcProjectOrder class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcProjectOrder::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcControl.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcProjectOrder::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcControl.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcProjectOrder::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcControl.

◆ getID()

const OdAnsiString & OdIfc2x3::IfcProjectOrder::getID ( ) const

Returns the value of ID attribute. This attribute represents an identifying designation given to a control. It is the identifier at the occurrence level.

Returns: Returns the value of ID attribute.

Remarks: IFC4 CHANGE: Attribute ID renamed to Identification and promoted to supertype IfcControl.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcProjectOrder::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcControl.

◆ getPredefinedType()

IfcProjectOrderTypeEnum OdIfc2x3::IfcProjectOrder::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents predefined generic type for a project order that is specified in an enumeration. There can be a property set given specifically for the predefined types.

Returns: Returns the value of PredefinedType attribute.

Remarks: IFC4 CHANGE: The attribute has been made optional.

◆ getStatus()

const OdAnsiString & OdIfc2x3::IfcProjectOrder::getStatus ( ) const

Returns the value of Status attribute. This attribute represents the current status of a project order. Examples of status values that might be used for a project order status include: PLANNED REQUESTED APPROVED ISSUED STARTED DELAYED DONE

Returns: Returns the value of Status attribute.

◆ inFields()

virtual OdResult OdIfc2x3::IfcProjectOrder::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcControl.

◆ isKindOf()

virtual bool OdIfc2x3::IfcProjectOrder::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcControl.

◆ outFields()

virtual OdResult OdIfc2x3::IfcProjectOrder::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcControl.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcProjectOrder::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcControl.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcProjectOrder::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcControl.

◆ setID()

void OdIfc2x3::IfcProjectOrder::setID ( const OdAnsiString & ID )

Sets the value of ID attribute. This attribute represents an identifying designation given to a control. It is the identifier at the occurrence level.

Parameters

ID	[in] Identification to set.

Remarks: IFC4 CHANGE: Attribute ID renamed to Identification and promoted to supertype IfcControl.

◆ setPredefinedType()

void OdIfc2x3::IfcProjectOrder::setPredefinedType ( IfcProjectOrderTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents predefined generic type for a project order that is specified in an enumeration. There can be a property set given specifically for the predefined types.IFC4 CHANGE The attribute has been made optional.

Parameters

PredefinedType [in] Predefined type to set.

Remarks: IFC4 CHANGE: The attribute has been made optional.

◆ setStatus()

void OdIfc2x3::IfcProjectOrder::setStatus ( const OdAnsiString & Status )

Sets the value of Status attribute. This attribute represents the current status of a project order. Examples of status values that might be used for a project order status include: PLANNED REQUESTED APPROVED ISSUED STARTED DELAYED DONE

Parameters

Status [in] Status to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcProjectOrder::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcControl.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcProjectOrder::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcControl.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcProjectOrder::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcControl.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcProjectOrder::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcControl.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcProjectOrder::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcControl.

Member Data Documentation

◆ m_ID

OdAnsiString OdIfc2x3::IfcProjectOrder::m_ID

protected

Definition at line 294 of file Ifc2x3/IfcProjectOrderAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc2x3::IfcProjectOrder::m_PredefinedType

protected

Definition at line 295 of file Ifc2x3/IfcProjectOrderAutoImpl.h.

◆ m_Status

OdAnsiString OdIfc2x3::IfcProjectOrder::m_Status

protected

Definition at line 296 of file Ifc2x3/IfcProjectOrderAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcProjectOrderAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcProjectOrder()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getID()

◆ getInstanceType()

◆ getPredefinedType()

◆ getStatus()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setID()

◆ setPredefinedType()

◆ setStatus()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_ID

◆ m_PredefinedType

◆ m_Status
