#include <IfcTaskAutoImpl.h>

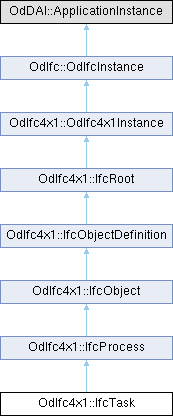

Inheritance diagram for OdIfc4x1::IfcTask:

Public Member Functions
const OdAnsiString &	getStatus () const

void	setStatus (const OdAnsiString &Status)

const OdAnsiString &	getWorkMethod () const

void	setWorkMethod (const OdAnsiString &WorkMethod)

OdDAI::Boolean	getIsMilestone () const

void	setIsMilestone (OdDAI::Boolean IsMilestone)

int	getPriority () const

void	setPriority (int Priority)

const OdDAIObjectId &	getTaskTime () const

void	setTaskTime (const OdDAIObjectId &TaskTime)

IfcTaskTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcTaskTypeEnum PredefinedType)

	IfcTask ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcProcess
const OdAnsiString &	getIdentification () const

void	setIdentification (const OdAnsiString &Identification)

const OdAnsiString &	getLongDescription () const

void	setLongDescription (const OdAnsiString &LongDescription)

void	getInvIsPredecessorTo (OdDAIObjectIds &IsPredecessorTo) const

void	getInvIsSuccessorFrom (OdDAIObjectIds &IsSuccessorFrom) const

void	getInvOperatesOn (OdDAIObjectIds &OperatesOn) const

	IfcProcess ()

Public Member Functions inherited from OdIfc4x1::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x1::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Status

OdAnsiString	m_WorkMethod

OdDAI::Boolean	m_IsMilestone

int	m_Priority

OdDAIObjectId	m_TaskTime

OdDAI::Enum	m_PredefinedType

Protected Attributes inherited from OdIfc4x1::IfcProcess
OdAnsiString	m_Identification

OdAnsiString	m_LongDescription

Protected Attributes inherited from OdIfc4x1::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcTask is an identifiable unit of work to be carried out in a construction project. A task is typically used to describe an activity for the construction or installation of products, but is not limited to these types. For example, it might be used to describe design processes, move operations and other design, construction and operation related activities as well. Quantities of resources consumed by the task are dealt with by defining the IfcElementQuantity for the resource and not at the instance of IfcTask.

Attribute Use Definition - Each occurrence of IfcTask is given a name that is indicative of its content (IfcRoot.Name). A textual description of the task can be provided and this can be further elaborated by a narrative long description (IfcProcess.LongDescription). A work method can be declared for the method of work used in carrying out a task. A task is identified as being either a milestone task or not. A milestone task is defined by the marker IsMilestone and has no duration. A status and priority for each task can also be set.
Time and Duration Use Definition - Compared to releases before IFC4, basic task time information (scheduled start time, scheduled finish time, duration) is now directly attached to IfcTask through the TaskTime attribute. Regular tasks are defined through IfcTaskTime. Recurring tasks are defined through IfcTaskTimeRecurring. In case a regular task is derived from a recurring task both tasks should be linked together through a IfcRelNests relationship, where IfcRelNests.IsNestedBy points to the recurring task and IfcRelNests.Nests points to all regular tasks that have been derived from the recurring task.
Representation of Other Activities - The use definitions for IfcTask have been generalized to represent other activities as well, including activities that had been defined by own entities in previous IFC releases. This includes: Order actions Move operations

IfcTask can also be used to describe an activity that moves people, groups within an organization or complete organizations together with their associated furniture and equipment from one place to another. Thus, it replaces the previous IFC entity IfcMove. The functionality is represented in IfcTask as follows: Move from: The place from which actors and their associated equipment are moving. Use IfcRelAssignsToProcess where RelatingProcess points to the task and RelatedObjects holds the location(s) from which to move. Move to: The place to which actors and their associated equipment are moving. Use IfcRelAssignsToProduct where RelatedObjects points to the task(s) and RelatingProduct points to the location to which to move. Punch list: A list of points concerning a move that require attention. Use LongDescription or identify sub-tasks to track punch list items individually via IfcRelNests.

Object Typing - The IfcTask defines the expected or actual occurrence of any task. Common information about task types is handled by IfcTaskType. EXAMPLE: It includes fixed duration, fixed unit or fixed work. An IfcTask can be aggregated to a task type in order to specify a task sequence or any time-related information, e.g. the duration of a task.
Property Sets - This concept can be applied to the following resources: Pset_PackingInstructions (only applies to MOVE)
Nesting - IfcTask can be contained within an IfcTask using the IfcRelNests relationship. An IfcTask can in turn nest other IfcTask, IfcProcedure or IfcEvent entities. Such nesting indicates decomposed level of detail. From IFC4 onwards it is required to have a summary task (root of all tasks), which is used to define a link to the work plan or work schedule. All subtasks of the summary tasks are then implicitly linked to this work plan or work schedule.

As shown on the image below, the installation of a number of items of equipment within a particular space can be the subject of a single task which is identified as 'fix equipment in space 123'. IfcTask represents the occurrence of a work performance of a type of process in a construction plan.

A task can nest other tasks as sub-items; the nesting relationship is modeled by IfcRelNests as shown on the image below. For example, the construction of a stud wall can be designated as a nesting task named 'install wall #1' including other tasks such as 'install dry wall', 'install studs', 'wall taping', and 'erect wall' as sub-processes.

The hierarchy and order defined through IfcRelNests enables to order the tasks in a tree view or list view structure.

A top-level task is declared within the IfcProject using the IfcRelDeclares relationship.

Sequential Connectivity - The relationship IfcRelSequence is used to indicate control flow. An IfcTask as a successor to an IfcTask indicates logical sequence how these tasks should be performed. IfcTask's can be triggered or can trigger IfcEvent's, which is also defined through the IfcRelSequence relationship.
Control Assignment - Occurrences of IfcTask can be assigned to an IfcWorkControl (either a work plan or a work schedule) through IfcRelAssignsToControl. Note that the IfcRelAssignsTasks relationship class has been removed in IFC4 and is no longer available.
Process Assignment - It is suggested to use the 'summary task' (root element of the task hierarchy that is required for task management purposes) to assign all subtask to a work plan or work schedule. Resources used by tasks are assigned by IfcRelAssignsToProcess.
Classification - An IfcTask can be assigned a Work Breakdown Structure (WBS) code. A WBS code is dealt with as a classification of task and is associated to a task occurrence using the IfcRelAssociatesClassification relationship class. As well as being to designate the code, the classification structure also enables the source of the work breakdown structure classification to be identified.
Constraint - Constraints can be applied to a task to indicate fixed task duration, fixed start or fixed finish, where IfcMetric.ReferencePath is set to the corresponding attribute on the IfcTaskTime entity.

\changes

IFC4 changes: Name of the IsMilestone attribute changed to Priority. Attribute IsMilestone is optional. Type of the IsMilestone attribute changed from "boolean" to "IfcInteger". Name of the Priority attribute changed to TaskTime. Type of the Priority attribute changed from "integer" to "IfcTaskTime".

Definition at line 132 of file Ifc4x1/IfcTaskAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcTask()

OdIfc4x1::IfcTask::IfcTask ( )

Default constructor for the IfcTask class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcTask::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcProcess.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcTask::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcProcess.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcTask::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcProcess.

◆ getIsMilestone()

OdDAI::Boolean OdIfc4x1::IfcTask::getIsMilestone ( ) const

Returns the value of IsMilestone attribute. This attribute represents whether a task is a milestone task (=TRUE) or not(= FALSE).

Returns: Returns the value of IsMilestone attribute.

Remarks: In small project planning applications, a milestone task can be understood to be a task having no duration. As such, it represents a singular point in time.

◆ getPredefinedType()

IfcTaskTypeEnum OdIfc4x1::IfcTask::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents the predefined types of a task from which the required type can be set.

Returns: Returns the value of PredefinedType attribute.

◆ getPriority()

int OdIfc4x1::IfcTask::getPriority ( ) const

Returns the value of Priority attribute. This attribute represents a value that indicates the relative priority of the task (in comparison to the priorities of other tasks).

Returns: Returns the value of Priority attribute.

◆ getStatus()

const OdAnsiString & OdIfc4x1::IfcTask::getStatus ( ) const

Returns the value of Status attribute. This attribute represents current status of the task.

Returns: Returns the value of Status attribute.

Remarks: Particular values for status are not specified, these should be determined and agreed by local usage. Examples of possible status values include 'Not Yet Started', 'Started', 'Completed'.

◆ getTaskTime()

const OdDAIObjectId & OdIfc4x1::IfcTask::getTaskTime ( ) const

Returns the value of TaskTime attribute. This attribute represents time related information for the task.

Returns: Returns the value of TaskTime attribute.

◆ getWorkMethod()

const OdAnsiString & OdIfc4x1::IfcTask::getWorkMethod ( ) const

Returns the value of WorkMethod attribute. This attribute represents the method of work used in carrying out a task.

Returns: Returns the value of WorkMethod attribute.

Remarks: This attribute should not be used if the work method is specified for the IfcTaskType.

◆ inFields()

virtual OdResult OdIfc4x1::IfcTask::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcProcess.

◆ isKindOf()

virtual bool OdIfc4x1::IfcTask::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcProcess.

◆ outFields()

virtual OdResult OdIfc4x1::IfcTask::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcProcess.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcTask::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcProcess.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcTask::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcProcess.

◆ setIsMilestone()

void OdIfc4x1::IfcTask::setIsMilestone ( OdDAI::Boolean IsMilestone )

Sets the value of IsMilestone attribute. This attribute represents whether a task is a milestone task (=TRUE) or not(= FALSE).

Parameters

IsMilestone [in] IsMilestone attribute to set.

Remarks: In small project planning applications, a milestone task can be understood to be a task having no duration. As such, it represents a singular point in time.

◆ setPredefinedType()

void OdIfc4x1::IfcTask::setPredefinedType ( IfcTaskTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents the predefined types of a task from which the required type can be set.

Parameters

PredefinedType [in] Predefined type to set.

◆ setPriority()

void OdIfc4x1::IfcTask::setPriority ( int Priority )

Sets the value of Priority attribute. This attribute represents a value that indicates the relative priority of the task (in comparison to the priorities of other tasks).

Parameters

Priority [in] Priority to set.

◆ setStatus()

void OdIfc4x1::IfcTask::setStatus ( const OdAnsiString & Status )

Sets the value of Status attribute. This attribute represents current status of the task.

Parameters

Status [in] Status to set.

Remarks: Particular values for status are not specified, these should be determined and agreed by local usage. Examples of possible status values include 'Not Yet Started', 'Started', 'Completed'.

◆ setTaskTime()

void OdIfc4x1::IfcTask::setTaskTime ( const OdDAIObjectId & TaskTime )

Sets the value of TaskTime attribute. This attribute represents time related information for the task.

Parameters

TaskTime [in] Task time to set.

◆ setWorkMethod()

void OdIfc4x1::IfcTask::setWorkMethod ( const OdAnsiString & WorkMethod )

Sets the value of WorkMethod attribute. This attribute represents the method of work used in carrying out a task.

Parameters

WorkMethod [in] Work method to set.

Remarks: This attribute should not be used if the work method is specified for the IfcTaskType.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcTask::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcProcess.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcTask::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcProcess.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcTask::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcProcess.

◆ unsetAttr() [1/2]

virtual void OdIfc4x1::IfcTask::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x1::IfcProcess.

◆ unsetAttr() [2/2]

virtual void OdIfc4x1::IfcTask::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x1::IfcProcess.

Member Data Documentation

◆ m_IsMilestone

OdDAI::Boolean OdIfc4x1::IfcTask::m_IsMilestone

protected

Definition at line 362 of file Ifc4x1/IfcTaskAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc4x1::IfcTask::m_PredefinedType

protected

Definition at line 365 of file Ifc4x1/IfcTaskAutoImpl.h.

◆ m_Priority

int OdIfc4x1::IfcTask::m_Priority

protected

Definition at line 363 of file Ifc4x1/IfcTaskAutoImpl.h.

◆ m_Status

OdAnsiString OdIfc4x1::IfcTask::m_Status

protected

Definition at line 360 of file Ifc4x1/IfcTaskAutoImpl.h.

◆ m_TaskTime

OdDAIObjectId OdIfc4x1::IfcTask::m_TaskTime

protected

Definition at line 364 of file Ifc4x1/IfcTaskAutoImpl.h.

◆ m_WorkMethod

OdAnsiString OdIfc4x1::IfcTask::m_WorkMethod

protected

Definition at line 361 of file Ifc4x1/IfcTaskAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x1/IfcTaskAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcTask()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getIsMilestone()

◆ getPredefinedType()

◆ getPriority()

◆ getStatus()

◆ getTaskTime()

◆ getWorkMethod()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setIsMilestone()

◆ setPredefinedType()

◆ setPriority()

◆ setStatus()

◆ setTaskTime()

◆ setWorkMethod()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_IsMilestone

◆ m_PredefinedType

◆ m_Priority

◆ m_Status

◆ m_TaskTime

◆ m_WorkMethod
