#include <IfcConnectionPointGeometryAutoImpl.h>

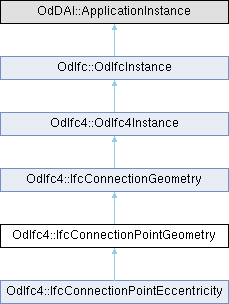

Inheritance diagram for OdIfc4::IfcConnectionPointGeometry:

Public Member Functions
IfcPointOrVertexPoint	pointOnRelatingElement ()

IfcPointOrVertexPoint	pointOnRelatedElement ()

	IfcConnectionPointGeometry ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Select	m_PointOnRelatingElement

OdDAI::Select	m_PointOnRelatedElement

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcConnectionPointGeometry describes the geometric constraints that facilitate the physical connection of two objects at a point (here IfcCartesianPoint) or at an vertex with point coordinates associated. It can be referred to as a control that applies to the element connection relationships.

The IfcPoint (or the IfcVertexPoint with an associated IfcPoint) at the PointOnRelatingElement attribute defines the point where the basic geometry items of the connected elements connect. The point coordinates are provided within the local coordinate system of the RelatingElement, as specified at the IfcRelConnects subtype that utilizes the IfcConnectionPointGeometry. The same point coordinates can also be provided within the local coordinate system of the RelatedElement by using the PointOnRelatedElement attribute. If both point coordinates are not identical within a common parent coordinate system (within the world coordinate system), the IfcConnectionPointEccentricity subtype is used.

Definition at line 50 of file Ifc4/IfcConnectionPointGeometryAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcConnectionPointGeometry()

OdIfc4::IfcConnectionPointGeometry::IfcConnectionPointGeometry ( )

Default constructor for the IfcConnectionPointGeometry class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcConnectionPointGeometry::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcConnectionGeometry.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcConnectionPointGeometry::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcConnectionPointGeometry::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcConnectionPointGeometry::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcConnectionGeometry.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ inFields()

virtual OdResult OdIfc4::IfcConnectionPointGeometry::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ isKindOf()

virtual bool OdIfc4::IfcConnectionPointGeometry::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcConnectionGeometry.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ outFields()

virtual OdResult OdIfc4::IfcConnectionPointGeometry::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ pointOnRelatedElement()

IfcPointOrVertexPoint OdIfc4::IfcConnectionPointGeometry::pointOnRelatedElement ( )

Returns the value of PointOnRelatedElement attribute. This attribute represents point at which connected objects are aligned at the related element, specified in the LCS of the related element. If the information is omitted, then the origin of the related element is used.

Returns: Returns the value of PointOnRelatedElement attribute.

◆ pointOnRelatingElement()

IfcPointOrVertexPoint OdIfc4::IfcConnectionPointGeometry::pointOnRelatingElement ( )

Returns the value of PointOnRelatingElement attribute. This attribute represents point at which the connected object is aligned at the relating element, specified in the LCS of the relating element.

Returns: Returns the value of PointOnRelatingElement attribute.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcConnectionPointGeometry::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcConnectionPointGeometry::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcConnectionPointGeometry::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcConnectionPointGeometry::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcConnectionPointGeometry::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcConnectionGeometry.

Reimplemented in OdIfc4::IfcConnectionPointEccentricity.
