OdGeEntity3d Class Reference

#include <GeEntity3d.h>

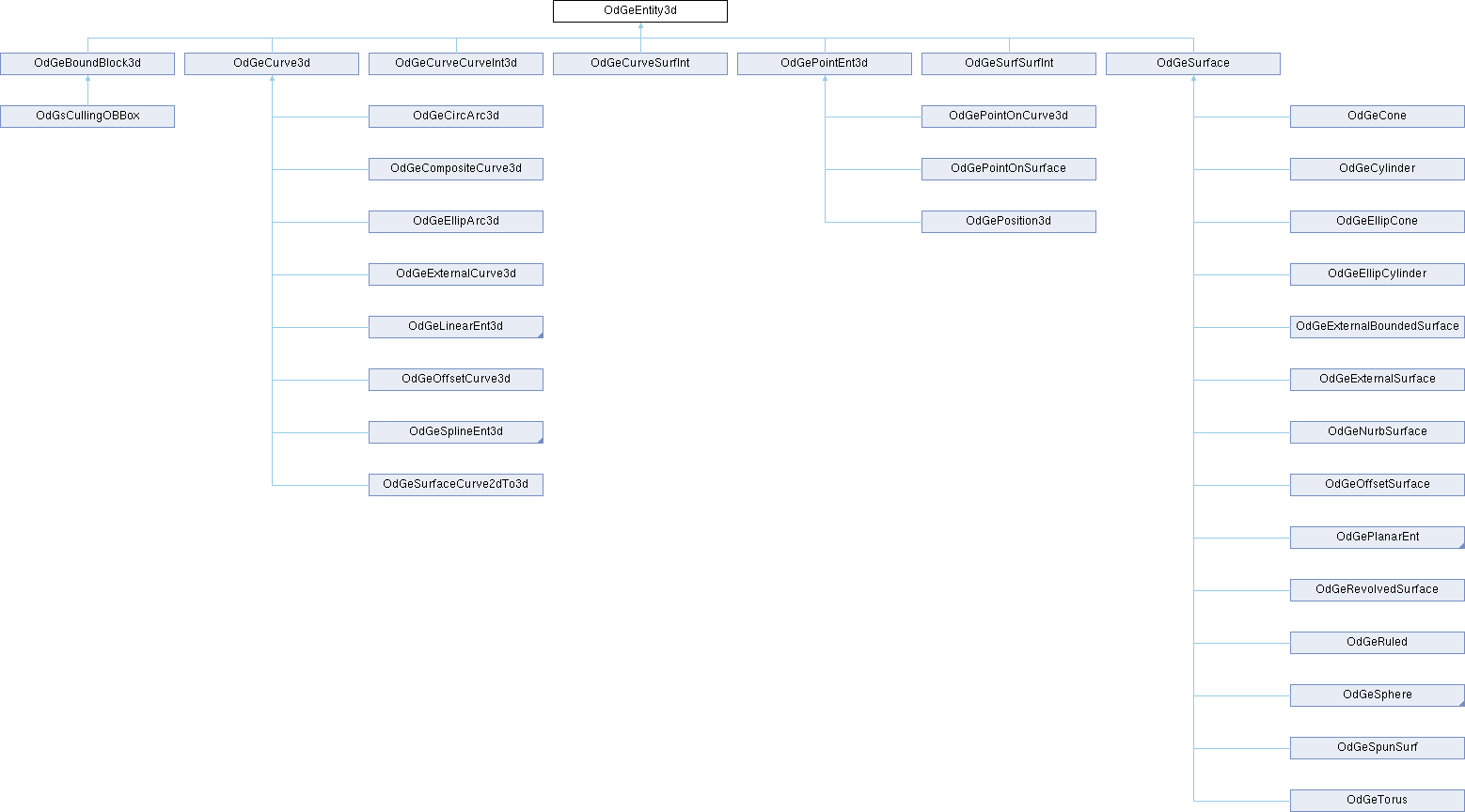

Inheritance diagram for OdGeEntity3d:

Public Member Functions
	ODRX_HEAP_OPERATORS ()
	~OdGeEntity3d ()
bool	isKindOf (OdGe::EntityId entType) const
OdGe::EntityId	type () const
OdGeEntity3d *	copy () const
OdGeEntity3d &	operator= (const OdGeEntity3d &entity)
bool	operator== (const OdGeEntity3d &entity) const
bool	operator!= (const OdGeEntity3d &entity) const
bool	isEqualTo (const OdGeEntity3d &object, const OdGeTol &tol=OdGeContext::gTol) const
OdGeEntity3d &	transformBy (const OdGeMatrix3d &xfm)
OdGeEntity3d &	translateBy (const OdGeVector3d &translateVec)
OdGeEntity3d &	rotateBy (double angle, const OdGeVector3d &vect, const OdGePoint3d &basePoint=OdGePoint3d::kOrigin)
OdGeEntity3d &	mirror (const OdGePlane &plane)
OdGeEntity3d &	scaleBy (double scaleFactor, const OdGePoint3d &basePoint=OdGePoint3d::kOrigin)
bool	isOn (const OdGePoint3d &point, const OdGeTol &tol=OdGeContext::gTol) const

Protected Member Functions
	OdGeEntity3d ()
	OdGeEntity3d (const OdGeEntity3d &)
void	connectTo (OdGeEntity3dImpl *)

Friends
class	OdGeEntity3dImpl

Detailed Description

This class is the base class for all OdGe 3D geometric operations.

Corresponding C++ library: TD_Ge

<group OdGe_Classes>

Definition at line 45 of file GeEntity3d.h.

Constructor & Destructor Documentation

~OdGeEntity3d()

OdGeEntity3d::~OdGeEntity3d

(

)

Destructor for the OdGeEntity3d class.

OdGeEntity3d() [1/2]

OdGeEntity3d::OdGeEntity3d ( )

protected

OdGeEntity3d() [2/2]

OdGeEntity3d::OdGeEntity3d ( const OdGeEntity3d & )

protected

Member Function Documentation

connectTo()

void OdGeEntity3d::connectTo ( OdGeEntity3dImpl * )

protected

copy()

OdGeEntity3d * OdGeEntity3d::copy

(

)

const

Returns a copy of this entity.

Remarks

The returned object is created with the new operator, and it is the responsibility of the caller to delete it.

isEqualTo()

bool OdGeEntity3d::isEqualTo	(	const OdGeEntity3d &	object,
		const OdGeTol &	tol = OdGeContext::gTol ) const

Checks whether the specified entity is equal to this one.

Parameters

object	[in] Entity to be compared
tol	[in] Geometric tolerance.

Returns

true if and only if both entities are of the same type, have the same point set within the specified tolerance, and have the same parameterization.

isKindOf()

bool OdGeEntity3d::isKindOf

(

OdGe::EntityId

entType

)

const

Returns true if and only if this entity is of type (or is derived from) entType.

Parameters

entType

[in] Entity type to test.

isOn()

bool OdGeEntity3d::isOn	(	const OdGePoint3d &	point,
		const OdGeTol &	tol = OdGeContext::gTol ) const

Returns true if and only if the specified point is on this entity, as determined by the tolerance.

Parameters

point	[in] Point to be queried.
tol	[in] Geometric tolerance.

mirror()

OdGeEntity3d & OdGeEntity3d::mirror

(

const OdGePlane &

plane

)

Mirrors this entity about the specified plane, and returns a reference to this entity.

Parameters

plane

[in] Plane about which entity is to be mirrored.

ODRX_HEAP_OPERATORS()

OdGeEntity3d::ODRX_HEAP_OPERATORS

(

)

operator!=()

bool OdGeEntity3d::operator!=

(

const OdGeEntity3d &

entity

)

const

Comparison operator for the OdGeEntity3d object.

Parameters

entity

[in] Other entity to compare.

Returns

A boolean value that indicates whether the input entity is not identical to this entity.

operator=()

OdGeEntity3d & OdGeEntity3d::operator=

(

const OdGeEntity3d &

entity

)

Assignment operator for the OdGeEntity3d object.

Parameters

entity

[in] Entity to assign.

Returns

A reference to this OdGeEntity3d object.

operator==()

bool OdGeEntity3d::operator==

(

const OdGeEntity3d &

entity

)

const

Comparison operator for the OdGeEntity3d object.

Parameters

entity

[in] Other entity to compare.

Returns

A boolean value that indicates whether the input entity is identical to this entity.

rotateBy()

OdGeEntity3d & OdGeEntity3d::rotateBy	(	double	angle,
		const OdGeVector3d &	vect,
		const OdGePoint3d &	basePoint = OdGePoint3d::kOrigin )

Rotates this entity by the specified angle about the axis defined by the point and the vector, and returns a reference to this entity.

Parameters

angle	[in] Rotation angle.
vect	[in] Vector about which entitiy is rotated.
basePoint	[in] Basepoint.

scaleBy()

OdGeEntity3d & OdGeEntity3d::scaleBy	(	double	scaleFactor,
		const OdGePoint3d &	basePoint = OdGePoint3d::kOrigin )

Scales this entity by the scale factor about the basepoint, and returns a reference to this entity.

Parameters

scaleFactor	[in] Scale Factor. Must be greater than 0.
basePoint	[in] Basepoint.

transformBy()

OdGeEntity3d & OdGeEntity3d::transformBy

(

const OdGeMatrix3d &

xfm

)

Applies the 3D transformation matrix to this entity, and returns a reference to this entity.

Parameters

xfm	[in] 3D transformation matrix.

translateBy()

OdGeEntity3d & OdGeEntity3d::translateBy

(

const OdGeVector3d &

translateVec

)

Applies the 3D translation vector to this entity, and returns a reference to this entity.

Parameters

translateVec

[in] Translation Vector.

type()

OdGe::EntityId OdGeEntity3d::type

(

)

const

Returns the entity type.

Friends And Related Symbol Documentation

OdGeEntity3dImpl

friend class OdGeEntity3dImpl

friend

Definition at line 199 of file GeEntity3d.h.

---

The documentation for this class was generated from the following file:

• GeEntity3d.h
