#include <IfcSensorAutoImpl.h>

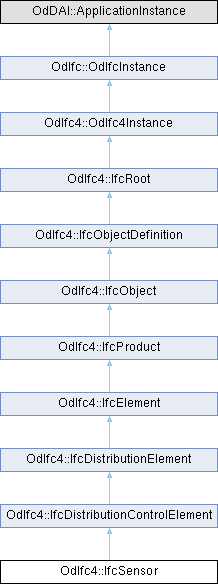

Inheritance diagram for OdIfc4::IfcSensor:

Public Member Functions
IfcSensorTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcSensorTypeEnum PredefinedType)

	IfcSensor ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcDistributionControlElement
void	getInvAssignedToFlowElement (OdDAIObjectIds &AssignedToFlowElement) const

Public Member Functions inherited from OdIfc4::IfcDistributionElement
void	getInvHasPorts (OdDAIObjectIds &HasPorts) const

Public Member Functions inherited from OdIfc4::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

	IfcElement ()

Public Member Functions inherited from OdIfc4::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PredefinedType

Protected Attributes inherited from OdIfc4::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A sensor is a device that measures a physical quantity and converts it into a signal which can be read by an observer or by an instrument.

Control Flow - This concept can be applied to the following resources: IfcDistributionFlowElement - Sensors can be connected to a flow element for which an aspect of the fluid or flow is measured.
Material Set - This concept can be applied to the following resources: Casing - Material from which the casing is constructed.
Object Typing - This concept can be applied to the following resources: IfcSensorType
Port Nesting - This concept can be applied with the following combinations:

PortName

Flow PredefinedType Output SOURCE SIGNAL

Property Sets for Objects - This concept can be applied to the following resources: Pset_SensorTypeCommon Pset_SensorTypeLevelSensor (only applies to LEVELSENSOR) Pset_SensorTypeCO2Sensor (only applies to CO2SENSOR) Pset_SensorTypeConductanceSensor (only applies to CONDUCTANCESENSOR) Pset_SensorTypeContactSensor (only applies to CONTACTSENSOR) Pset_SensorTypeEarthquakeSensor (only applies to EARTHQUAKESENSOR) Pset_SensorTypeFireSensor (only applies to FIRESENSOR) Pset_SensorTypeFlowSensor (only applies to FLOWSENSOR) Pset_SensorTypeForeignObjectDetectionSensor (only applies to FOREIGNOBJECTDETECTIONSENSOR) Pset_SensorTypeFrostSensor (only applies to FROSTSENSOR) Pset_SensorTypeGasSensor (only applies to GASSENSOR) Pset_SensorTypeHeatSensor (only applies to HEATSENSOR) Pset_SensorTypeHumiditySensor (only applies to HUMIDITYSENSOR) Pset_SensorTypeIdentifierSensor (only applies to IDENTIFIERSENSOR) Pset_SensorTypeIonConcentrationSensor (only applies to IONCONCENTRATIONSENSOR) Pset_SensorTypeLightSensor (only applies to LIGHTSENSOR) Pset_SensorTypeMoistureSensor (only applies to MOISTURESENSOR) Pset_SensorTypeMovementSensor (only applies to MOVEMENTSENSOR) Pset_SensorTypePHSensor (only applies to PHSENSOR) Pset_SensorTypePressureSensor (only applies to PRESSURESENSOR) Pset_SensorTypeRadiationSensor (only applies to RADIATIONSENSOR) Pset_SensorTypeRadioactivitySensor (only applies to RADIOACTIVITYSENSOR) Pset_SensorTypeRainSensor (only applies to RAINSENSOR) Pset_SensorTypeSmokeSensor (only applies to SMOKESENSOR) Pset_SensorTypeSnowSensor (only applies to SNOWDEPTHSENSOR) Pset_SensorTypeSoundSensor (only applies to SOUNDSENSOR) Pset_SensorTypeTemperatureSensor (only applies to TEMPERATURESENSOR) Pset_SensorTypeTurnoutClosureSensor (only applies to TURNOUTCLOSURESENSOR) Pset_AxleCountingEquipment (only applies to WHEELSENSOR) Pset_SensorTypeWindSensor (only applies to WINDSENSOR)
Property Sets for Performance - This concept can be applied to the following resources: Pset_SensorPHistory
Quantity Sets - This concept can be applied to the following resources: Qto_SensorBaseQuantities

Definition at line 101 of file Ifc4/IfcSensorAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSensor()

OdIfc4::IfcSensor::IfcSensor ( )

Default constructor for the IfcSensor class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcSensor::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcSensor::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcSensor::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcSensor::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ getPredefinedType()

IfcSensorTypeEnum OdIfc4::IfcSensor::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents types to further identify the object. Some property sets can be specifically applicable to one of these types.

Returns: Returns the value of PredefinedType attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcSensor::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ isKindOf()

virtual bool OdIfc4::IfcSensor::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ outFields()

virtual OdResult OdIfc4::IfcSensor::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcSensor::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcSensor::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ setPredefinedType()

void OdIfc4::IfcSensor::setPredefinedType ( IfcSensorTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents types to further identify the object. Some property sets can be specifically applicable to one of these types.

Parameters

PredefinedType [in] Predefined type to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcSensor::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcSensor::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcSensor::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcSensor::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcDistributionControlElement.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcSensor::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcDistributionControlElement.

Member Data Documentation

◆ m_PredefinedType

OdDAI::Enum OdIfc4::IfcSensor::m_PredefinedType

protected

Definition at line 261 of file Ifc4/IfcSensorAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcSensorAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcSensor()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getPredefinedType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setPredefinedType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_PredefinedType
