#include <IfcWindowPanelPropertiesAutoImpl.h>

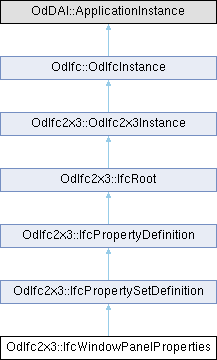

Inheritance diagram for OdIfc2x3::IfcWindowPanelProperties:

Public Member Functions
IfcWindowPanelOperationEnum	getOperationType () const

void	setOperationType (IfcWindowPanelOperationEnum OperationType)

IfcWindowPanelPositionEnum	getPanelPosition () const

void	setPanelPosition (IfcWindowPanelPositionEnum PanelPosition)

double	getFrameDepth () const

void	setFrameDepth (double FrameDepth)

double	getFrameThickness () const

void	setFrameThickness (double FrameThickness)

const OdDAIObjectId &	getShapeAspectStyle () const

void	setShapeAspectStyle (const OdDAIObjectId &ShapeAspectStyle)

	IfcWindowPanelProperties ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcPropertySetDefinition
void	getInvPropertyDefinitionOf (OdDAIObjectIds &PropertyDefinitionOf) const

void	getInvDefinesType (OdDAIObjectIds &DefinesType) const

Public Member Functions inherited from OdIfc2x3::IfcPropertyDefinition
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_OperationType

OdDAI::Enum	m_PanelPosition

IfcPositiveLengthMeasure	m_FrameDepth

IfcPositiveLengthMeasure	m_FrameThickness

OdDAIObjectId	m_ShapeAspectStyle

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A window panel is a casement, that is, a component, fixed or opening, consisting essentially of a frame and the infilling. The infilling of a window panel is normally glazing. The way of operation is defined in the operation type.

Details - The IfcWindowPanelProperties are used to parametrically describe the shape and operation of window panels. The parametric definition can be added solely or additionally to the explicit shape representation of the window.

The IfcWindowType can define windows consisting of more then one panel. In this case, one instance of IfcWindowPanelProperties has to be included for each window panel. The PanelPosition attribute, in conjunction with the IfcWindowType.OperationType attribute, determines to which panel the _IfcWindowPanelProperties_apply. The IfcWindowPanelProperties are included in the list of properties (HasPropertySets) of the IfcWindowStyle. More information about the window panel can be included in the same list of the IfcWindowType using the IfcPropertySet for dynamic extensions. The image below shows the panel that is applied to the position within the lining as defined by the panel position attribute.

Definition at line 54 of file Ifc2x3/IfcWindowPanelPropertiesAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcWindowPanelProperties()

OdIfc2x3::IfcWindowPanelProperties::IfcWindowPanelProperties ( )

Default constructor for the IfcWindowPanelProperties class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcWindowPanelProperties::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcWindowPanelProperties::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcWindowPanelProperties::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ getFrameDepth()

double OdIfc2x3::IfcWindowPanelProperties::getFrameDepth ( ) const

Returns the value of FrameDepth attribute. This attribute represents depth of panel frame, measured from front face to back face horizontally (i.e. perpendicular to the window (elevation) plane.

Returns: Returns the value of FrameDepth attribute.

◆ getFrameThickness()

double OdIfc2x3::IfcWindowPanelProperties::getFrameThickness ( ) const

Returns the value of FrameThickness attribute. This attribute represents width of panel frame, measured from inside of panel (at glazing) to outside of panel (at lining), i.e. parallel to the window (elevation) plane.

Returns: Returns the value of FrameThickness attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcWindowPanelProperties::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ getOperationType()

IfcWindowPanelOperationEnum OdIfc2x3::IfcWindowPanelProperties::getOperationType ( ) const

Returns the value of OperationType attribute. This attribute represents types of window panel operations. Also used to assign standard symbolic presentations according to national building standards.

Returns: Returns the value of OperationType attribute.

◆ getPanelPosition()

IfcWindowPanelPositionEnum OdIfc2x3::IfcWindowPanelProperties::getPanelPosition ( ) const

Returns the value of PanelPosition attribute. This attribute represents position of this panel within the overall window style.

Returns: Returns the value of PanelPosition attribute.

◆ getShapeAspectStyle()

const OdDAIObjectId & OdIfc2x3::IfcWindowPanelProperties::getShapeAspectStyle ( ) const

Returns the value of ShapeAspectStyle attribute. This attribute represents optional link to a shape aspect definition, which points to the part of the geometric representation of the window style, which is used to represent the panel.

Returns: Returns the value of ShapeAspectStyle attribute.

Remarks: DEPRECATION: The attribute is deprecated and will no longer be used.

◆ inFields()

virtual OdResult OdIfc2x3::IfcWindowPanelProperties::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ isKindOf()

virtual bool OdIfc2x3::IfcWindowPanelProperties::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ outFields()

virtual OdResult OdIfc2x3::IfcWindowPanelProperties::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcWindowPanelProperties::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcWindowPanelProperties::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ setFrameDepth()

void OdIfc2x3::IfcWindowPanelProperties::setFrameDepth ( double FrameDepth )

Sets the value of FrameDepth attribute. This attribute represents depth of panel frame, measured from front face to back face horizontally (i.e. perpendicular to the window (elevation) plane.

Parameters

FrameDepth [in] Frame depth to set.

◆ setFrameThickness()

void OdIfc2x3::IfcWindowPanelProperties::setFrameThickness ( double FrameThickness )

Sets the value of FrameThickness attribute. This attribute represents width of panel frame, measured from inside of panel (at glazing) to outside of panel (at lining), i.e. parallel to the window (elevation) plane.

Parameters

FrameThickness [in] Frame thickness to set.

◆ setOperationType()

void OdIfc2x3::IfcWindowPanelProperties::setOperationType ( IfcWindowPanelOperationEnum OperationType )

Sets the value of OperationType attribute. This attribute represents types of window panel operations. Also used to assign standard symbolic presentations according to national building standards.

Parameters

OperationType [in] Operation type to set.

◆ setPanelPosition()

void OdIfc2x3::IfcWindowPanelProperties::setPanelPosition ( IfcWindowPanelPositionEnum PanelPosition )

Sets the value of PanelPosition attribute. This attribute represents position of this panel within the overall window style.

Parameters

PanelPosition [in] Panel position to set.

◆ setShapeAspectStyle()

void OdIfc2x3::IfcWindowPanelProperties::setShapeAspectStyle ( const OdDAIObjectId & ShapeAspectStyle )

Sets the value of ShapeAspectStyle attribute. This attribute represents optional link to a shape aspect definition, which points to the part of the geometric representation of the window style, which is used to represent the panel.

Parameters

ShapeAspectStyle [in] Shape aspect style to set.

Remarks: DEPRECATION: The attribute is deprecated and will no longer be used.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcWindowPanelProperties::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcWindowPanelProperties::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcWindowPanelProperties::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcWindowPanelProperties::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcWindowPanelProperties::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcPropertySetDefinition.

Member Data Documentation

◆ m_FrameDepth

IfcPositiveLengthMeasure OdIfc2x3::IfcWindowPanelProperties::m_FrameDepth

protected

Definition at line 288 of file Ifc2x3/IfcWindowPanelPropertiesAutoImpl.h.

◆ m_FrameThickness

IfcPositiveLengthMeasure OdIfc2x3::IfcWindowPanelProperties::m_FrameThickness

protected

Definition at line 289 of file Ifc2x3/IfcWindowPanelPropertiesAutoImpl.h.

◆ m_OperationType

OdDAI::Enum OdIfc2x3::IfcWindowPanelProperties::m_OperationType

protected

Definition at line 286 of file Ifc2x3/IfcWindowPanelPropertiesAutoImpl.h.

◆ m_PanelPosition

OdDAI::Enum OdIfc2x3::IfcWindowPanelProperties::m_PanelPosition

protected

Definition at line 287 of file Ifc2x3/IfcWindowPanelPropertiesAutoImpl.h.

◆ m_ShapeAspectStyle

OdDAIObjectId OdIfc2x3::IfcWindowPanelProperties::m_ShapeAspectStyle

protected

Definition at line 290 of file Ifc2x3/IfcWindowPanelPropertiesAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcWindowPanelPropertiesAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcWindowPanelProperties()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getFrameDepth()

◆ getFrameThickness()

◆ getInstanceType()

◆ getOperationType()

◆ getPanelPosition()

◆ getShapeAspectStyle()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setFrameDepth()

◆ setFrameThickness()

◆ setOperationType()

◆ setPanelPosition()

◆ setShapeAspectStyle()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_FrameDepth

◆ m_FrameThickness

◆ m_OperationType

◆ m_PanelPosition

◆ m_ShapeAspectStyle
