#include <IfcCommunicationsApplianceAutoImpl.h>

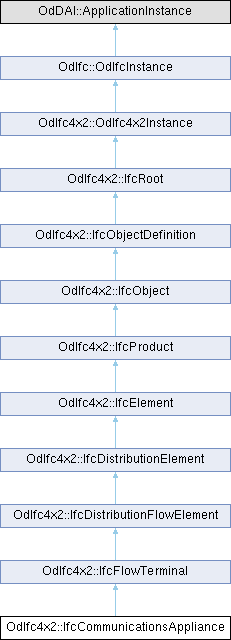

Inheritance diagram for OdIfc4x2::IfcCommunicationsAppliance:

Public Member Functions
IfcCommunicationsApplianceTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcCommunicationsApplianceTypeEnum PredefinedType)

	IfcCommunicationsAppliance ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcDistributionFlowElement
void	getInvHasControlElements (OdDAIObjectIds &HasControlElements) const

Public Member Functions inherited from OdIfc4x2::IfcDistributionElement
void	getInvHasPorts (OdDAIObjectIds &HasPorts) const

Public Member Functions inherited from OdIfc4x2::IfcElement
const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

void	getInvFillsVoids (OdDAIObjectIds &FillsVoids) const

void	getInvConnectedTo (OdDAIObjectIds &ConnectedTo) const

void	getInvIsInterferedByElements (OdDAIObjectIds &IsInterferedByElements) const

void	getInvInterferesElements (OdDAIObjectIds &InterferesElements) const

void	getInvHasProjections (OdDAIObjectIds &HasProjections) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

void	getInvHasOpenings (OdDAIObjectIds &HasOpenings) const

void	getInvIsConnectionRealization (OdDAIObjectIds &IsConnectionRealization) const

void	getInvProvidesBoundaries (OdDAIObjectIds &ProvidesBoundaries) const

void	getInvConnectedFrom (OdDAIObjectIds &ConnectedFrom) const

void	getInvContainedInStructure (OdDAIObjectIds &ContainedInStructure) const

void	getInvHasCoverings (OdDAIObjectIds &HasCoverings) const

	IfcElement ()

Public Member Functions inherited from OdIfc4x2::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PredefinedType

Protected Attributes inherited from OdIfc4x2::IfcElement
OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc4x2::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc4x2::IfcDistributionFlowElement
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

A communications appliance transmits and receives electronic or digital information as data or sound. Communication appliances can be fixed in place or can be moved from one space to another. Communication appliances require an electrical supply that can be supplied either by an electrical circuit or provided from a local battery source.

Material Set - This concept can be applied to the following resources: Casing - Material from which the casing is constructed.
Object Typing - This concept can be applied to the following resources: IfcCommunicationsApplianceType
Port Nesting - This concept can be applied with the following combinations:

PortName

Flow PredefinedType Power SINK ELECTRICAL Radio SINK SIGNAL Signal SOURCE SIGNAL Power SINK ELECTRICAL Network SINK DATA Device SOURCE CONTROL Display SOURCE COMPUTER Power SINK FAX Phone SINK FAX Power SINK ELECTRICAL Signal SINK MODEM Internet SOURCE MODEM Television SOURCE TV Telephone SOURCE TELEPHONE Power SINK PRINTER Network SINK DATA Phone SINK PRINTER Power SINK REPEATER Input SINK SIGNAL Output SOURCE REPEATER Power SINK ROUTER Uplink SINK ROUTER WiFi SOURCE ROUTER Link#1 SOURCE ROUTER Link#2 SOURCE ROUTER Link#3 SOURCE DATA Link#4 SOURCE ROUTER Link#5 SOURCE DATA Link#6 SOURCE ROUTER Link#7 SOURCE DATA Link#8 SOURCE DATA

Property Sets for Objects - This concept can be applied to the following resources: Pset_CommunicationsApplianceTypeCommon Pset_CommunicationsApplianceTypeAntenna (only applies to ANTENNA) Pset_CommunicationsApplianceTypeAutomaton (only applies to AUTOMATON) Pset_CommunicationsApplianceTypeComputer (only applies to COMPUTER) Pset_CommunicationsApplianceTypeGateway (only applies to GATEWAY) Pset_CommunicationsApplianceTypeIntelligentPeripheral (only applies to INTELLIGENTPERIPHERAL) Pset_CommunicationsApplianceTypeIpNetworkEquipment (only applies to IPNETWORKEQUIPMENT) Pset_CommunicationsApplianceTypeModem (only applies to MODEM) Pset_DataTransmissionUnit (only applies to MODEM) Pset_CommunicationsApplianceTypeOpticalLineTerminal (only applies to OPTICALLINETERMINAL) Pset_CommunicationsApplianceTypeOpticalNetworkUnit (only applies to OPTICALNETWORKUNIT) Pset_CommunicationsApplianceTypeTelecommand (only applies to TELECOMMAND) Pset_CommunicationsApplianceTypeTelephonyExchange (only applies to TELEPHONYEXCHANGE) Pset_RailwayBalise (only applies to TRANSPONDER) Pset_CommunicationsApplianceTypeTransportEquipment (only applies to TRANSPORTEQUIPMENT) Pset_TransportEquipmentOTN (only applies to TRANSPORTEQUIPMENT)
Quantity Sets - This concept can be applied to the following resources: Qto_CommunicationsApplianceBaseQuantities
Property Sets for Performance - This concept can be applied to the following resources: Pset_CommunicationsAppliancePHistory Pset_IpNetworkEquipmentPHistory (only applies to IPNETWORKEQUIPMENT)

Definition at line 115 of file Ifc4x2/IfcCommunicationsApplianceAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcCommunicationsAppliance()

OdIfc4x2::IfcCommunicationsAppliance::IfcCommunicationsAppliance ( )

Default constructor for the IfcCommunicationsAppliance class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcCommunicationsAppliance::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcCommunicationsAppliance::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcDistributionFlowElement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcCommunicationsAppliance::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcFlowTerminal.

◆ getPredefinedType()

IfcCommunicationsApplianceTypeEnum OdIfc4x2::IfcCommunicationsAppliance::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents a list of types to further identify the object. Some property sets can be specifically applicable to one of these types.

Returns: Returns the value of PredefinedType attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcCommunicationsAppliance::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcDistributionFlowElement.

◆ isKindOf()

virtual bool OdIfc4x2::IfcCommunicationsAppliance::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcFlowTerminal.

◆ outFields()

virtual OdResult OdIfc4x2::IfcCommunicationsAppliance::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcDistributionFlowElement.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcCommunicationsAppliance::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcElement.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcCommunicationsAppliance::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcDistributionFlowElement.

◆ setPredefinedType()

void OdIfc4x2::IfcCommunicationsAppliance::setPredefinedType ( IfcCommunicationsApplianceTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents a list of types to further identify the object. Some property sets can be specifically applicable to one of these types.

Parameters

PredefinedType [in] PredefinedType attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcCommunicationsAppliance::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcDistributionFlowElement.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcCommunicationsAppliance::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcDistributionFlowElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcCommunicationsAppliance::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcFlowTerminal.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcCommunicationsAppliance::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcDistributionFlowElement.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcCommunicationsAppliance::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcDistributionFlowElement.

Member Data Documentation

◆ m_PredefinedType

OdDAI::Enum OdIfc4x2::IfcCommunicationsAppliance::m_PredefinedType

protected

Definition at line 256 of file Ifc4x2/IfcCommunicationsApplianceAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcCommunicationsApplianceAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcCommunicationsAppliance()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getPredefinedType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setPredefinedType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_PredefinedType
