#include <BcfElement.h>

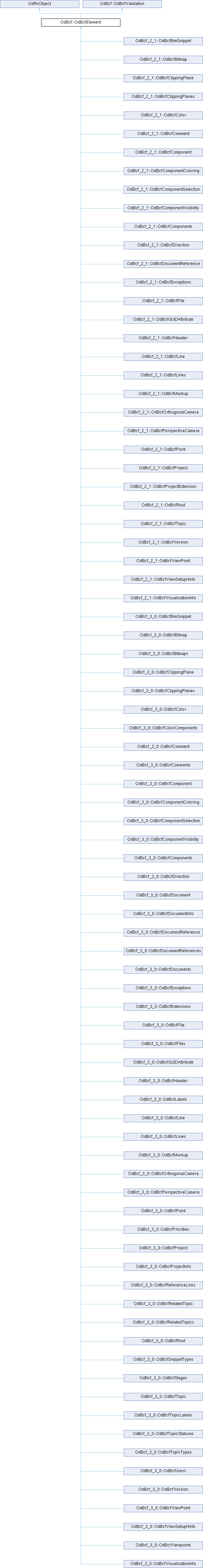

Inheritance diagram for OdBcf::OdBcfElement:

Public Member Functions
	ODRX_DECLARE_MEMBERS (OdBcfElement)

virtual OdResult	inFields (TiXmlElement *pParent)=0

virtual OdResult	outFields (TiXmlElement *pParent) const =0

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	queryX (const OdRxClass *pClass) const

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual OdRxClass *	isA () const

virtual void	addRef ()=0

virtual void	release ()=0

virtual long	numRefs () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual void	copyFrom (const OdRxObject *pSource)

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Public Member Functions inherited from OdBcf::OdBcfValidation
	OdBcfValidation ()

bool	validate () const

void	disableValidation (bool validationDisabled)

Additional Inherited Members
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Protected Member Functions inherited from OdBcf::OdBcfValidation
virtual bool	validateData () const =0

Protected Attributes inherited from OdBcf::OdBcfValidation
bool	m_validationDisabled

Detailed Description

An abstract class that provides the interface for storing and operating different value of BCF data types.

Definition at line 40 of file BcfElement.h.

Member Function Documentation

◆ inFields()

virtual OdResult OdBcf::OdBcfElement::inFields ( TiXmlElement * pParent )

pure virtual

Reads XML data into ODA data structures.

Parameters

pParent [in] A pointer to the parent element of the data structure.

Returns: eOk if data was successfully read; otherwise, the method returns an appropriate error code.

Implemented in OdBcf_2_1::OdBcfBimSnippet, OdBcf_2_1::OdBcfBitmap, OdBcf_2_1::OdBcfClippingPlane, OdBcf_2_1::OdBcfClippingPlanes, OdBcf_2_1::OdBcfColor, OdBcf_2_1::OdBcfComment, OdBcf_2_1::OdBcfComponent, OdBcf_2_1::OdBcfComponentColoring, OdBcf_2_1::OdBcfComponents, OdBcf_2_1::OdBcfComponentSelection, OdBcf_2_1::OdBcfComponentVisibility, OdBcf_2_1::OdBcfDirection, OdBcf_2_1::OdBcfDocumentReference, OdBcf_2_1::OdBcfExceptions, OdBcf_2_1::OdBcfFile, OdBcf_2_1::OdBcfGUIDAttribute, OdBcf_2_1::OdBcfHeader, OdBcf_2_1::OdBcfLine, OdBcf_2_1::OdBcfLines, OdBcf_2_1::OdBcfMarkup, OdBcf_2_1::OdBcfOrthogonalCamera, OdBcf_2_1::OdBcfPerspectiveCamera, OdBcf_2_1::OdBcfPoint, OdBcf_2_1::OdBcfProject, OdBcf_2_1::OdBcfProjectExtension, OdBcf_2_1::OdBcfRoot, OdBcf_2_1::OdBcfTopic, OdBcf_2_1::OdBcfVersion, OdBcf_2_1::OdBcfViewPoint, OdBcf_2_1::OdBcfViewSetupHints, OdBcf_2_1::OdBcfVisualizationInfo, OdBcf_3_0::OdBcfBimSnippet, OdBcf_3_0::OdBcfBitmap, OdBcf_3_0::OdBcfBitmaps, OdBcf_3_0::OdBcfClippingPlane, OdBcf_3_0::OdBcfClippingPlanes, OdBcf_3_0::OdBcfColor, OdBcf_3_0::OdBcfColorComponents, OdBcf_3_0::OdBcfComment, OdBcf_3_0::OdBcfComments, OdBcf_3_0::OdBcfComponent, OdBcf_3_0::OdBcfComponentColoring, OdBcf_3_0::OdBcfComponents, OdBcf_3_0::OdBcfComponentSelection, OdBcf_3_0::OdBcfComponentVisibility, OdBcf_3_0::OdBcfDirection, OdBcf_3_0::OdBcfDocument, OdBcf_3_0::OdBcfDocumentInfo, OdBcf_3_0::OdBcfDocumentReference, OdBcf_3_0::OdBcfDocumentReferences, OdBcf_3_0::OdBcfDocuments, OdBcf_3_0::OdBcfExceptions, OdBcf_3_0::OdBcfExtensions, OdBcf_3_0::OdBcfFile, OdBcf_3_0::OdBcfFiles, OdBcf_3_0::OdBcfGUIDAttribute, OdBcf_3_0::OdBcfHeader, OdBcf_3_0::OdBcfLabels, OdBcf_3_0::OdBcfLine, OdBcf_3_0::OdBcfLines, OdBcf_3_0::OdBcfMarkup, OdBcf_3_0::OdBcfOrthogonalCamera, OdBcf_3_0::OdBcfPerspectiveCamera, OdBcf_3_0::OdBcfPoint, OdBcf_3_0::OdBcfPriorities, OdBcf_3_0::OdBcfProject, OdBcf_3_0::OdBcfProjectInfo, OdBcf_3_0::OdBcfReferenceLinks, OdBcf_3_0::OdBcfRelatedTopic, OdBcf_3_0::OdBcfRelatedTopics, OdBcf_3_0::OdBcfRoot, OdBcf_3_0::OdBcfSnippetTypes, OdBcf_3_0::OdBcfStages, OdBcf_3_0::OdBcfTopic, OdBcf_3_0::OdBcfTopicLabels, OdBcf_3_0::OdBcfTopicStatuses, OdBcf_3_0::OdBcfTopicTypes, OdBcf_3_0::OdBcfUsers, OdBcf_3_0::OdBcfVersion, OdBcf_3_0::OdBcfViewPoint, OdBcf_3_0::OdBcfViewpoints, OdBcf_3_0::OdBcfViewSetupHints, and OdBcf_3_0::OdBcfVisualizationInfo.

◆ ODRX_DECLARE_MEMBERS()

OdBcf::OdBcfElement::ODRX_DECLARE_MEMBERS ( OdBcfElement )

◆ outFields()

virtual OdResult OdBcf::OdBcfElement::outFields ( TiXmlElement * pParent ) const

pure virtual

Writes data into XML structures.
