#include <IfcBoundingBoxAutoImpl.h>

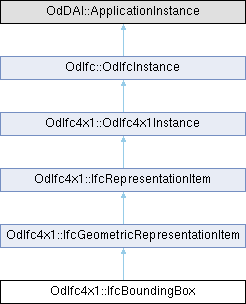

Inheritance diagram for OdIfc4x1::IfcBoundingBox:

Public Member Functions
const OdDAIObjectId &	getCorner () const

void	setCorner (const OdDAIObjectId &Corner)

double	getXDim () const

void	setXDim (double XDim)

double	getYDim () const

void	setYDim (double YDim)

double	getZDim () const

void	setZDim (double ZDim)

	IfcBoundingBox ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Corner

IfcPositiveLengthMeasure	m_XDim

IfcPositiveLengthMeasure	m_YDim

IfcPositiveLengthMeasure	m_ZDim

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcBoundingBox defines an orthogonal box oriented parallel to the axes of the object coordinate system in which it is defined.

Details - It is defined by a Corner being a three-dimensional Cartesian point and three length measures defining the X, Y and Z parameters of the box in the direction of the positive axes.

As shown on the image above, the IfcBoundingBox is defined with its own location which can be used to place the IfcBoundingBox relative to the geometric coordinate system. The IfcBoundingBox is defined by the lower left corner (Corner) and the upper right corner (XDim, YDim, ZDim measured within the parent co-ordinate system).

Definition at line 51 of file Ifc4x1/IfcBoundingBoxAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcBoundingBox()

OdIfc4x1::IfcBoundingBox::IfcBoundingBox ( )

Default constructor for the IfcBoundingBox class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcBoundingBox::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcBoundingBox::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcRepresentationItem.

◆ getCorner()

const OdDAIObjectId & OdIfc4x1::IfcBoundingBox::getCorner ( ) const

Returns the value of Corner attribute. This attribute represents location of the bottom left corner (having the minimum values).

Returns: Returns the value of Corner attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcBoundingBox::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcGeometricRepresentationItem.

◆ getXDim()

double OdIfc4x1::IfcBoundingBox::getXDim ( ) const

Returns the value of XDim attribute. This attribute represents length of the bounding box that is measured along the edge parallel to the X Axis.

Returns: Returns the value of XDim attribute.

◆ getYDim()

double OdIfc4x1::IfcBoundingBox::getYDim ( ) const

Returns the value of YDim attribute. This attribute represents width of the bounding box that is measured along the edge parallel to the Y Axis.

Returns: Returns the value of YDim attribute.

◆ getZDim()

double OdIfc4x1::IfcBoundingBox::getZDim ( ) const

Returns the value of ZDim attribute. This attribute represents height of the bounding box that is measured along the edge parallel to the Z Axis.

Returns: Returns the value of ZDim attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcBoundingBox::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcRepresentationItem.

◆ isKindOf()

virtual bool OdIfc4x1::IfcBoundingBox::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcGeometricRepresentationItem.

◆ outFields()

virtual OdResult OdIfc4x1::IfcBoundingBox::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcRepresentationItem.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcBoundingBox::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcBoundingBox::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcRepresentationItem.

◆ setCorner()

void OdIfc4x1::IfcBoundingBox::setCorner ( const OdDAIObjectId & Corner )

Sets the value of Corner attribute. This attribute represents location of the bottom left corner (having the minimum values).

Parameters

Corner [in] Corner attribute to set.

◆ setXDim()

void OdIfc4x1::IfcBoundingBox::setXDim ( double XDim )

Sets the value of XDim attribute. This attribute represents length of the bounding box that is measured along the edge parallel to the X Axis.

Parameters

XDim	[in] XDim attribute to set.

◆ setYDim()

void OdIfc4x1::IfcBoundingBox::setYDim ( double YDim )

Sets the value of YDim attribute. This attribute represents width of the bounding box that is measured along the edge parallel to the Y Axis.

Parameters

YDim	[in] YDim attribute to set.

◆ setZDim()

void OdIfc4x1::IfcBoundingBox::setZDim ( double ZDim )

Sets the value of ZDim attribute. This attribute represents height of the bounding box that is measured along the edge parallel to the Z Axis.

Parameters

ZDim	[in] ZDim attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcBoundingBox::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcRepresentationItem.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcBoundingBox::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcRepresentationItem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcBoundingBox::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcGeometricRepresentationItem.

◆ unsetAttr() [1/2]

virtual void OdIfc4x1::IfcBoundingBox::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x1::IfcRepresentationItem.

◆ unsetAttr() [2/2]

virtual void OdIfc4x1::IfcBoundingBox::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x1::IfcRepresentationItem.

Member Data Documentation

◆ m_Corner

OdDAIObjectId OdIfc4x1::IfcBoundingBox::m_Corner

protected

Definition at line 235 of file Ifc4x1/IfcBoundingBoxAutoImpl.h.

◆ m_XDim

IfcPositiveLengthMeasure OdIfc4x1::IfcBoundingBox::m_XDim

protected

Definition at line 236 of file Ifc4x1/IfcBoundingBoxAutoImpl.h.

◆ m_YDim

IfcPositiveLengthMeasure OdIfc4x1::IfcBoundingBox::m_YDim

protected

Definition at line 237 of file Ifc4x1/IfcBoundingBoxAutoImpl.h.

◆ m_ZDim

IfcPositiveLengthMeasure OdIfc4x1::IfcBoundingBox::m_ZDim

protected

Definition at line 238 of file Ifc4x1/IfcBoundingBoxAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x1/IfcBoundingBoxAutoImpl.h
