#include <IfcStructuralActivityAutoImpl.h>

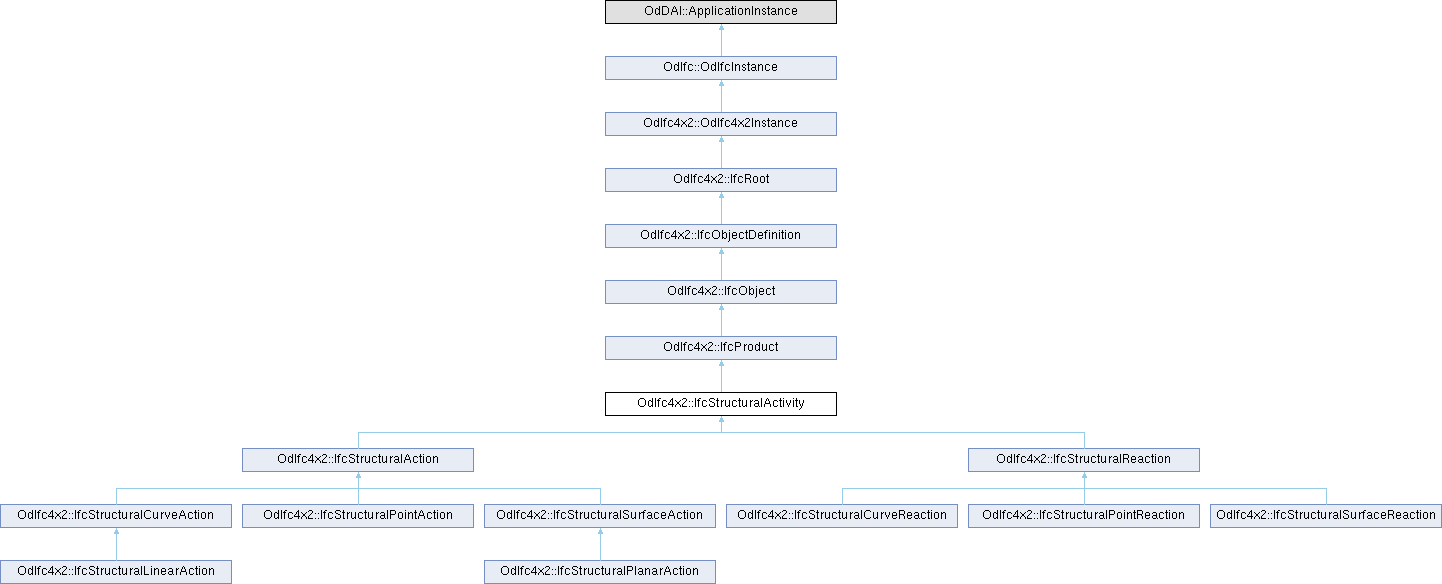

Inheritance diagram for OdIfc4x2::IfcStructuralActivity:

Public Member Functions
const OdDAIObjectId &	getAppliedLoad () const

void	setAppliedLoad (const OdDAIObjectId &AppliedLoad)

IfcGlobalOrLocalEnum	getGlobalOrLocal () const

void	setGlobalOrLocal (IfcGlobalOrLocalEnum GlobalOrLocal)

void	getInvAssignedToStructuralItem (OdDAIObjectIds &AssignedToStructuralItem) const

	IfcStructuralActivity ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_AppliedLoad

OdDAI::Enum	m_GlobalOrLocal

Protected Attributes inherited from OdIfc4x2::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcRelConnectsStructuralActivity

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The abstract entity IfcStructuralActivity combines the definition of actions (such as forces, displacements, etc.) and reactions (support reactions, internal forces, deflections, etc.) which are specified by using the basic load definitions from the IfcStructuralLoadResource.

Coordinate Systems - The following coordinate systems are distinguished: The so-called global coordinate system is the coordinate system shared by all items and activities which are grouped in a common IfcStructuralAnalysisModel. This coordinate system is established by SELF\IfcProduct.ObjectPlacement. (This coordinate system is not necessarily the same as the IfcProject's world coordinate system.) The so-called local coordinate system is a coordinate system local to a structural item. This coordinate system is established by a Representation (attribute inherited from IfcProduct) in conjunction with further use definitions and attributes of subtypes of IfcStructuralItem.

Representation items in topology representations are always given within the ObjectPlacement, i.e. in so-called global coordinates (global with respect to the IfcStructuralAnalysisModel to which this item belongs). The usage of local coordinate systems is further defined in subtypes.

Topology Use Definitions - Instances of IfcStructuralItem have a topology representation. It includes a placement and a product representation. The IfcProductRepresentation is given by an item in a Representation of type IfcTopologyRepresentation.
Local Placement - The local placement for IfcStructuralItem is defined in its supertype IfcProduct. It is defined by the IfcLocalPlacement, which establishes a global coordinate system which is common to all items and activities in an IfcStructuralAnalysisModel.
Topology Representation - Instances of IfcStructuralItem have a topology representation given by an instance of a subtype of IfcTopologicalRepresentationItem, which should be the single item of IfcTopologyRepresentation.Items. Depending on the dimensionality of the structural item, one of the following types of toplogical representation items is used:

Point connections are represented by an IfcVertexPoint with an underlying IfcCartesianPoint. The Cartesian point is the reference point of the connection in the so-called global coordinate system. The following labels are used in the IfcTopologyRepresentation: RepresentationIdentifier: 'Reference' RepresentationType: 'Vertex'
Curve members and curve connections can either be represented by an IfcOrientedEdge, IfcEdgeCurve, or IfcEdge. The curve to which the IfcEdgeCurve (or an IfcOrientedEdge's underlying IfcEdgeCurve) refers to is the reference curve of the structural item in the global coordinate system. Start and end vertex of the edge is _IfcVertexPoint_s with underlying _IfcCartesianPoint_s. The following labels are used in the IfcTopologyRepresentation: RepresentationIdentifier: 'Reference' RepresentationType: 'Edge' Surface members and surface connections is represented by an IfcFaceSurface. The underlying surface defines the reference surface of the structural surface item in the global coordiante system. All edges in the bounds of the face conform to the rules for edge representations of structural curve item. The following labels are used in the IfcTopologyRepresentation: RepresentationIdentifier: 'Reference' RepresentationType: 'Face'

The reference point, reference curve, or reference surface partially or completely defines the local coordinate system of the represented structural item according to the following rules. In all cases, The local x,y,z directions form a right-handed Cartesian coordinate system.

Structural point items

The reference point in the representation is the origin of the local coordinate system of the structural item. The axes of the local coordinate system are either parallel with and directed like the so-called global coordinate axes, or are oriented according to definitions at the respective subtype of IfcStructuralItem.

Structural curve items

The u parameter origin of the reference curve in the representation is the origin of the local coordinate system of the structural item. The local x axis is parallel with the tangent on the curve and directed like the u parameter direction. The local y and z axes are oriented according to definitions at the respective subtypes of IfcStructuralItem.

Structural surface items

The u,v parameter origin of the reference surface in the representation is the origin of the local coordinate system of the structural item. The local x and y directions follow the tangents on the surface and are in parallel with and directed like u and v respectively. The local z direction is in parallel with and directed like the surface normal.

\changes

IFC4 changes: Type of the inverse attribute AssignedToStructuralItem changed from "IfcRelConnectsStructuralActivity FOR RelatedStructuralActivity" to "SET OF [0:1] IfcRelConnectsStructuralActivity FOR RelatedStructuralActivity"

Definition at line 118 of file Ifc4x2/IfcStructuralActivityAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcStructuralActivity()

OdIfc4x2::IfcStructuralActivity::IfcStructuralActivity ( )

Default constructor for the IfcStructuralActivity class.

Member Function Documentation

◆ getAppliedLoad()

const OdDAIObjectId & OdIfc4x2::IfcStructuralActivity::getAppliedLoad ( ) const

Returns the value of AppliedLoad attribute. This attribute represents load or result resource object which defines the load type, direction, and load values. In case of activities which are variably distributed over curves or surfaces, IfcStructuralLoadConfiguration is used which provides a list of load samples and their locations within the load distribution, measured in local coordinates of the curve or surface on which this activity acts. The contents of this load or result distribution can be further restricted by definitions at subtypes of IfcStructuralActivity.

Returns: Returns the value of AppliedLoad attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcStructuralActivity::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcStructuralActivity::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ getGlobalOrLocal()

IfcGlobalOrLocalEnum OdIfc4x2::IfcStructuralActivity::getGlobalOrLocal ( ) const

Returns the value of GlobalOrLocal attribute. This attribute represents indicates whether the load directions refer to the global coordinate system (global to the analysis model, i.e. as established by IfcStructuralAnalysisModel.SharedPlacement) or to the local coordinate system (local to the activity or connected item, as established by an explicit or implied representation and its parameter space).

Returns: Returns the value of GlobalOrLocal attribute.

Remarks: The informal definition of IfcRepresentationResource.IfcGlobalOrLocalEnum does not distinguish between global coordinate system and world coordinate system. On the other hand, this distinction is necessary in the IfcStructuralAnalysisDomain where the shared global coordinate system of an analysis model not be the same as the project-wide world coordinate system.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcStructuralActivity::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralLinearAction, OdIfc4x2::IfcStructuralPlanarAction, OdIfc4x2::IfcStructuralPointAction, OdIfc4x2::IfcStructuralPointReaction, OdIfc4x2::IfcStructuralReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ getInvAssignedToStructuralItem()

void OdIfc4x2::IfcStructuralActivity::getInvAssignedToStructuralItem ( OdDAIObjectIds & AssignedToStructuralItem ) const

Returns the value of AssignedToStructuralItem attribute. This attribute represents reference to the IfcRelConnectsStructuralActivity relationship by which activities are connected with structural items.

Parameters

AssignedToStructuralItem [out] Receives the value of AssignedToStructuralItem attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcStructuralActivity::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ isKindOf()

virtual bool OdIfc4x2::IfcStructuralActivity::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralLinearAction, OdIfc4x2::IfcStructuralPlanarAction, OdIfc4x2::IfcStructuralPointAction, OdIfc4x2::IfcStructuralPointReaction, OdIfc4x2::IfcStructuralReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ outFields()

virtual OdResult OdIfc4x2::IfcStructuralActivity::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcStructuralActivity::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcStructuralActivity::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ setAppliedLoad()

void OdIfc4x2::IfcStructuralActivity::setAppliedLoad ( const OdDAIObjectId & AppliedLoad )

Sets the value of AppliedLoad attribute. This attribute represents load or result resource object which defines the load type, direction, and load values. In case of activities which are variably distributed over curves or surfaces, IfcStructuralLoadConfiguration is used which provides a list of load samples and their locations within the load distribution, measured in local coordinates of the curve or surface on which this activity acts. The contents of this load or result distribution can be further restricted by definitions at subtypes of IfcStructuralActivity.

Parameters

AppliedLoad [in] AppliedLoad attribute to set.

◆ setGlobalOrLocal()

void OdIfc4x2::IfcStructuralActivity::setGlobalOrLocal ( IfcGlobalOrLocalEnum GlobalOrLocal )

Sets the value of GlobalOrLocal attribute. This attribute represents indicates whether the load directions refer to the global coordinate system (global to the analysis model, i.e. as established by IfcStructuralAnalysisModel.SharedPlacement) or to the local coordinate system (local to the activity or connected item, as established by an explicit or implied representation and its parameter space).

Parameters

GlobalOrLocal [in] GlobalOrLocal attribute to set.

Remarks: The informal definition of IfcRepresentationResource.IfcGlobalOrLocalEnum does not distinguish between global coordinate system and world coordinate system. On the other hand, this distinction is necessary in the IfcStructuralAnalysisDomain where the shared global coordinate system of an analysis model not be the same as the project-wide world coordinate system.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcStructuralActivity::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcStructuralActivity::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcStructuralActivity::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcProduct.

Reimplemented in OdIfc4x2::IfcStructuralAction, OdIfc4x2::IfcStructuralCurveAction, OdIfc4x2::IfcStructuralCurveReaction, OdIfc4x2::IfcStructuralLinearAction, OdIfc4x2::IfcStructuralPlanarAction, OdIfc4x2::IfcStructuralPointAction, OdIfc4x2::IfcStructuralPointReaction, OdIfc4x2::IfcStructuralReaction, OdIfc4x2::IfcStructuralSurfaceAction, and OdIfc4x2::IfcStructuralSurfaceReaction.
