#include <IfcMaterialDefinitionAutoImpl.h>

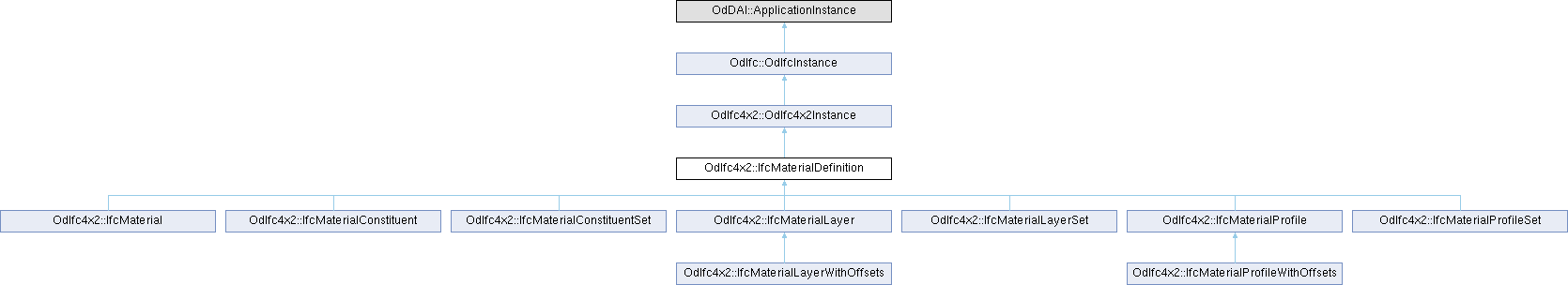

Inheritance diagram for OdIfc4x2::IfcMaterialDefinition:

Public Member Functions
void	getInvAssociatedTo (OdDAIObjectIds &AssociatedTo) const

void	getInvHasExternalReferences (OdDAIObjectIds &HasExternalReferences) const

void	getInvHasProperties (OdDAIObjectIds &HasProperties) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Friends
class	IfcRelAssociatesMaterial

class	IfcExternalReferenceRelationship

class	IfcMaterialProperties

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcMaterialDefinition is a general supertype for all material related information items in IFC that have common material related properties that can include association of material with some shape parameters or assignments to identified parts of a component.

There are three ways of assigning materials to a single component or multiple components; they are characterized as: By layer - assigning a material to a layer with constant thickness By profile - assigning a material to a profile with a constant of varying shape along an extrusion By constituents - assigning a material to an identified part of a component shape; the identification is by a keyword rather than by a shape parameter

Each instantiable subtype of IfcMaterialDefinition can have material properties assigned, or have an external classification of its definition. It can be assigned to either a subtype of IfcElement, or a subtype of IfcElementType by using the objectified relationship IfcRelAssociatesMaterial.

Remarks: This definition may not be instantiated.

Definition at line 56 of file Ifc4x2/IfcMaterialDefinitionAutoImpl.h.

Member Function Documentation

◆ getAttr()

virtual OdRxValue OdIfc4x2::IfcMaterialDefinition::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcMaterial, OdIfc4x2::IfcMaterialConstituent, OdIfc4x2::IfcMaterialConstituentSet, OdIfc4x2::IfcMaterialLayer, OdIfc4x2::IfcMaterialLayerSet, OdIfc4x2::IfcMaterialLayerWithOffsets, OdIfc4x2::IfcMaterialProfile, OdIfc4x2::IfcMaterialProfileSet, and OdIfc4x2::IfcMaterialProfileWithOffsets.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcMaterialDefinition::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc4x2::IfcMaterial, OdIfc4x2::IfcMaterialConstituent, OdIfc4x2::IfcMaterialConstituentSet, OdIfc4x2::IfcMaterialLayer, OdIfc4x2::IfcMaterialLayerSet, OdIfc4x2::IfcMaterialLayerWithOffsets, OdIfc4x2::IfcMaterialProfile, OdIfc4x2::IfcMaterialProfileSet, and OdIfc4x2::IfcMaterialProfileWithOffsets.

◆ getInvAssociatedTo()

void OdIfc4x2::IfcMaterialDefinition::getInvAssociatedTo ( OdDAIObjectIds & AssociatedTo ) const

Returns the value of AssociatedTo attribute. This attribute represents use of the IfcMaterialDefinition subtypes within the material association of an element occurrence or element type. The association is established by the IfcRelAssociatesMaterial relationship.

Parameters

AssociatedTo [out] Receives the value of AssociatedTo attribute.

◆ getInvHasExternalReferences()

void OdIfc4x2::IfcMaterialDefinition::getInvHasExternalReferences ( OdDAIObjectIds & HasExternalReferences ) const

Returns the value of HasExternalReferences attribute. This attribute represents reference to external references, e.g. library, classification, or document information, that are associated to the material.

Parameters

HasExternalReferences [out] Receives the value of HasExternalReferences attribute.

◆ getInvHasProperties()

void OdIfc4x2::IfcMaterialDefinition::getInvHasProperties ( OdDAIObjectIds & HasProperties ) const

Returns the value of HasProperties attribute. This attribute represents material properties assigned to instances of subtypes of IfcMaterialDefinition.

Parameters

HasProperties [out] Receives the value of HasProperties attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcMaterialDefinition::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x2::IfcMaterial, OdIfc4x2::IfcMaterialConstituent, OdIfc4x2::IfcMaterialConstituentSet, OdIfc4x2::IfcMaterialLayer, OdIfc4x2::IfcMaterialLayerSet, OdIfc4x2::IfcMaterialLayerWithOffsets, OdIfc4x2::IfcMaterialProfile, OdIfc4x2::IfcMaterialProfileSet, and OdIfc4x2::IfcMaterialProfileWithOffsets.

◆ isKindOf()

virtual bool OdIfc4x2::IfcMaterialDefinition::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcMaterial, OdIfc4x2::IfcMaterialConstituent, OdIfc4x2::IfcMaterialConstituentSet, OdIfc4x2::IfcMaterialLayer, OdIfc4x2::IfcMaterialLayerSet, OdIfc4x2::IfcMaterialLayerWithOffsets, OdIfc4x2::IfcMaterialProfile, OdIfc4x2::IfcMaterialProfileSet, and OdIfc4x2::IfcMaterialProfileWithOffsets.

◆ outFields()

virtual OdResult OdIfc4x2::IfcMaterialDefinition::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x2::IfcMaterial, OdIfc4x2::IfcMaterialConstituent, OdIfc4x2::IfcMaterialConstituentSet, OdIfc4x2::IfcMaterialLayer, OdIfc4x2::IfcMaterialLayerSet, OdIfc4x2::IfcMaterialLayerWithOffsets, OdIfc4x2::IfcMaterialProfile, OdIfc4x2::IfcMaterialProfileSet, and OdIfc4x2::IfcMaterialProfileWithOffsets.

◆ putAttr()

virtual bool OdIfc4x2::IfcMaterialDefinition::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcMaterial, OdIfc4x2::IfcMaterialConstituent, OdIfc4x2::IfcMaterialConstituentSet, OdIfc4x2::IfcMaterialLayer, OdIfc4x2::IfcMaterialLayerSet, OdIfc4x2::IfcMaterialLayerWithOffsets, OdIfc4x2::IfcMaterialProfile, OdIfc4x2::IfcMaterialProfileSet, and OdIfc4x2::IfcMaterialProfileWithOffsets.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcMaterialDefinition::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcMaterial, OdIfc4x2::IfcMaterialConstituent, OdIfc4x2::IfcMaterialConstituentSet, OdIfc4x2::IfcMaterialLayer, OdIfc4x2::IfcMaterialLayerSet, OdIfc4x2::IfcMaterialLayerWithOffsets, OdIfc4x2::IfcMaterialProfile, OdIfc4x2::IfcMaterialProfileSet, and OdIfc4x2::IfcMaterialProfileWithOffsets.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcMaterialDefinition::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcMaterial, OdIfc4x2::IfcMaterialConstituent, OdIfc4x2::IfcMaterialConstituentSet, OdIfc4x2::IfcMaterialLayer, OdIfc4x2::IfcMaterialLayerSet, OdIfc4x2::IfcMaterialLayerWithOffsets, OdIfc4x2::IfcMaterialProfile, OdIfc4x2::IfcMaterialProfileSet, and OdIfc4x2::IfcMaterialProfileWithOffsets.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcMaterialDefinition::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcMaterial, OdIfc4x2::IfcMaterialConstituent, OdIfc4x2::IfcMaterialConstituentSet, OdIfc4x2::IfcMaterialLayer, OdIfc4x2::IfcMaterialLayerSet, OdIfc4x2::IfcMaterialLayerWithOffsets, OdIfc4x2::IfcMaterialProfile, OdIfc4x2::IfcMaterialProfileSet, and OdIfc4x2::IfcMaterialProfileWithOffsets.
