#include <IfcQuantityAreaAutoImpl.h>

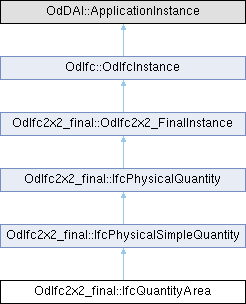

Inheritance diagram for OdIfc2x2_final::IfcQuantityArea:

Public Member Functions
double	getAreaValue () const

void	setAreaValue (double AreaValue)

	IfcQuantityArea ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcPhysicalSimpleQuantity
const OdDAIObjectId &	getUnit () const

void	setUnit (const OdDAIObjectId &Unit)

Public Member Functions inherited from OdIfc2x2_final::IfcPhysicalQuantity
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

void	getInvPartOfComplex (OdDAIObjectIds &PartOfComplex) const

	IfcPhysicalQuantity ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
double	m_AreaValue

Protected Attributes inherited from OdIfc2x2_final::IfcPhysicalSimpleQuantity
OdDAIObjectId	m_Unit

Protected Attributes inherited from OdIfc2x2_final::IfcPhysicalQuantity
OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcQuantityArea is a physical quantity that defines a derived area measure to provide an element's physical property. It is normally derived from the physical properties of the element under the specific measure rules specified by a method of measurement.

Example - An opening can have an opening area used to deduct it from the wall surface area. The actual size of the area depends on the method of measurement used.

Definition at line 45 of file Ifc2x2_Final/IfcQuantityAreaAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcQuantityArea()

OdIfc2x2_final::IfcQuantityArea::IfcQuantityArea ( )

Default constructor for the IfcQuantityArea class.

Member Function Documentation

◆ getAreaValue()

double OdIfc2x2_final::IfcQuantityArea::getAreaValue ( ) const

Returns the value of AreaValue attribute. This attribute represents area measure value of this quantity.

Returns: Returns the value of AreaValue attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcQuantityArea::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcQuantityArea::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcQuantityArea::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcQuantityArea::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcQuantityArea::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcQuantityArea::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcQuantityArea::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcQuantityArea::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ setAreaValue()

void OdIfc2x2_final::IfcQuantityArea::setAreaValue ( double AreaValue )

Sets the value of AreaValue attribute. This attribute represents area measure value of this quantity.

Parameters

AreaValue [in] Area value to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcQuantityArea::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcQuantityArea::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcQuantityArea::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ unsetAttr() [1/2]

virtual void OdIfc2x2_final::IfcQuantityArea::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

◆ unsetAttr() [2/2]

virtual void OdIfc2x2_final::IfcQuantityArea::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x2_final::IfcPhysicalSimpleQuantity.

Member Data Documentation

◆ m_AreaValue

double OdIfc2x2_final::IfcQuantityArea::m_AreaValue

protected

Definition at line 184 of file Ifc2x2_Final/IfcQuantityAreaAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x2_Final/IfcQuantityAreaAutoImpl.h
