#include <DbBaseHostAppServices.h>

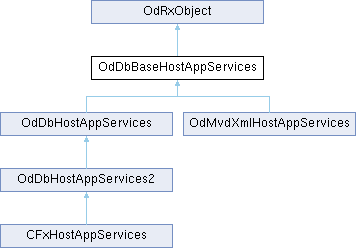

Inheritance diagram for OdDbBaseHostAppServices:

Public Types
enum	RemapFileContext { kDrawingOpen = 0 , kXrefResolution = 1 , kRasterResolution = 2 }

enum	FindFileHint { kDefault = 0 , kFontFile = 1 , kCompiledShapeFile = 2 , kTrueTypeFontFile = 3 , kEmbeddedImageFile = 4 , kXRefDrawing = 5 , kPatternFile = 6 , kTXApplication = 7 , kFontMapFile = 8 , kUnderlayFile = 9 , kTextureMapFile = 10 , kPhotometricWebFile = 11 , kAssetLibXMLFile = 12 , kTemplateFile = 13 , kSchemaFile = 14 }

enum	GsBitmapDeviceFlags { kUseSoftwareHLR = (1 << 0) , kFor2dExportRender = (1 << 1) , kFor2dExportRenderHLR = (1 << 2) , kForThumbnail = (1 << 3) }

Public Member Functions
	ODRX_DECLARE_MEMBERS (OdDbBaseHostAppServices)

	OdDbBaseHostAppServices ()

virtual OdString	findFile (const OdString &filename, OdDbBaseDatabase *pDb=0, FindFileHint hint=kDefault)=0

virtual OdDbHostAppProgressMeter *	newProgressMeter ()

virtual void	releaseProgressMeter (OdDbHostAppProgressMeter *pProgressMeter)

virtual const OdString	program ()=0

virtual const OdString	product ()=0

virtual const OdString	companyName ()=0

virtual ProdIdCode	prodcode ()

virtual const OdString	releaseMajorMinorString ()

virtual int	releaseMajorVersion ()

virtual int	releaseMinorVersion ()

virtual const OdString	versionString ()

virtual void	warning (const OdString &message)

virtual void	warning (const char *warnVisGroup, const OdString &message)

virtual void	warning (OdWarning warningOb)

virtual void	warning (const char *warnVisGroup, OdWarning warningOb)

virtual OdString	getErrorDescription (unsigned int errorCode)

virtual OdString	formatMessage (unsigned int errorCode,...)

virtual OdDbUndoControllerPtr	newUndoController ()

virtual OdStreamBufPtr	newUndoStream ()

virtual void	auditPrintReport (OdAuditInfo *pAuditInfo, const OdString &strLine, int printDest) const

virtual bool	ttfFileNameByDescriptor (const OdTtfDescriptor &description, OdString &filename)

virtual OdString	getAlternateFontName () const =0

virtual OdString	getFontMapFileName () const =0

virtual OdString	getPreferableFont (const OdString &fontName, OdFontType fontType)=0

virtual OdString	getSubstituteFont (const OdString &fontName, OdFontType fontType)=0

virtual OdString	getSubstituteFontByChar (const OdFont &, OdChar, OdDbBaseDatabase *)

virtual bool	getSystemFontFolders (OdStringArray &aDirs)

virtual void	collectFilePathsInDirectory (OdStringArray &res, const OdString &sPath, const OdString &sFilter=L".")

virtual OdString	fileDialog (int flags, const OdString &dialogCaption=OdString::kEmpty, const OdString &defExt=OdString::kEmpty, const OdString &defFilename=OdString::kEmpty, const OdString &filter=OdString::kEmpty)

virtual OdGsDevicePtr	gsBitmapDevice (OdRxObject pViewObj=NULL, OdDbBaseDatabase pDb=NULL, OdUInt32 flags=0)

virtual OdString	getTempPath () const

virtual OdInt16	getMtMode () const

virtual int	numThreads (OdDb::MultiThreadedMode mtMode)

virtual OdResult	brepBuilder (OdBrepBuilder &bbuilder, BrepType bbType)

virtual OdResult	getEnv (const OdString &varName, OdString &value)

virtual OdResult	setEnv (const OdString &varName, const OdString &newValue)

virtual OdString	getAppUserName (Oda::UserNameFormat unFormat=Oda::kUserId)

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	queryX (const OdRxClass *pClass) const

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual OdRxClass *	isA () const

virtual void	addRef ()=0

virtual void	release ()=0

virtual long	numRefs () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual void	copyFrom (const OdRxObject *pSource)

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Additional Inherited Members
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Detailed Description

This class is the base class for platform specific operations within the ODA Platform.

Corresponding C++ library: TD_Db

Definition at line 84 of file DbBaseHostAppServices.h.

Member Enumeration Documentation

◆ FindFileHint

enum OdDbBaseHostAppServices::FindFileHint

Enumerator
kDefault
kFontFile
kCompiledShapeFile
kTrueTypeFontFile
kEmbeddedImageFile
kXRefDrawing
kPatternFile
kTXApplication
kFontMapFile
kUnderlayFile
kTextureMapFile
kPhotometricWebFile
kAssetLibXMLFile
kTemplateFile
kSchemaFile

Definition at line 98 of file DbBaseHostAppServices.h.

◆ GsBitmapDeviceFlags

enum OdDbBaseHostAppServices::GsBitmapDeviceFlags

Enumerator
kUseSoftwareHLR
kFor2dExportRender
kFor2dExportRenderHLR
kForThumbnail

Definition at line 117 of file DbBaseHostAppServices.h.

◆ RemapFileContext

enum OdDbBaseHostAppServices::RemapFileContext

Enumerator
kDrawingOpen
kXrefResolution
kRasterResolution

Definition at line 91 of file DbBaseHostAppServices.h.

Constructor & Destructor Documentation

◆ OdDbBaseHostAppServices()

OdDbBaseHostAppServices::OdDbBaseHostAppServices ( )

Member Function Documentation

◆ auditPrintReport()

virtual void OdDbBaseHostAppServices::auditPrintReport	(	OdAuditInfo *	pAuditInfo,
		const OdString &	strLine,
		int	printDest ) const

virtual

Print the audit report for the specified AuditInfo object.

Parameters

pAuditInfo	[in] Pointer to an OdDbAuditInfo object.
strLine	[in] The string to print.
printDest	[in] Print destination.

Remarks: The default implementation of this function does nothing but return.

Reimplemented in OdDbHostAppServices.

◆ brepBuilder()

virtual OdResult OdDbBaseHostAppServices::brepBuilder	(	OdBrepBuilder &	bbuilder,
		BrepType	bbType )

virtual

Initialize brep builder with product specific implementation. Return eNotImplementedYet by default.

Parameters

brepBuilder	[in] instance of brep builder class.
bbType	[in] type of brep.

Reimplemented in OdDbHostAppServices.

◆ collectFilePathsInDirectory()

virtual void OdDbBaseHostAppServices::collectFilePathsInDirectory	(	OdStringArray &	res,
		const OdString &	sPath,
		const OdString &	sFilter = L"." )

virtual

Collects TrueType font paths.

Parameters

res	[out] Array of full file names of TrueType fonts.
sPath	[in] Array of folders paths with TrueType files.
sFilter	[in] File name filter.

See also: Font Handling

Reimplemented in OdDbHostAppServices.

◆ companyName()

virtual const OdString OdDbBaseHostAppServices::companyName ( )

pure virtual

Returns the name of the client company.

Remarks: This function is typically used for populating "About" information.; The default implementation of this function returns oddbGetLibraryInfo()->getCompanyName().

Implemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ fileDialog()

virtual OdString OdDbBaseHostAppServices::fileDialog	(	int	flags,
		const OdString &	dialogCaption = OdString::kEmpty,
		const OdString &	defExt = OdString::kEmpty,
		const OdString &	defFilename = OdString::kEmpty,
		const OdString &	filter = OdString::kEmpty )

virtual

Prompts the user for a filename, and returns their response.

Parameters

flags	[in] Dialog behavior.
dialogCaption	[in] Dialog caption.
defExt	[in] Default file extension without "."
defFilename	[in] Default filename.
filter	[in] Filter pattern.

Remarks: flags must be one of the following:

Value Description kGfpForOpen 0 For Open. kGfpForSave 1 For Save. kGfpOverwritePrompt 2 Enable overwrite prompt displaying when exist file selected for saving.

This function is intended for the selection of filenames via dialog boxes, although other methods may be used.

Returns "canceled" if the user cancels the request. Returns "unsupported" if the application does not support this user input.

Remarks: The default implementation of this function does nothing but return "unsupported".

Reimplemented in OdDbHostAppServices.

◆ findFile()

virtual OdString OdDbBaseHostAppServices::findFile	(	const OdString &	filename,
		OdDbBaseDatabase *	pDb = 0,
		FindFileHint	hint = kDefault )

pure virtual

Returns the fully qualified path to the specified file.

Parameters

filename	[in] Name of the file to find.
pDb	[in] Pointer to the database context.
hint	[in] Hint that indicates the type of file that is required.

Returns: Returns an empty string if the file is not found.

This function is called by the ODA Platform when the database needs access to a file, such as a font file, a template file, etc.

pDb == 0 specifies that this file search is not related to a database.

If pDb != 0, call pDb->getFilename() to determine the path to the DWG file associated with the database.

The typical search order is as follows:

The filename itself.
The current directory.
The drawing directory (for shx font, image, and xref files).
The directories listed in the ACAD environment variable.
The Windows fonts directory (only for TTF fonts on Windows).

hint must be one of the following:

Value Description Extension kDefault 0 Any file. any kFontFile 1 Can be either SHX or TTF file. SHX or TTF kCompiledShapeFile 2 SHX file. SHX kTrueTypeFontFile 3 TTF file. TTF kEmbeddedImageFile 4 Image file. ISM kXRefDrawing 5 Drawing template file. DWT kPatternFile 6 Pattern file (PAT) PAT kTXApplication 7 ODA Xtension file. TX kFontMapFile 8 FontMap file FMP kUnderlayFile 9 Underlay file kTextureMapFile 10

Remarks: The client application can, in fact return any non-null string, so long as the application can handle that string in OdDbSystemServices::createFile.

Implemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ formatMessage()

virtual OdString OdDbBaseHostAppServices::formatMessage	(	unsigned int	errorCode,
			... )

virtual

Returns a formatted message corresponding to the specified error code(s).

Parameters

errorCode [in] Error code.

Reimplemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ getAlternateFontName()

virtual OdString OdDbBaseHostAppServices::getAlternateFontName ( ) const

pure virtual

Returns the font file to be used when a given font file is not found by the ODA Platform.

See also: Font Handling

Implemented in OdMvdXmlHostAppServices.

◆ getAppUserName()

virtual OdString OdDbBaseHostAppServices::getAppUserName ( Oda::UserNameFormat unFormat = Oda::kUserId )

virtual

Returns user name in the requested format

◆ getEnv()

virtual OdResult OdDbBaseHostAppServices::getEnv	(	const OdString &	varName,
		OdString &	value )

virtual

Get environment variable. If key varName doesn't exist, returns eKeyNotFound.

◆ getErrorDescription()

virtual OdString OdDbBaseHostAppServices::getErrorDescription ( unsigned int errorCode )

virtual

Returns the error description associated with the specified error code.

Parameters

errorCode [in] Error code.

Remarks: The default implementation of this function returns formatMessage(errorCode).

Reimplemented in OdDbHostAppServices.

◆ getFontMapFileName()

virtual OdString OdDbBaseHostAppServices::getFontMapFileName ( ) const

pure virtual

Returns the name of the font mapping file used by the getPreferableFont function.

See also: Font Handling

Remarks: The default implementation of this function does nothing but return an empty string. It will be fully implemented in a future release.

Implemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ getMtMode()

virtual OdInt16 OdDbBaseHostAppServices::getMtMode ( ) const

virtual

MtMode controls if multi-threading is used (bit-coded) See OdDb::MultiThreadedMode

Value Description 0 Multi-threaded file loading and regeneration are disabled. 1 Multi-threaded file loading is enabled. 2 Multi-threaded regeneration is enabled. 3 Multi-threaded file loading and regeneration are enabled.

◆ getPreferableFont()

virtual OdString OdDbBaseHostAppServices::getPreferableFont	(	const OdString &	fontName,
		OdFontType	fontType )

pure virtual

Returns the preferable font name for the specified font name and type.

Parameters

fontName	[in] Font name.
fontType	[in] Font type.

Remarks: This function is called as the first step in the process of resolving a font file. The default implementation tries to locate a font mapping file by calling getFontMapFileName, and substitutes the font name based on the contents of this file.

fontType must be one of the following:

Value Description kFontTypeUnknown 0 Unknown. kFontTypeShx 1 SHX font. kFontTypeTrueType 2 TrueType font. kFontTypeShape 3 Shape file. kFontTypeBig 4 BigFont file.

See also: Font Handling

Implemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ getSubstituteFont()

virtual OdString OdDbBaseHostAppServices::getSubstituteFont	(	const OdString &	fontName,
		OdFontType	fontType )

pure virtual

Returns the font to be used when the specified font is not found.

Parameters

fontName	[in] Font name.
fontType	[in] Font type.

Remarks: fontType must be one of the following:

Value Description kFontTypeUnknown 0 Unknown. kFontTypeShx 1 SHX font. kFontTypeTrueType 2 TrueType font. kFontTypeShape 3 Shape file. kFontTypeBig 4 BigFont file.

The default implementation of this function calls getAlternateFontName for fonts that are not of type kFontTypeShape or kFontTypeBig. When they are, and empty string is returned.

Client code could override this function to perform custom substitution for these types of fonts.

See also: Font Handling

Implemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ getSubstituteFontByChar()

virtual OdString OdDbBaseHostAppServices::getSubstituteFontByChar	(	const OdFont &	,
		OdChar	,
		OdDbBaseDatabase *	)

inlinevirtual

Returns the typeface name of the TTF font which has the character.

Parameters

pFont	[in] Current font.
unicodeChar	[in] Current symbol.
pDb	[in] Pointer to the database context.

See also: Font Handling

Remarks: The default implementation uses Windows API for getting the font.

Reimplemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

Definition at line 498 of file DbBaseHostAppServices.h.

◆ getSystemFontFolders()

virtual bool OdDbBaseHostAppServices::getSystemFontFolders ( OdStringArray & aDirs )

virtual

Collects folders with TrueType fonts.

Parameters

aDirs [out] Array names of folders.

See also: Font Handling

Reimplemented in OdDbHostAppServices.

◆ getTempPath()

virtual OdString OdDbBaseHostAppServices::getTempPath ( ) const

virtual

Returns the path to the temporary files folder.

◆ gsBitmapDevice()

virtual OdGsDevicePtr OdDbBaseHostAppServices::gsBitmapDevice	(	OdRxObject *	pViewObj = NULL,
		OdDbBaseDatabase *	pDb = NULL,
		OdUInt32	flags = 0 )

virtual

Returns a the gsBitmapDevice associated with this HostAppServices object.

Parameters

pViewObj	[in] OdAbstractViewPE compatible object (OdGsView, OdDbViewport or etc.).
pDb	[in] Pointer to the database context.
flags	[in] Bitmap device flags.

Reimplemented in OdDbHostAppServices.

◆ newProgressMeter()

virtual OdDbHostAppProgressMeter * OdDbBaseHostAppServices::newProgressMeter ( )

virtual

Returns an instance of an OdDbHostAppProgressMeter.

Reimplemented in OdDbHostAppServices.

◆ newUndoController()

virtual OdDbUndoControllerPtr OdDbBaseHostAppServices::newUndoController ( )

virtual

Returns an alternate UndoController object for the ODA Platform.

Remarks: The default implementation of this function always returns a null SmartPointer.

Each database requires at most 2 undo controllers (for undo and redo).

Reimplemented in OdDbHostAppServices.

◆ newUndoStream()

virtual OdStreamBufPtr OdDbBaseHostAppServices::newUndoStream ( )

virtual

Returns an alternate stream object for undo/redo operations.

Remarks: The default implementation of this function always returns a null SmartPointer. It may return null in the user application. In this case the default memory based stream will be used. In fact this stream will be used for the current undo/redo step. Other steps can be controlled by OdDbUndoController.

◆ numThreads()

virtual int OdDbBaseHostAppServices::numThreads ( OdDb::MultiThreadedMode mtMode )

virtual

Returns the number of threads for required multi-threaded mode.

◆ ODRX_DECLARE_MEMBERS()

OdDbBaseHostAppServices::ODRX_DECLARE_MEMBERS ( OdDbBaseHostAppServices )

◆ prodcode()

virtual ProdIdCode OdDbBaseHostAppServices::prodcode ( )

virtual

Returns the name of the client product code.

Remarks: This function is typically used for populating "About" information.

prodcode() returns one of the following:

Value Description kProd_ACAD 1 Plain kProd_LT 2 Lite kProd_OEM 3 OEM kProd_OdDb 4 ..

Remarks: The default implementation of this function returns kProd_OEM, and should not be overridden.

Reimplemented in OdDbHostAppServices.

◆ product()

virtual const OdString OdDbBaseHostAppServices::product ( )

pure virtual

Returns the name of the client product.

Remarks: This function is typically used for populating "About" information.; The default implementation of this function returns program().

Implemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ program()

virtual const OdString OdDbBaseHostAppServices::program ( )

pure virtual

Returns the name of the client program.

Remarks: This function is typically used for populating "About" information.; The default implementation of this function returns oddbGetLibraryInfo()->getLibName()

Implemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ releaseMajorMinorString()

virtual const OdString OdDbBaseHostAppServices::releaseMajorMinorString ( )

virtual

Returns the release major and minor version string of the client application.

Remarks: The default implementation of this function returns oddbGetLibraryInfo()->getLibVersion().

Reimplemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ releaseMajorVersion()

virtual int OdDbBaseHostAppServices::releaseMajorVersion ( )

virtual

Returns the release major version of the client application.

Remarks: The default implementation of this function returns TD_MAJOR_VERSION.

Reimplemented in OdDbHostAppServices.

◆ releaseMinorVersion()

virtual int OdDbBaseHostAppServices::releaseMinorVersion ( )

virtual

Returns the release minor version of the client application.

Remarks: The default implementation of this function returns TD_MINOR_VERSION.

Reimplemented in OdDbHostAppServices.

◆ releaseProgressMeter()

virtual void OdDbBaseHostAppServices::releaseProgressMeter ( OdDbHostAppProgressMeter * pProgressMeter )

virtual

Notification function called whenever the specified ProgressMeter object is no longer needed.

Parameters

pProgressMeter [in] Pointer to the ProgressMeter object no longer needed.

Remarks: The default implementation of this function does nothing but return.

Reimplemented in OdDbHostAppServices.

◆ setEnv()

virtual OdResult OdDbBaseHostAppServices::setEnv	(	const OdString &	varName,
		const OdString &	newValue )

virtual

Set environment variable with new value.

◆ ttfFileNameByDescriptor()

virtual bool OdDbBaseHostAppServices::ttfFileNameByDescriptor	(	const OdTtfDescriptor &	description,
		OdString &	filename )

virtual

Locates the TTF or TTC file containing the specified font description.

Parameters

description	[in] Font description.
filename	[out] Receives the name of the TrueType font file.

Returns: Returns true and the filename if and only if the font file was found.

Remarks: The non-Windows builds of this function do nothing but return.

◆ versionString()

virtual const OdString OdDbBaseHostAppServices::versionString ( )

virtual

Returns the release version string of the client application.

Remarks: The default implementation of this function returns oddbGetLibraryInfo()->getLibVersion().

Reimplemented in OdDbHostAppServices, and OdMvdXmlHostAppServices.

◆ warning() [1/4]

virtual void OdDbBaseHostAppServices::warning	(	const char *	warnVisGroup,
		const OdString &	message )

virtual

Displays the specified warning message.

Parameters

warnVisGroup	[in] Group of warning message visibility (always visible if empty).
message	[in] Warning message.

Remarks: This function calls odSystemServices()->warning(message) to display the warning.

◆ warning() [2/4]

virtual void OdDbBaseHostAppServices::warning	(	const char *	warnVisGroup,
		OdWarning	warningOb )

virtual

Displays the specified warning message.

Parameters

warnVisGroup	[in] Group of warning message visibility (always visible if empty).
warningOb	[in] Warning object.

◆ warning() [3/4]

virtual void OdDbBaseHostAppServices::warning ( const OdString & message )

virtual

Displays the specified warning message.

Parameters

message [in] Warning message.

Remarks: This function calls odSystemServices()->warning(message) to display the warning.

◆ warning() [4/4]

virtual void OdDbBaseHostAppServices::warning ( OdWarning warningOb )

virtual

Displays the specified warning message.

Parameters

warningOb [in] Warning object.

The documentation for this class was generated from the following file:

DbBaseHostAppServices.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ FindFileHint

◆ GsBitmapDeviceFlags

◆ RemapFileContext

Constructor & Destructor Documentation

◆ OdDbBaseHostAppServices()

Member Function Documentation

◆ auditPrintReport()

◆ brepBuilder()

◆ collectFilePathsInDirectory()

◆ companyName()

◆ fileDialog()

◆ findFile()

◆ formatMessage()

◆ getAlternateFontName()

◆ getAppUserName()

◆ getEnv()

◆ getErrorDescription()

◆ getFontMapFileName()

◆ getMtMode()

◆ getPreferableFont()

◆ getSubstituteFont()

◆ getSubstituteFontByChar()

◆ getSystemFontFolders()

◆ getTempPath()

◆ gsBitmapDevice()

◆ newProgressMeter()

◆ newUndoController()

◆ newUndoStream()

◆ numThreads()

◆ ODRX_DECLARE_MEMBERS()

◆ prodcode()

◆ product()

◆ program()

◆ releaseMajorMinorString()

◆ releaseMajorVersion()

◆ releaseMinorVersion()

◆ releaseProgressMeter()

◆ setEnv()

◆ ttfFileNameByDescriptor()

◆ versionString()

◆ warning() [1/4]

◆ warning() [2/4]

◆ warning() [3/4]

◆ warning() [4/4]
