#include <IfcAxis2Placement3DAutoImpl.h>

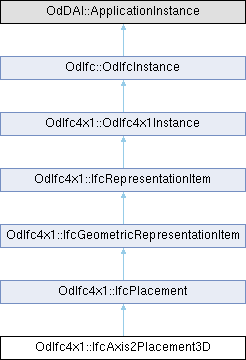

Inheritance diagram for OdIfc4x1::IfcAxis2Placement3D:

Public Member Functions
const OdDAIObjectId &	getAxis () const

void	setAxis (const OdDAIObjectId &Axis)

const OdDAIObjectId &	getRefDirection () const

void	setRefDirection (const OdDAIObjectId &RefDirection)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcPlacement
const OdDAIObjectId &	getLocation () const

void	setLocation (const OdDAIObjectId &Location)

Public Member Functions inherited from OdIfc4x1::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Axis

OdDAIObjectId	m_RefDirection

Protected Attributes inherited from OdIfc4x1::IfcPlacement
OdDAIObjectId	m_Location

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcAxis2Placement3D provides location and orientations to place items in a three-dimensional space.

Details - The attribute Axis defines the Z direction, RefDirection the X direction. The Y direction is derived. If the attribute values for Axis and RefDirection are not given, the placement defaults to P[1] (x-axis) as [1.,0.,0.], P[2] (y-axis) as [0.,1.,0.] and P[3] (z-axis) as [0.,0.,1.].

This instance is defined in terms of a point (inherited from placement supertype) and two (ideally orthogonal) axes. It can be used to locate and orientate a non axi-symmetric object in space and to define a placement coordinate system.

Definition at line 51 of file Ifc4x1/IfcAxis2Placement3DAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcAxis2Placement3D::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcAxis2Placement3D::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ getAxis()

const OdDAIObjectId & OdIfc4x1::IfcAxis2Placement3D::getAxis ( ) const

Returns the value of Axis attribute. This attribute represents the exact direction of the local Z Axis.

Returns: Returns the value of Axis attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcAxis2Placement3D::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ getRefDirection()

const OdDAIObjectId & OdIfc4x1::IfcAxis2Placement3D::getRefDirection ( ) const

Returns the value of RefDirection attribute. This attribute represents the direction used to determine the direction of the local X Axis. If necessary an adjustment is made to maintain orthogonality to the Axis direction. If Axis and/or RefDirection is omitted, these directions are taken from the geometric coordinate system.

Returns: Returns the value of RefDirection attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcAxis2Placement3D::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ isKindOf()

virtual bool OdIfc4x1::IfcAxis2Placement3D::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ outFields()

virtual OdResult OdIfc4x1::IfcAxis2Placement3D::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcAxis2Placement3D::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcAxis2Placement3D::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ setAxis()

void OdIfc4x1::IfcAxis2Placement3D::setAxis ( const OdDAIObjectId & Axis )

Sets the value of Axis attribute. This attribute represents the exact direction of the local Z Axis.

Parameters

Axis	[in] Axis to set.

◆ setRefDirection()

void OdIfc4x1::IfcAxis2Placement3D::setRefDirection ( const OdDAIObjectId & RefDirection )

Sets the value of RefDirection attribute. This attribute represents the direction used to determine the direction of the local X Axis. If necessary an adjustment is made to maintain orthogonality to the Axis direction. If Axis and/or RefDirection is omitted, these directions are taken from the geometric coordinate system.

Parameters

RefDirection [in] RefDirection attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcAxis2Placement3D::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcAxis2Placement3D::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcAxis2Placement3D::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ unsetAttr() [1/2]

virtual void OdIfc4x1::IfcAxis2Placement3D::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x1::IfcPlacement.

◆ unsetAttr() [2/2]

virtual void OdIfc4x1::IfcAxis2Placement3D::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x1::IfcPlacement.

Member Data Documentation

◆ m_Axis

OdDAIObjectId OdIfc4x1::IfcAxis2Placement3D::m_Axis

protected

Definition at line 204 of file Ifc4x1/IfcAxis2Placement3DAutoImpl.h.

◆ m_RefDirection

OdDAIObjectId OdIfc4x1::IfcAxis2Placement3D::m_RefDirection

protected

Definition at line 205 of file Ifc4x1/IfcAxis2Placement3DAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x1/IfcAxis2Placement3DAutoImpl.h
