#include <IfcPhysicalQuantityAutoImpl.h>

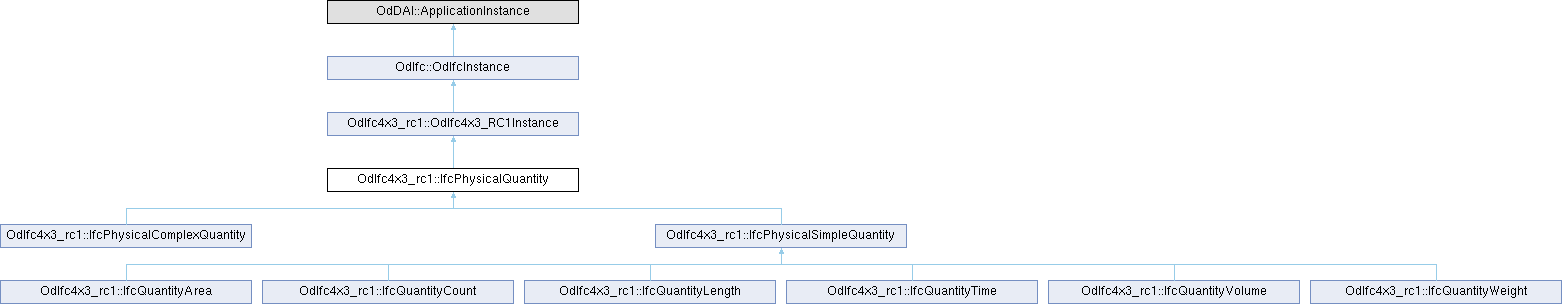

Inheritance diagram for OdIfc4x3_rc1::IfcPhysicalQuantity:

Public Member Functions
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

void	getInvHasExternalReferences (OdDAIObjectIds &HasExternalReferences) const

void	getInvPartOfComplex (OdDAIObjectIds &PartOfComplex) const

	IfcPhysicalQuantity ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_rc1::OdIfc4x3_RC1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcExternalReferenceRelationship

class	IfcPhysicalComplexQuantity

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The physical quantity, IfcPhysicalQuantity, is an abstract entity that holds a complex or simple quantity measure together with a semantic definition of the usage for the single or several measure value.

The Name attribute defines the actual usage or kind of measure. The interpretation of the name label has to be established within the actual exchange context. In addition an informative text can be associated to each quantity by the Description attribute.

Remarks: This definition may not be instantiated.

Definition at line 51 of file Ifc4x3_RC1/IfcPhysicalQuantityAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcPhysicalQuantity()

OdIfc4x3_rc1::IfcPhysicalQuantity::IfcPhysicalQuantity ( )

Default constructor for the IfcPhysicalQuantity class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_rc1::IfcPhysicalQuantity::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_rc1::IfcPhysicalQuantity::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_rc1::IfcPhysicalQuantity::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ getDescription()

const OdAnsiString & OdIfc4x3_rc1::IfcPhysicalQuantity::getDescription ( ) const

Returns the value of Description attribute. This attribute represents further explanation that might be given to the quantity.

Returns: Returns the value of Description attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_rc1::IfcPhysicalQuantity::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ getInvHasExternalReferences()

void OdIfc4x3_rc1::IfcPhysicalQuantity::getInvHasExternalReferences ( OdDAIObjectIds & HasExternalReferences ) const

Returns the value of HasExternalReferences attribute. This attribute represents reference to an external reference, e.g. library, classification, or document information, that is associated to the quantity.

Parameters

HasExternalReferences [out] Receives the value of HasExternalReferences attribute.

◆ getInvPartOfComplex()

void OdIfc4x3_rc1::IfcPhysicalQuantity::getInvPartOfComplex ( OdDAIObjectIds & PartOfComplex ) const

Returns the value of PartOfComplex attribute. This attribute represents reference to a physical complex quantity in which the physical quantity can be contained.

Parameters

PartOfComplex [out] Receives the value of PartOfComplex attribute.

◆ getName()

const OdAnsiString & OdIfc4x3_rc1::IfcPhysicalQuantity::getName ( ) const

Returns the value of Name attribute. This attribute represents name of the element quantity or measure. The name attribute has to be made recognizable by further agreements.

Returns: Returns the value of Name attribute.

◆ inFields()

virtual OdResult OdIfc4x3_rc1::IfcPhysicalQuantity::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ isKindOf()

virtual bool OdIfc4x3_rc1::IfcPhysicalQuantity::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ outFields()

virtual OdResult OdIfc4x3_rc1::IfcPhysicalQuantity::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcPhysicalQuantity::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcPhysicalQuantity::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ setDescription()

void OdIfc4x3_rc1::IfcPhysicalQuantity::setDescription ( const OdAnsiString & Description )

Sets the value of Description attribute. This attribute represents further explanation that might be given to the quantity.

Parameters

Description [in] Description to set.

◆ setName()

void OdIfc4x3_rc1::IfcPhysicalQuantity::setName ( const OdAnsiString & Name )

Sets the value of Name attribute. This attribute represents name of the element quantity or measure. The name attribute has to be made recognizable by further agreements.

Parameters

Name	[in] Name to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcPhysicalQuantity::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcPhysicalQuantity::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_rc1::IfcPhysicalQuantity::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_rc1::IfcPhysicalComplexQuantity, OdIfc4x3_rc1::IfcPhysicalSimpleQuantity, OdIfc4x3_rc1::IfcQuantityArea, OdIfc4x3_rc1::IfcQuantityCount, OdIfc4x3_rc1::IfcQuantityLength, OdIfc4x3_rc1::IfcQuantityTime, OdIfc4x3_rc1::IfcQuantityVolume, and OdIfc4x3_rc1::IfcQuantityWeight.
