#include <IfcStyleModelAutoImpl.h>

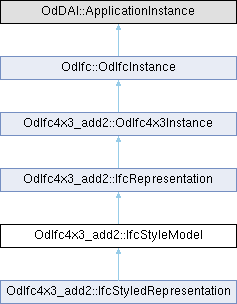

Inheritance diagram for OdIfc4x3_add2::IfcStyleModel:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4x3_add2::IfcRepresentation
const OdDAIObjectId &	getContextOfItems () const

void	setContextOfItems (const OdDAIObjectId &ContextOfItems)

const OdAnsiString &	getRepresentationIdentifier () const

void	setRepresentationIdentifier (const OdAnsiString &RepresentationIdentifier)

const OdAnsiString &	getRepresentationType () const

void	setRepresentationType (const OdAnsiString &RepresentationType)

void	getItems (OdDAIObjectIds &Items) const

OdDAI::SetOfOdDAIObjectId &	items ()

void	getInvRepresentationMap (OdDAIObjectIds &RepresentationMap) const

void	getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const

void	getInvOfProductRepresentation (OdDAIObjectIds &OfProductRepresentation) const

	IfcRepresentation ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x3_add2::IfcRepresentation
OdDAIObjectId	m_ContextOfItems

OdAnsiString	m_RepresentationIdentifier

OdAnsiString	m_RepresentationType

OdDAI::SetOfOdDAIObjectId	m_Items

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcStyleModel represents the concept of a particular presentation style defined for a material (or other characteristic) of a product or a product component within a representation context. This representation context can (but does not have to be) a geometric representation context.

IfcStyleModel can be a style representation (presentation style) of a material (via IfcMaterialDefinitionRepresentation), potentially differentiated for different representation contexts (for example, different material hatching depending on the scale of the target representation context).

Remarks: This definition may not be instantiated.

Definition at line 49 of file Ifc4x3/IfcStyleModelAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcStyleModel::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_add2::IfcRepresentation.

Reimplemented in OdIfc4x3_add2::IfcStyledRepresentation.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcStyleModel::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_add2::IfcRepresentation.

Reimplemented in OdIfc4x3_add2::IfcStyledRepresentation.

◆ isKindOf()

virtual bool OdIfc4x3_add2::IfcStyleModel::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcRepresentation.

Reimplemented in OdIfc4x3_add2::IfcStyledRepresentation.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcStyleModel::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_add2::IfcRepresentation.

Reimplemented in OdIfc4x3_add2::IfcStyledRepresentation.

The documentation for this class was generated from the following file:

Ifc4x3/IfcStyleModelAutoImpl.h
